Product Description
Owl Optical Wavelength Laboratories Kit-Z2-L2Xx Zoom 2 / Laser Owl Optical Wavelength Laboratories Sm Test Kit Zoom 2 (Zo-2) Laser Owl Optical Wavelength Laboratories (Lo-2Xx) New
Oveview:
The Zoom 2 / Laser Owl Optical Wavelength Laboratories Test Kit Is Ideal For Lan Managers
And Installers Who Need To Do Simple Attenuation Tests On Their
Singlemode Networks.
The Zoom 2 (Zeroed Output Optical Meter) Is An
Economical Fiber Optic Power Meter. It Provides Accurate
Testing Of Singlemode Fiber Cables. The 4-Digit 7-Segment
Lcd Displays Power Readings With A Resolution Of 0.01Db.
On-Screen Indicators Display Measurement Units (Dbm, Db,
Uw), As Well As Battery Life. The Zoom 2 Comes Configured
With A 2.5Mm Universal Connector For Connection To St Or Sc
Connectors, As Well As Any Other Fiber Connector With A 2.5Mm
Ferrule.
The Laser Owl Optical Wavelength Laboratories Is A 1310/1550Nm Nist Traceable
Singlemode Light Source. Its Dual Wavelength Outputs Are
Temperature-Stabilized For Accurate Measurements. The
Laser Owl Optical Wavelength Laboratories Has Three Connector Options: St, Sc, Or Fc
Features:
Economical Option For Quick Attenuation And Loss Testing
Singlemode Networks
Easy-To-Read 4-Digit 7-Segment Lcd Display
Store Reference Values For Calibrated Wavelengths
Intuitive 2-Button Interface On Both Units
On-Screen Wavelength, Measurement Units, And Low Battery
Indicator
Nist Traceable

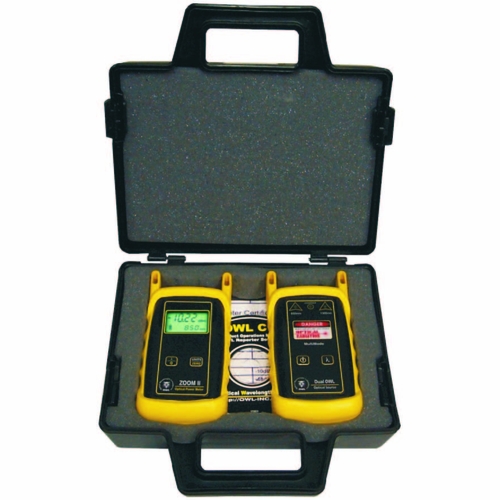

Kit Contents:
Power Meter: Zoom 2
Light Source: Laser Owl
Accessories: Product Manuals
9-Volt Batteries
Nist Certificate
Carrying Case
Protective Rubber BootsRead More
