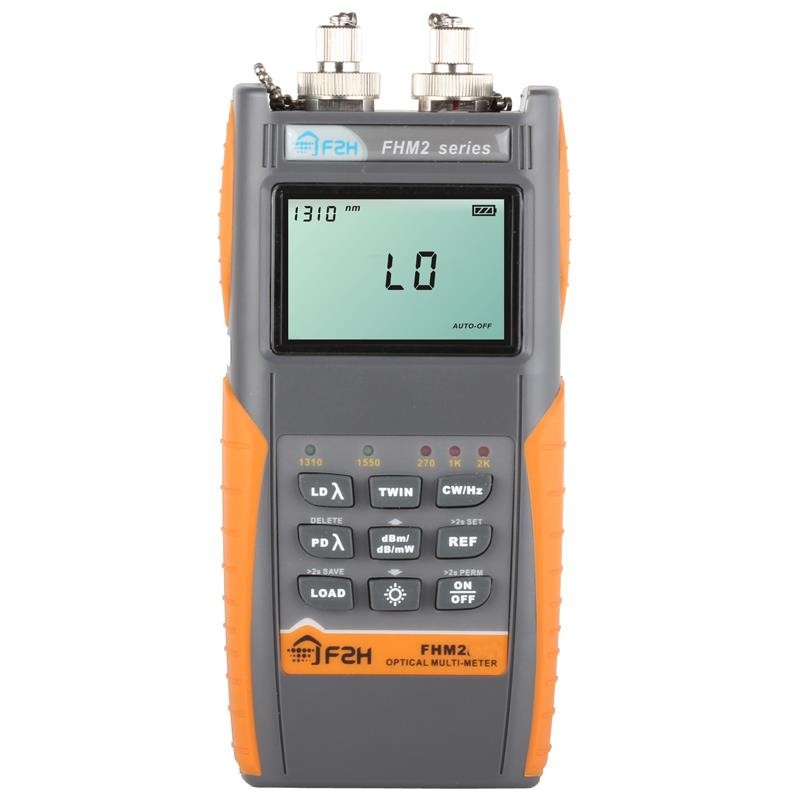

FHM-2B01 OPTICAL POWER METER AND LIGHT SOURCE 1310/1550NM SM COMBINED WITH FCUPC -50 to +26dbm
Available*
Item # 53489825
Model # FHM-2B01
$337.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mtr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Schultz Communications Inc
Fiber Power Meter Light Source Kit
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
FHM-2B01 OPTICAL POWER METER AND LIGHT SOURCE 1310/1550NM SM COMBINED WITH FCUPC NEW -50 to +26dbm Power Meter
Calibration wavelength(nm) 850/1300/1310/1490/1550/1625
Connector FC/UPC
Data storage(items) 999
Ref.Value Yes
Display units dB/dBm/mW/uW
Display precision(dB) 0.01
Accuracy ±5%±1nW
Wavelength recognition 1310/1550/(input power=-40dBm)
Tone detection 270Hz/1KHz/2KHz(input power=-40dBm )
Measuring range(dBm) -50 to +26
Laser Source Output wavelength(nm) 1310/1550 Connector FC/UPC Modulation frequencies 270/1K/2K Hz Output power1 -5dBm±0.5dB Stability long-term(8h)1 ±0.1dB@1310/1550nm Stability short-term(15min)1 ±0.05dB@1310/1550nm Wavelength recognizing code Yes General Specification Auto power off Power supply 2pcs *NiHM 1.2V,2000mAh;AC/DC Adaptor PC interface USB Battery life >100Hours(laser off) Storage temperature -20?~70? Operating temperature -10?~50? Relative humidity <90%(Non-condensing) Dimension(mm) 168L×76W×43H Weight(Gram) 310
Measuring range(dBm)Power Meter Calibration wavelength(nm) 850/1300/1310/1490/1550/1625 Connector FC/UPC Data storage(items) 999 Ref.Value Yes Display units dB/dBm/mW/uW Display precision(dB) 0.01 Accuracy ±5%±1nW Wavelength recognition 1310/1550/(input power=-40dBm) Tone detection 270Hz/1KHz/2KHz(input power=-40dBm ) Measuring range(dBm) -70 to +10
Laser Source Output wavelength(nm) 1310/1550 Connector FC/UPC Modulation frequencies 270/1K/2K Hz Output power1 -5dBm±0.5dB Stability long-term(8h)1 ±0.1dB@1310/1550nm Stability short-term(15min)1 ±0.05dB@1310/1550nm Wavelength recognizing code Yes General Specification Auto power off Power supply 2pcs *NiHM 1.2V,2000mAh;AC/DC Adaptor PC interface USB Battery life >100Hours(laser off) Storage temperature -20?~70? Operating temperature -10?~50? Relative humidity <90%(Non-condensing) Dimension(mm) 168L×76W×43H Weight(Gram) 310
Accessories Standard accessories Main Unit*1, quick user guide*1, AA rechargeable battery*4, carrying case*1, (PD) FC adapter*2, (LD) FC adapter*2, 6V AC/DC adapter*1, cross-type screw driver*1, CD disk*1, USB cord*1, ceramic ferrule*3
Measuring range(dBm) -50 to +26
Laser Source Output wavelength(nm) 1310/1550 Connector FC/UPC Modulation frequencies 270/1K/2K Hz Output power1 -5dBm±0.5dB Stability long-term(8h)1 ±0.1dB@1310/1550nm Stability short-term(15min)1 ±0.05dB@1310/1550nm Wavelength recognizing code Yes General Specification Auto power off Power supply 2pcs *NiHM 1.2V,2000mAh;AC/DC Adaptor PC interface USB Battery life >100Hours(laser off) Storage temperature -20?~70? Operating temperature -10?~50? Relative humidity <90%(Non-condensing) Dimension(mm) 168L×76W×43H Weight(Gram) 310
Measuring range(dBm)Power Meter Calibration wavelength(nm) 850/1300/1310/1490/1550/1625 Connector FC/UPC Data storage(items) 999 Ref.Value Yes Display units dB/dBm/mW/uW Display precision(dB) 0.01 Accuracy ±5%±1nW Wavelength recognition 1310/1550/(input power=-40dBm) Tone detection 270Hz/1KHz/2KHz(input power=-40dBm ) Measuring range(dBm) -70 to +10
Laser Source Output wavelength(nm) 1310/1550 Connector FC/UPC Modulation frequencies 270/1K/2K Hz Output power1 -5dBm±0.5dB Stability long-term(8h)1 ±0.1dB@1310/1550nm Stability short-term(15min)1 ±0.05dB@1310/1550nm Wavelength recognizing code Yes General Specification Auto power off Power supply 2pcs *NiHM 1.2V,2000mAh;AC/DC Adaptor PC interface USB Battery life >100Hours(laser off) Storage temperature -20?~70? Operating temperature -10?~50? Relative humidity <90%(Non-condensing) Dimension(mm) 168L×76W×43H Weight(Gram) 310
Accessories Standard accessories Main Unit*1, quick user guide*1, AA rechargeable battery*4, carrying case*1, (PD) FC adapter*2, (LD) FC adapter*2, 6V AC/DC adapter*1, cross-type screw driver*1, CD disk*1, USB cord*1, ceramic ferrule*3
Measuring range(dBm) -50 to +26
