OWL KIT-FO4B-D285sc Fiber OWL 4 BOLT / Dual OWL 850 SC MM Test Kit (850nm; SC connector) Fiber OWL 4

OWL OPTICAL WAVELENGTH LABORATORIES KIT-FO4B-D285sc Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT / Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 SC MM Test Kit (850nm; SC connector) Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4

OVERVIEW: -Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. -The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard-copy documentation as proof of adherence to standards. -The Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in multimode networks at 850nm. -The Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation (including integrated fiber link length testing), and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, then downloaded to a PC for report generation using our OWL OPTICAL WAVELENGTH LABORATORIES Reporter software. -The Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 fiber optic light source is designed for accurate testing and certification of multimode networks at 850nm. Its output is temperature-stabilized for accurate measurements.

FEATURES: -Certification of multimode fiber links at 850nm -Integrated fiber optic length tester for accurate link length measurements -Data storage for up to 1000 data points including run labels, fiber type, and link information including link name, date, reference power values, fiber length, and number of splices and interconnects -Built-in loss wizard for calculation of maximum allowable loss values (link budget) -USB interface for continuous data logging, report printing, or data downloading -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software for printing formatted fiber certification reports -Absolute or relative mode for giving you instant pass/fail results -Selectively view, delete or resample data points -Supported Cabling Standards: -EIA/TIA 568-B/C -ISO/IEC 11801 -10-Gigabit Ethernet -1000Base-SX -1000Base-LX -100Base-FX -10Base-FB -10Base-FL -FDDI -ATM-155 -ATM-622 -Fibre Channel -Token Ring

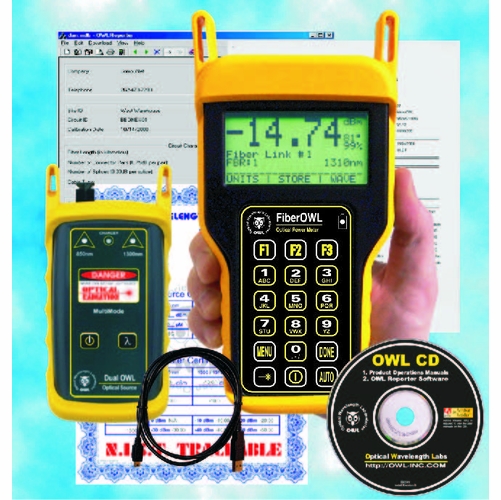

KIT CONTENTS: -Power Meter: Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT -Light Source: Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 -Accessories: -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software -Product manuals -Download cable -9-volt batteries -NIST certificate -Carrying case -Protective rubber boots -Carrying straps
