NOYES SMLP4-4 SM/MM (SC) POWER MTR/LGHT SOURCE KIT ( ) SPECIFY CONN AT TIME OF ORDER
Available*
Item # 53420000
Model # SMLP 4-4 SC
$3,145.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mtr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
AFL Telecommunications
Fiber Power Meter Light Source Kit
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

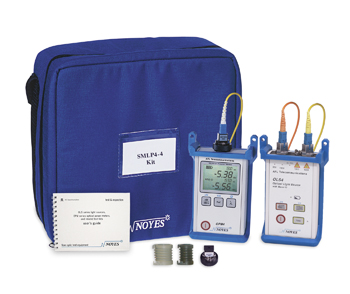

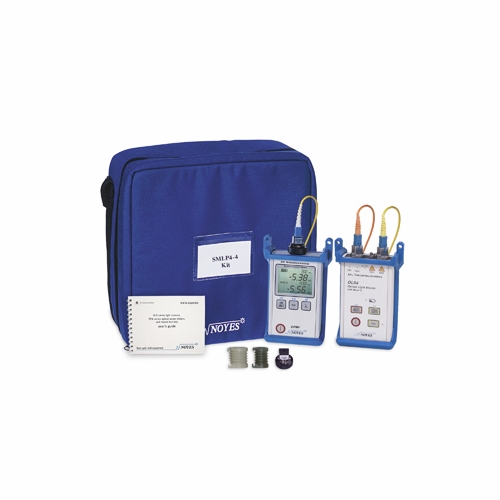

AFL TELECOMMUNICATIONS/NOYES SMLP4-4 SM/MM POWER MTR/LGHT SOURCE KIT (NEW) SPECIFY CONN AT TIME OF ORDER SMLP 4-4 SM/MM test kit with Wave ID and Set Reference
The SMLP 4-4 test kit combines the OPM 4-2D optical power meter and OLS 4 integrated LED and LASER light source and is ideally suited for testing fiber optic networks with hybrid (single-mode and multimode) cables. The OLS 4 features 850 nm and 1300 nm LED output from a multimode output port and 1310 nm and 1550 nm LASER output from a single-mode output port. The LED and LASER outputs are stabilized to ensure accurate test results per current TIA/EIA requirements. This light source offers 4 modes of operation: Dual wavelengths sending ID, single wavelength sending ID, CW, and modulated Tone. [Active Output], [Tone], [Battery], and [External Power] indicators identify the currently enabled operating mode, battery charge status, and external power presence. Both output ports are equipped with removable SC (FC & ST available) adapters to allow the output connectors to be inspected and cleaned. The OPM 4-2D offers Wave ID, automatic wavelength identification and switching, when used with the OLS 4. Multiple test Tone detection is provided for fiber identification. The OPM 4-2D stores optical references for each calibrated wavelength. An easy to read Dual Wavelength LCD display with Backlight shows measured power [dBm or µW] or insertion loss [dB], calibrated wavelengths, tone signal [Hz], wavelength ID, and the battery charge status. In addition to being powered by two AA alkaline, the OPM 4-2D or OLS 4 can be powered by optional AC adapter and/or rechargeable NiMH battery pack. The OPM 4-2D optical input port accepts AFL TELECOMMUNICATIONS/NOYES thread-on style adapter caps. Adapter caps are required for operation and must be ordered separately. The OPM 4-2D and OLS 4 are fully N.I.S.T. traceable.
Features:
Rugged, handheld, lightweight Designed for field use Certify multimode and single-mode links per TIA/EIA standards Wave ID - automatic wavelength identification and switching Dual Wave ID, single Wave ID, CW, and modulated Tone (on single-mode output) 270 Hz, 330 Hz, 1 kHz, and 2 kHz Tone Large LCD with Backlight Power measurements in dBm or µW; insertion loss in dB Reference power level storage AA alkaline, optional rechargeable NiMH battery pack or AC adapter Low battery indicator Free 50 µm and 62.5 µm mandrels Cost-effective, easy to use N.I.S.T traceable
OLS 4 Accessories 4050-00-0119 AC Adapter, 90-264 VAC to 9 VDC, select power cord 8400-00-0072 FC Interface/SM/ MM 8400-00-0073 SC Interface/SM/ MM 8400-00-0074 ST Interface/SM/ MM
The SMLP 4-4 test kit combines the OPM 4-2D optical power meter and OLS 4 integrated LED and LASER light source and is ideally suited for testing fiber optic networks with hybrid (single-mode and multimode) cables. The OLS 4 features 850 nm and 1300 nm LED output from a multimode output port and 1310 nm and 1550 nm LASER output from a single-mode output port. The LED and LASER outputs are stabilized to ensure accurate test results per current TIA/EIA requirements. This light source offers 4 modes of operation: Dual wavelengths sending ID, single wavelength sending ID, CW, and modulated Tone. [Active Output], [Tone], [Battery], and [External Power] indicators identify the currently enabled operating mode, battery charge status, and external power presence. Both output ports are equipped with removable SC (FC & ST available) adapters to allow the output connectors to be inspected and cleaned. The OPM 4-2D offers Wave ID, automatic wavelength identification and switching, when used with the OLS 4. Multiple test Tone detection is provided for fiber identification. The OPM 4-2D stores optical references for each calibrated wavelength. An easy to read Dual Wavelength LCD display with Backlight shows measured power [dBm or µW] or insertion loss [dB], calibrated wavelengths, tone signal [Hz], wavelength ID, and the battery charge status. In addition to being powered by two AA alkaline, the OPM 4-2D or OLS 4 can be powered by optional AC adapter and/or rechargeable NiMH battery pack. The OPM 4-2D optical input port accepts AFL TELECOMMUNICATIONS/NOYES thread-on style adapter caps. Adapter caps are required for operation and must be ordered separately. The OPM 4-2D and OLS 4 are fully N.I.S.T. traceable.
Features:
Rugged, handheld, lightweight Designed for field use Certify multimode and single-mode links per TIA/EIA standards Wave ID - automatic wavelength identification and switching Dual Wave ID, single Wave ID, CW, and modulated Tone (on single-mode output) 270 Hz, 330 Hz, 1 kHz, and 2 kHz Tone Large LCD with Backlight Power measurements in dBm or µW; insertion loss in dB Reference power level storage AA alkaline, optional rechargeable NiMH battery pack or AC adapter Low battery indicator Free 50 µm and 62.5 µm mandrels Cost-effective, easy to use N.I.S.T traceable
OLS 4 Accessories 4050-00-0119 AC Adapter, 90-264 VAC to 9 VDC, select power cord 8400-00-0072 FC Interface/SM/ MM 8400-00-0073 SC Interface/SM/ MM 8400-00-0074 ST Interface/SM/ MM
