OWL KIT-Z2S-D285sc Silicon ZOOM 2 MM Test Kit (850nm only; SC connector) Silicon ZOOM 2 (ZO-2S) Dual
Available*
Item # 53419490
Model # KIT-Z2S-D285sc
$352.35
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OWL OPTICAL WAVELENGTH LABORATORIES KIT-Z2S-D285sc Silicon ZOOM 2 MM Test Kit (850nm only; SC connector) Silicon ZOOM 2 (ZO-2S) Dual
OVERVIEW: The Silicon ZOOM II / Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode networks. The Silicon ZOOM II (Zeroed Output Optical Meter) is an economical fiber optic power meter designed to provide accurate testing of multimode fiber cables at 850nm wavelength. The 4-digit 7-segment LCD display shows power readings with a resolution of 0.01dB, power units in dBm, dB, or uW, and battery power level. The Silicon ZOOM II comes configured with a 2.5mm universal port for connection to SC, ST, and other connector types that have a 2.5mm ferrule. The Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 is an 850nm NIST traceable multimode light source. Its 850nm output is temperature-stabilized for accurate measurements. The Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 has two connector options: ST or SC.
FEATURES: Economical option for quick attenuation and loss testing of multimode networks at 850nm Easy-to-read 4-digit 7-segment LCD display Store reference values for calibrated wavelengths Intuitive 2-button interface on both units On-screen wavelength, measurement units, and low battery indicator NIST traceable

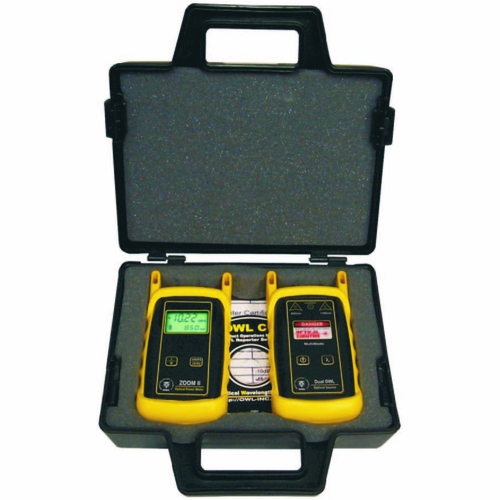

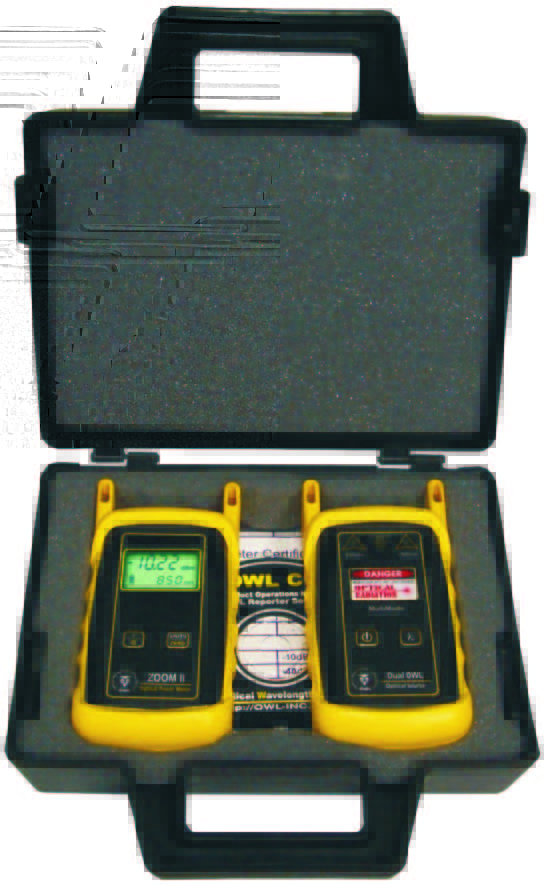

KIT CONTENTS Power Meter: Silicon ZOOM II Light Source: Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 Accessories: Product manuals 9-volt batteries NIST certificate Carrying case Protective rubber boots
OVERVIEW: The Silicon ZOOM II / Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode networks. The Silicon ZOOM II (Zeroed Output Optical Meter) is an economical fiber optic power meter designed to provide accurate testing of multimode fiber cables at 850nm wavelength. The 4-digit 7-segment LCD display shows power readings with a resolution of 0.01dB, power units in dBm, dB, or uW, and battery power level. The Silicon ZOOM II comes configured with a 2.5mm universal port for connection to SC, ST, and other connector types that have a 2.5mm ferrule. The Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 is an 850nm NIST traceable multimode light source. Its 850nm output is temperature-stabilized for accurate measurements. The Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 has two connector options: ST or SC.
FEATURES: Economical option for quick attenuation and loss testing of multimode networks at 850nm Easy-to-read 4-digit 7-segment LCD display Store reference values for calibrated wavelengths Intuitive 2-button interface on both units On-screen wavelength, measurement units, and low battery indicator NIST traceable
KIT CONTENTS Power Meter: Silicon ZOOM II Light Source: Dual OWL OPTICAL WAVELENGTH LABORATORIES 850 Accessories: Product manuals 9-volt batteries NIST certificate Carrying case Protective rubber boots
