GREENLEE 567XL OPM SI (SOC) 567XL 52058723/783310000259
Available*
Item # 80004848
Model # 783310000259
$2,355.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Power Mtr
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Power Meter
Greenlee Textron
Fiber Power Meter Light Source Kit
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

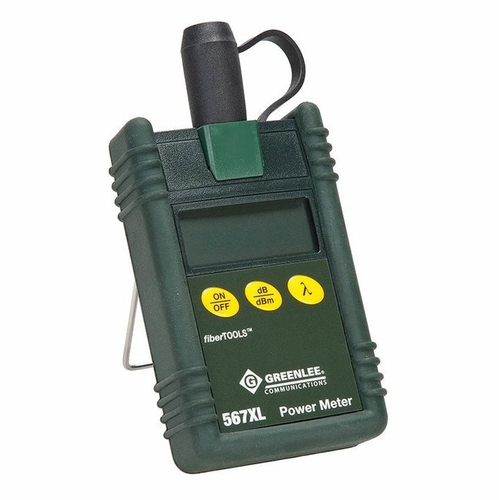

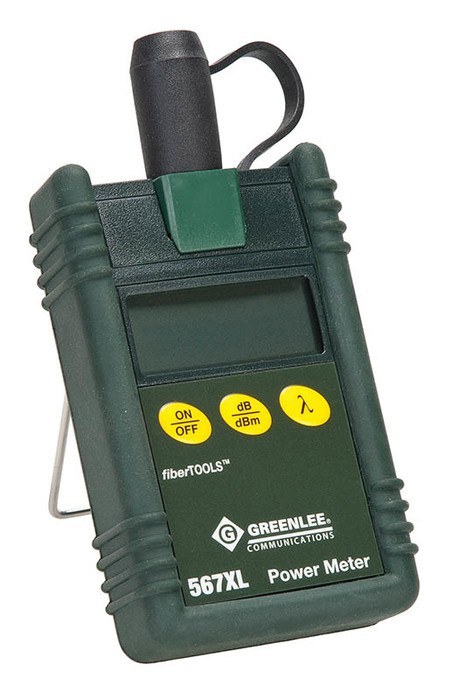

GREENLEE 567XL OPM, SI (SOC) 567XL 52058723/783310000259 NEW
DESCRIPTIONS: OPM, SI (SOC) 567XL Easy to use - three button control all functions
Loss measurements in (dB) Power measurements in (dBm) Snap on connector interface adapts to FC, SC and ST connectors Long battery life
User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS: Accuracy : +/- 0.25 DB Calibration Wavelengths : 635, 780 And 850 nm Connector interface : SOC Detector Type : 3 X 3.5 MM Silicon Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height
Humidity : 0 To 95 PCT Non-Condensing Linearity : 3 To -3 dBm (+/- 0.5 db), -3 To -50 dBM (+/- 0.05 db), -50 To -60 dBM (+/- 0.5 db) Operating Temperature : -15 To 55°C
Power Range : 3 To -60 Power Supply : (2) 1.5 V AA Size Battery Resolution : 0.01 Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4 Storage Temperature : -35 To 70°C Sub Brand : fiberTOOLS Type : XL Series, Fiber Optic
WEIGHT: 241 G (8.5 OZ)
CAT #: 567XL UPC #: 52058723/783310000259
PRODUCTS > Fiber Optic Instruments > Handheld > Power Meters > OPM, SI (SOC)
DESCRIPTIONS: OPM, SI (SOC) 567XL Easy to use - three button control all functions
Loss measurements in (dB) Power measurements in (dBm) Snap on connector interface adapts to FC, SC and ST connectors Long battery life
User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS: Accuracy : +/- 0.25 DB Calibration Wavelengths : 635, 780 And 850 nm Connector interface : SOC Detector Type : 3 X 3.5 MM Silicon Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height
Humidity : 0 To 95 PCT Non-Condensing Linearity : 3 To -3 dBm (+/- 0.5 db), -3 To -50 dBM (+/- 0.05 db), -50 To -60 dBM (+/- 0.5 db) Operating Temperature : -15 To 55°C
Power Range : 3 To -60 Power Supply : (2) 1.5 V AA Size Battery Resolution : 0.01 Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4 Storage Temperature : -35 To 70°C Sub Brand : fiberTOOLS Type : XL Series, Fiber Optic
WEIGHT: 241 G (8.5 OZ)
CAT #: 567XL UPC #: 52058723/783310000259
PRODUCTS > Fiber Optic Instruments > Handheld > Power Meters > OPM, SI (SOC)
