Product Description
Owl Optical Wavelength Laboratories Kit-Z2-D2Xx-L2Xx Zoom 2 / Dual Owl Optical Wavelength Laboratories / Laser Owl Optical Wavelength Laboratories Mm/Sm Test Kit Zoom 2 (Zo-2) Dual Owl Optical Wavelength Laboratories (Do-2Xx) La
Overview:
The Zoom Ii / Dual Owl Optical Wavelength Laboratories / Laser Owl Optical Wavelength Laboratories Test Kit Is Ideal For
Lan Managers And Installers Who Need To Do Simple
Attenuation Tests On Their Multimode And Single-Mode
Networks.
The Zoom Ii (Zeroed Output Optical Meter) Is An
Economical Fiber Optic Power Meter. It Provides Accurate
Testing Of Multimode And Singlemode Fiber Cables. The 4-Digit
7-Segment Lcd Displays Power Readings With A Resolution Of
0.01Db. On-Screen Indicators Display Measurement Units
(Dbm, Db, Uw), As Well As Battery Life. The Zoom Ii Comes
Configured With A 2.5Mm Universal Connector For Connection
To St Or Sc Connectors, As Well As Any Other Fiber Connector
With A 2.5Mm Ferrule.
The Dual Owl Optical Wavelength Laboratories Is A 850/1300Nm Nist Traceable Multimode
Light Source. Its Dual Wavelength Outputs Are Temperaturestabilized
For Accurate Measurements. The Dual Owl Optical Wavelength Laboratories Has
Two Connector Options: St Or Sc.
The Laser Owl Optical Wavelength Laboratories Is A Nist Traceable Singlemode Light Source.
Its Dual Wavelength Outputs (1310Nm / 1550Nm) Are
Temperature-Stabilized For Accurate Measurements. Three
Connector Options Are Available (St, Sc, And Fc).
Features:
Economical Option For Quick Attenuation And Loss Testing Of
Both Multimode And Singlemode Networks
Easy-To-Read 4-Digit 7-Segment Lcd Display
Store Reference Values For Calibrated Wavelengths
Intuitive 2-Button Interface On Both Units
On-Screen Wavelength, Measurement Units, And Low Battery
Indicator
Nist Traceable

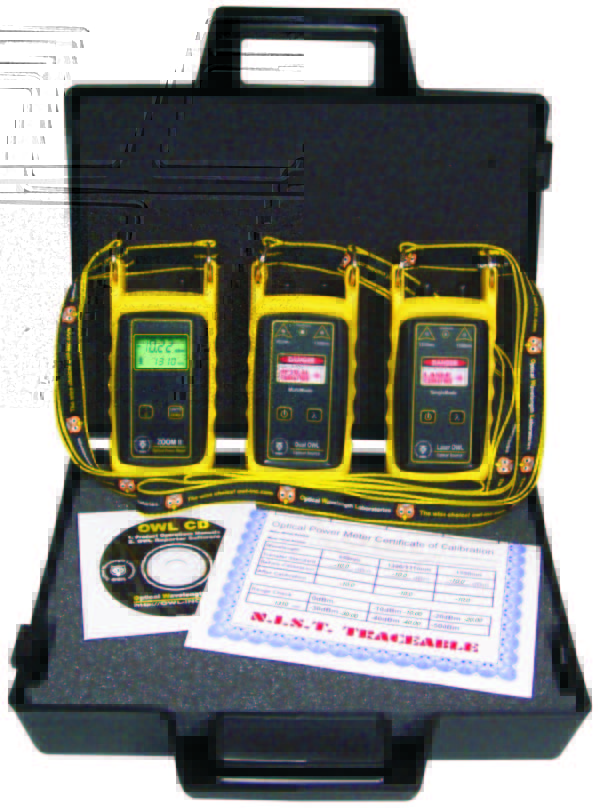

Kit Contents:
Power Meter: Zoom Ii
Light Source: Dual Owl
Laser Owl
Accessories: Product Manuals
9-Volt Batteries
Nist Certificate
Carrying Case
Protective Rubber BootsRead More
