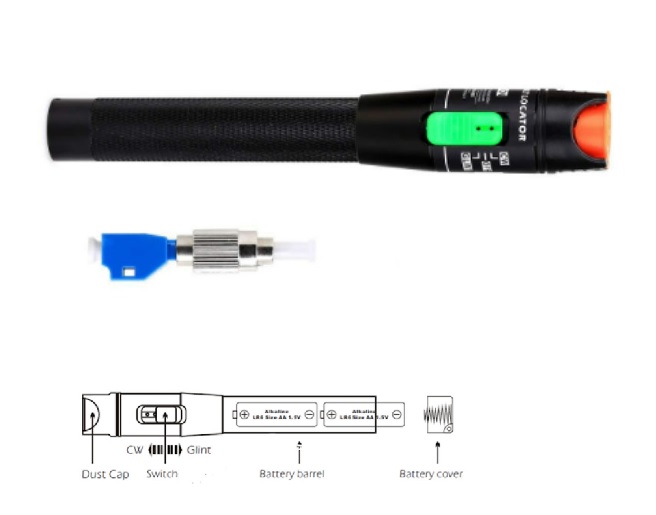

OPTIX AMERICA VFL-10 10 MW power Visual Fault Locator equipped with a 650-nm visible laser diode
Available*
Item # 53760855
Model # VFL-10
$108.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Identifier
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
Optix America
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OPTIX AMERICA VFL-10 10 MW power Visual Fault Locator equipped with a 650-nm visible laser diode
OPTIX AMERICA VFL-10 10 MW power Visual Fault Locator equipped with a 650-nm visible laser diode, 125mm adapter included.
The Optix VFL-10 650nm visual fault locator checks continuity and faults within runs of single mode or multimode fiber, and is a helpful assistant within the dead zone of an OTDR. It is also a basic maintenance tool for fiber network, LAN, ATM fiber and telecom networks.
Features - Equipped with a 650-nm wavelength visible laser diode - Support CW and 2Hz modulation work mode - Solid construction with special end design to avoid damage to the laser end when dropped - Stable power output at all times even with low battery - 2.5mm universal adapter for SC, FC, ST connectors - Includes 1.25mm LC/MU adapter for - Includes soft case - Protective cap for extra protection
Specifications Output Power >10 mW Dynamic Range >10 km Wavelength 650 nm +/- 20 nm Light Source LD Laser Connector 2.5mm plus 1.25mm adaptor Working Mode CW or 2 Hz modulation Power Two AA batteries (included) Weight 78g (excluding batteries) Dimension Diameter 27mm; Length 168 mm (1.06 x 6.61 inches)
Ordering Information Part # VFL-10 Description 10mW power VFL with 1.25mm adapter. Batteries and case included.
OPTIX AMERICA VFL-10 10 MW power Visual Fault Locator equipped with a 650-nm visible laser diode, 125mm adapter included.
The Optix VFL-10 650nm visual fault locator checks continuity and faults within runs of single mode or multimode fiber, and is a helpful assistant within the dead zone of an OTDR. It is also a basic maintenance tool for fiber network, LAN, ATM fiber and telecom networks.
Features - Equipped with a 650-nm wavelength visible laser diode - Support CW and 2Hz modulation work mode - Solid construction with special end design to avoid damage to the laser end when dropped - Stable power output at all times even with low battery - 2.5mm universal adapter for SC, FC, ST connectors - Includes 1.25mm LC/MU adapter for - Includes soft case - Protective cap for extra protection
Specifications Output Power >10 mW Dynamic Range >10 km Wavelength 650 nm +/- 20 nm Light Source LD Laser Connector 2.5mm plus 1.25mm adaptor Working Mode CW or 2 Hz modulation Power Two AA batteries (included) Weight 78g (excluding batteries) Dimension Diameter 27mm; Length 168 mm (1.06 x 6.61 inches)
Ordering Information Part # VFL-10 Description 10mW power VFL with 1.25mm adapter. Batteries and case included.
