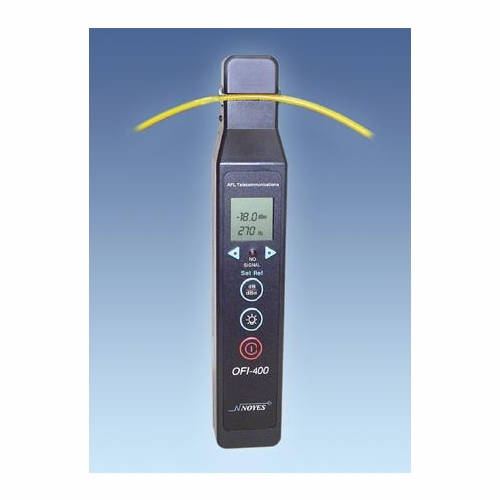

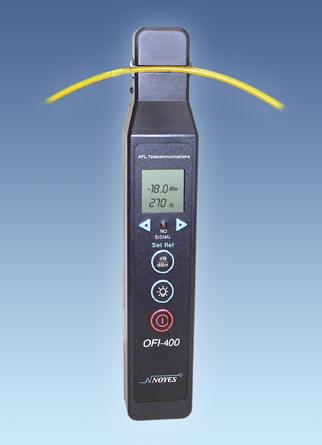

AFL/NOYES OFI400 FIBER IDENTIFIER

AFL TELECOMMUNICATIONS/NOYES OFI400 FIBER IDENTIFIER NEW OFI Optical Fiber Identifiers Noyes Optical Fiber Identifiers are rugged, handheld, and easy-to-use fiber optic test instruments designed to detect optical signals transmitted through a single-mode fiber without disrupting traffic. During installation, maintenance, rerouting, or restoration; it is often necessary to isolate a specific fiber. By simply clamping an Optical Fiber Identifier onto a gently bent fiber, the unit will indicate if there is [No Signal], [Tone], or [Traffic] and identify signal direction. The OFI 200 model and OFI 400 model Identifiers are equipped with a unique two-position head design that can be configured to work with 250 ėm, 900 ėm, ribbon, or jacketed fiber in seconds, without tools or adjustments. When testing coated fibers, the slim design of the OFI 200 and OFI 400 models allows easier access on a splice tray where the amount of work space is limited. The clamping trigger is ergonomically designed to fit the natural motion of the operator’s hand. A high impact molded plastic case makes the OFI models suitable for use outside plant or in the central office. The OFI 400 model is the next generation of Noyes Optical Fiber Identifiers. It has all the features of the OFI 200 model plus easy-to-read LCD display with Backlight, multiple [TONE] signal detection (270 Hz, 330 Hz, 1 kHz, or 2 kHz), power saving feature, and [Set Reference] feature. The OFI 400 model also measures and displays fiber core power or relative power on an LCD display. Both models are battery operated with the battery indication feature and perform thousands of tests before batteries replacement is necessary.

Features Rugged, handheld, lightweight Accepts 250 ėm, 900 ėm coated fiber, 3 mm jacketed fiber cable, and ribbon fiber No head swapping or adjustments Identifies light carrying fiber Low insertion loss - traffic remains uninterrupted Indicates direction of traffic Indicates Tone signal visually and audibly 2 kHz Tone detection - OFI 200 models 270 Hz, 330 Hz, 1 kHz, and 2 kHz Tone detection - OFI 400 models Easy-to-read LCD display with Backlight - OFI 400 models Measures fiber core or relative power - OFI 400 models Power Off and Set Reference feature - OFI 400 models Battery operated Low battery indication Low cost, easy to use
