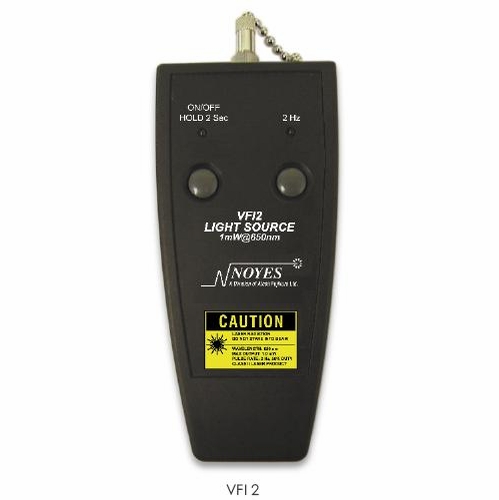

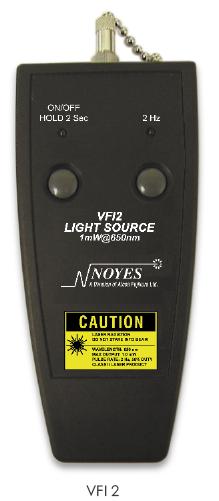

AFL VFI-2 VISUAL FIBER IDENTIFIER W/2.5mm ADAPTER VFI-01-0900PR VFL VFI2
Available*
Item # 53285000
Model # VFI-2
$194.40
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Identifier
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
AFL Telecommunications
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
AFL TELECOMMUNICATIONS VFI-2 VISUAL FIBER IDENTIFIER W/2.5mm ADAPTER VFI-01-0900PR VFL VFI2 NEW Features
650 nm Visible Red Laser Source
Compact Size
Universal Connector Interface for Quick Connection
High Power (1 mW)
Description The HiLite and VFI 2 are compact but powerful visible red laser sources designed to troubleshoot faults on fi ber optic cables. Light generated by these units will escape from sharp bends and breaks in jacketed or bare fi bers, as well as poorly mated connectors. Thus they can identify faults in fi ber optic jumper cables, distribution frames, patch panels, and splice trays. The HiLite and VFI 2 are an excellent compliment to an OTDR because it can locate faults inside the OTDR’s dead-zone. Other applications include end-to-end continuity checks, identifying connectors in patch panels, and identifying fi bers during splicing operations. The universal connector interface provides fast operation with many connector styles without changing an adapter.
Specifications HiLite / VFI 2 Emitter Type Laser (FDA and IEC Class II) Wavelength 650 nm Output Power 1 mW (into singlemode fi ber) Operating Temperature °C 10 to 35 Storage Temperature °C 0 to 50 HiLite VFI 2 Connector Interface 2.5 mm fi xed* Universal Adapter (2.5 mm included) Modulation 2 Hz 2 Hz or CW selected Weight 1.75 oz (50 g) 7.06 oz (< 200 g) Dimensions (H x W x D) 2.8 x 1.4 x 0.6 in (7.0 x 3.6 x 1.5 cm) 5.5 x 2.4 x 1.3 in (14.0 x 6.2 x 3.2 cm) Power 1 AAA alkaline battery (4 hrs. typical) 2 AA alkaline batteries (60 hrs. typical) * Accepts 2.5 mm ferrule connectors (SC, FC, ST, E2000)
Description The HiLite and VFI 2 are compact but powerful visible red laser sources designed to troubleshoot faults on fi ber optic cables. Light generated by these units will escape from sharp bends and breaks in jacketed or bare fi bers, as well as poorly mated connectors. Thus they can identify faults in fi ber optic jumper cables, distribution frames, patch panels, and splice trays. The HiLite and VFI 2 are an excellent compliment to an OTDR because it can locate faults inside the OTDR’s dead-zone. Other applications include end-to-end continuity checks, identifying connectors in patch panels, and identifying fi bers during splicing operations. The universal connector interface provides fast operation with many connector styles without changing an adapter.
Specifications HiLite / VFI 2 Emitter Type Laser (FDA and IEC Class II) Wavelength 650 nm Output Power 1 mW (into singlemode fi ber) Operating Temperature °C 10 to 35 Storage Temperature °C 0 to 50 HiLite VFI 2 Connector Interface 2.5 mm fi xed* Universal Adapter (2.5 mm included) Modulation 2 Hz 2 Hz or CW selected Weight 1.75 oz (50 g) 7.06 oz (< 200 g) Dimensions (H x W x D) 2.8 x 1.4 x 0.6 in (7.0 x 3.6 x 1.5 cm) 5.5 x 2.4 x 1.3 in (14.0 x 6.2 x 3.2 cm) Power 1 AAA alkaline battery (4 hrs. typical) 2 AA alkaline batteries (60 hrs. typical) * Accepts 2.5 mm ferrule connectors (SC, FC, ST, E2000)
