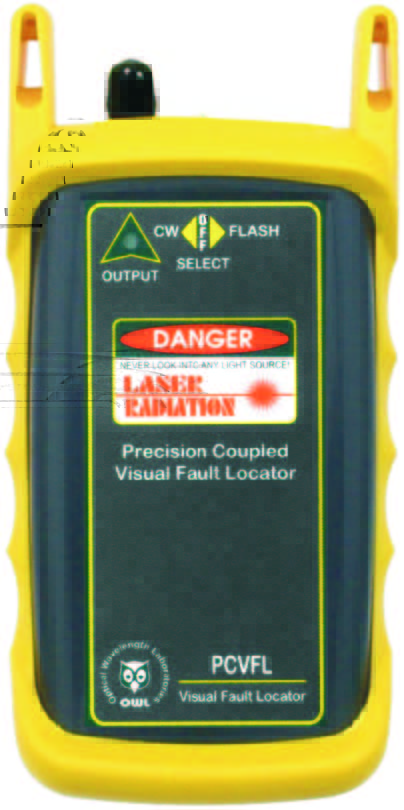

OWL PCVFL-1 Precision Coupled Visual Fault Locator
Available*
Item # 53419870
Model # PCVFL-1
$298.69
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
OWL OPTICAL WAVELENGTH LABORATORIES PCVFL-1 Precision Coupled Visual Fault Locator NEW
FEATURES: High-intensity visible laser allows for visible fault location of breaks and microbends in both single-mode and multimode fibers Both Continuous Wave mode and Pulsed mode allow for easy fiber identification 2.5mm universal connector port - allows connection to ST, SC, and FC connectors Simple single-switch operation CW Mode - 15 hours use on one 9v battery Pulsed Mode - 120 hours use on one 9v battery Low -battery indicator Hand-held Lightweight
APPLICATIONS: PCVFL (Precision Coupled Visual Fault Locator) is a light-weight, hand-held tool used to quickly troubleshoot faults in the continuity of both single-mode and multimode fibers, especially at fiber launch points or in OTDR dead zones. A high-intensity visible red laser beam is precision-coupled into a optical fiber; breaks and micro-bends in the fiber deflect the red light into the fiber jacket, producing a red glow at the point of the fault. Additionally, the PCVFL can be used as an end-to-end visual fiber identifier, which is useful for locating fibers terminated in poorly labeled or unlabeled fiber patch panels. A single switch is used to operate the PCVFL, toggling the unit between OFF, CW (continuous wave), and Pulsed modes. Typical battery life in CW mode is 15 hours, and the short 12.5% duty cycle in pulsed mode extends the battery life to 120 hours of continuous use. The PCVFL ships standard with a 2.5mm universal connector port, which allows for connection to ST, SC, and FC connectors. Extreme caution must be exercised when operating the PCVFL. Lasers such as the ones in the PCVFL produce intense beams of laser light that are harmful to the eye. Exposure to such energy can cause serious retina damage, and prolonged exposure can cause blindness. TO ENSURE YOUR SAFETY: NEVER LOOK INTO A LIGHT SOURCE OR THE END OF A FIBER THAT MAY BE ENERGIZED BY A SOURCE!
FEATURES: High-intensity visible laser allows for visible fault location of breaks and microbends in both single-mode and multimode fibers Both Continuous Wave mode and Pulsed mode allow for easy fiber identification 2.5mm universal connector port - allows connection to ST, SC, and FC connectors Simple single-switch operation CW Mode - 15 hours use on one 9v battery Pulsed Mode - 120 hours use on one 9v battery Low -battery indicator Hand-held Lightweight
APPLICATIONS: PCVFL (Precision Coupled Visual Fault Locator) is a light-weight, hand-held tool used to quickly troubleshoot faults in the continuity of both single-mode and multimode fibers, especially at fiber launch points or in OTDR dead zones. A high-intensity visible red laser beam is precision-coupled into a optical fiber; breaks and micro-bends in the fiber deflect the red light into the fiber jacket, producing a red glow at the point of the fault. Additionally, the PCVFL can be used as an end-to-end visual fiber identifier, which is useful for locating fibers terminated in poorly labeled or unlabeled fiber patch panels. A single switch is used to operate the PCVFL, toggling the unit between OFF, CW (continuous wave), and Pulsed modes. Typical battery life in CW mode is 15 hours, and the short 12.5% duty cycle in pulsed mode extends the battery life to 120 hours of continuous use. The PCVFL ships standard with a 2.5mm universal connector port, which allows for connection to ST, SC, and FC connectors. Extreme caution must be exercised when operating the PCVFL. Lasers such as the ones in the PCVFL produce intense beams of laser light that are harmful to the eye. Exposure to such energy can cause serious retina damage, and prolonged exposure can cause blindness. TO ENSURE YOUR SAFETY: NEVER LOOK INTO A LIGHT SOURCE OR THE END OF A FIBER THAT MAY BE ENERGIZED BY A SOURCE!
