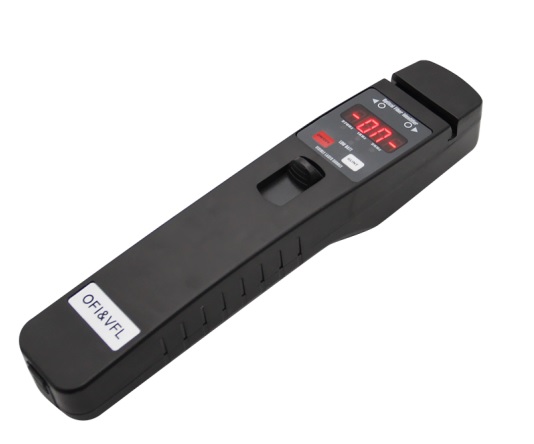

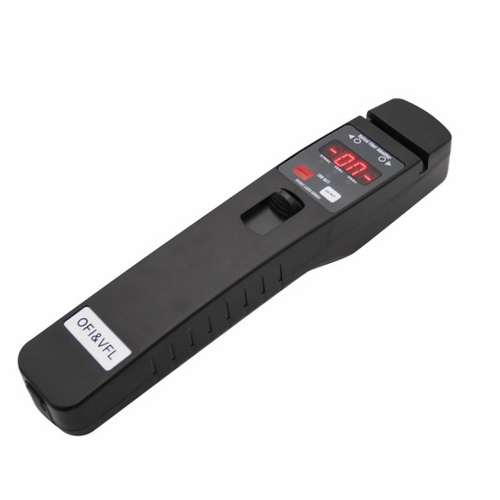

OPTIX AMERICA OFI-28 Optical fiber identifier
OPTIX AMERICA OFI-28 Optical fiber identifier
The Optix America optical fiber identifier is suitable for detecting live fiber for 250um, 900um, 2mm, and 3mm fiber. The universal adaptor accommodates all cable diameters with no need to replace the block clamp. It also has a built-in 10mW VFL function.
Features - Detects attenuation associated with macrobending measurement, the attenuation associated with the bending of optical fiber that causes light to "leak out" of the fiber. The light leakage is detected by the fiber identifier in direction and intensity. The fiber cable is not damaged and signal communication is not interrupted. - Detects Tone Identification by detecting optical signals in the tone signal at a fixed frequency of 270Hz, 1KHz and 2KHz. - Built-in VFL Function with output power of 10 mW. - Low Battery Monitoring Function signals when to change the batteries - Includes soft case and two AA batteries
OFI-28 Optical Fiber Identifier for 250um, 900um, 2mm, and 3mm fiber cable. Also includes built-in 10mW VFL. User’s manual, calibration certificate, soft case, and batteries included in packaging
Dimension: 230mm x 43mm x 36mm Weight: 200g
OPTIX AMERICA OFI-28 Optical fiber identifier
The Optix America optical fiber identifier is suitable for detecting live fiber for 250um, 900um, 2mm, and 3mm fiber. The universal adaptor accommodates all cable diameters with no need to replace the block clamp. It also has a built-in 10mW VFL function.
Features - Detects attenuation associated with macrobending measurement, the attenuation associated with the bending of optical fiber that causes light to "leak out" of the fiber. The light leakage is detected by the fiber identifier in direction and intensity. The fiber cable is not damaged and signal communication is not interrupted. - Detects Tone Identification by detecting optical signals in the tone signal at a fixed frequency of 270Hz, 1KHz and 2KHz. - Built-in VFL Function with output power of 10 mW. - Low Battery Monitoring Function signals when to change the batteries - Includes soft case and two AA batteries
OFI-28 Optical Fiber Identifier for 250um, 900um, 2mm, and 3mm fiber cable. Also includes built-in 10mW VFL. User’s manual, calibration certificate, soft case, and batteries included in packaging
Dimension: 230mm x 43mm x 36mm Weight: 200g
