OWL KIT-M2-D2sc Micro OWL 2 / Dual OWL SC MM Test Kit (850/1300nm; SC connectors) Micro OWL 2 (MO-2)

OWL OPTICAL WAVELENGTH LABORATORIES KIT-M2-D2sc Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 / Dual OWL OPTICAL WAVELENGTH LABORATORIES SC MM Test Kit (850/1300nm; SC connectors) Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 (MO-2)

OVERVIEW: -Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. -The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hardcopy documentation as proof of adherence to standards. -The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 / Dual OWL OPTICAL WAVELENGTH LABORATORIES Test Kit contains the tools necessary for certifying fiber optic links against the TIA-568-B.3 cabling standard in multimode networks. -The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation, and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, and downloaded to a PC for report generation using our OWL OPTICAL WAVELENGTH LABORATORIES Reporter software. Its universal port allows connections to ST, SC, and FC, and also includes a 1.25mm universal port for connection to LC, MU, and other SFF connectors. -The Dual OWL OPTICAL WAVELENGTH LABORATORIES is a NIST traceable multimode light source. Its dual wavelength outputs (850nm / 1300nm) are temperature-stabilized for accurate measurements. Two connector options are available (ST and SC).

FEATURE: -Fiber optic link certification of multimode fiber links at 850nm and 1300nm against a myriad of cabling standards, including two usercustomizable standards -Data storage for up to 1000 data points including run labels, fiber type, and link information including link name, date, reference power values, fiber length, and number of splices and interconnects -Built-in loss wizard for calculation of maximum allowable loss values (link budget) -USB interface for continuous data logging, report printing, or data downloading -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software for printing formatted fiber certification reports -Absolute or relative mode for giving you instant pass/fail results -Selectively view, delete or resample data points -Supported Cabling Standards: -EIA/TIA 568 -ISO/IEC 11801 -10-Gig Ethernet -1000Base-SX/LX -100Base-FX -10Base-FB/FL -FDDI -ATM-155/622 -Fibre Channel -Token Ring

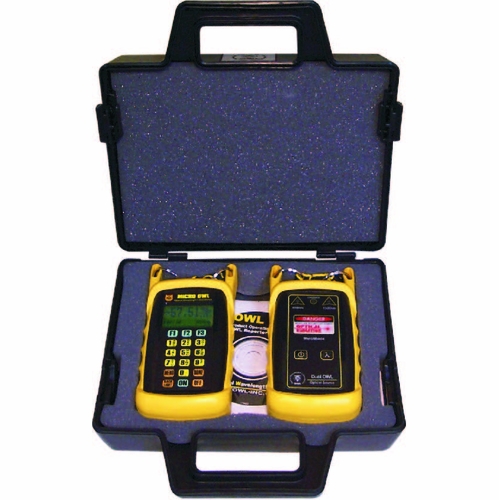

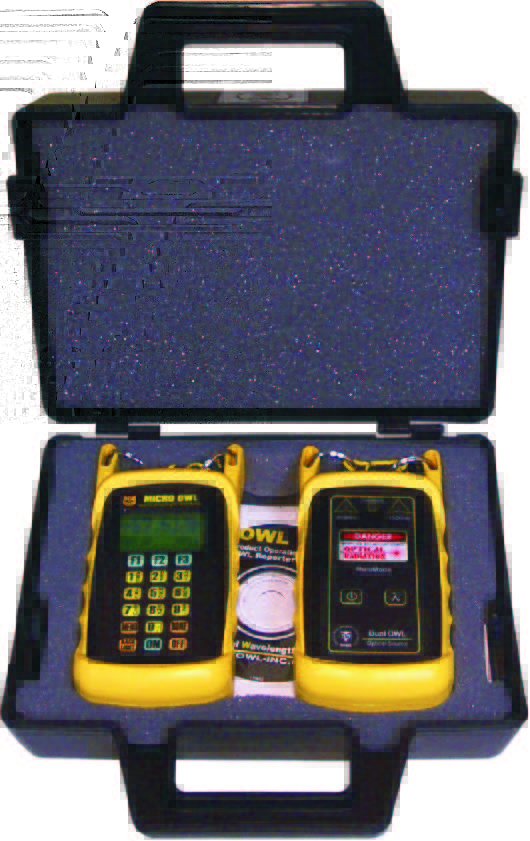

KIT CONTENTS: -Power Meter: Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 -Light Source: Dual OWL -Accessories: -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software -Product manuals -Download cable -9-volt batteries -NIST certificate -Carrying case -Protective rubber boots
