OWL KIT-M2-WS-MDVxx Micro OWL 2 / Wavesource MM Auto-test kit with integrated VFL Micro OWL 2 (MO-2)

OWL OPTICAL WAVELENGTH LABORATORIES KIT-M2-WS-MDVxx Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 / Wavesource MM Auto-test kit with integrated VFL Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 (MO-2)

OVERVIEW: -Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. -The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hardcopy documentation as proof of adherence to standards. -The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 / WaveSource MM / VFL Test Kit contains the tools necessary for certifying multimode fiber optic links against a myriad of popular cabling standards, including two usercustomizable standards. -The Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation, and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, and downloaded to a PC for report generation using our OWL OPTICAL WAVELENGTH LABORATORIES Reporter software. Its universal port allows connections to ST, SC, and FC, and also includes a 1.25mm universal port for connection to LC, MU, and other SFF connectors. -The WaveSource MM/VFL is a multimode light source. Its dual wavelength outputs (850 nm & 1300 nm) are temperature-stabilized for accurate measurements. A Visual Fault Locator is also included for near-end visual fault location and visual fiber identification. Two connector options are available (ST or SC).

FEATURES: -Fiber optic link certification of mulimode fiber links at 850nm and 1300nm against a myriad of cabling standards, including two usercustomizable standards -Data storage for up to 1000 data points including run labels, fiber type, and link information including link name, date, reference power values, fiber length, and number of splices and interconnects -Built-in loss wizard for calculation of maximum allowable loss values (link budget) -USB interface for continuous data logging, report printing, or data downloading -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software for printing formatted fiber certification reports -Absolute or relative mode for giving you instant pass/fail results -Selectively view, delete or resample data points -Near-end visual fault location -Visual fiber identification -Supported Cabling Standards: -EIA/TIA 568 -ISO/IEC 11801 -10-Gig Ethernet -1000Base-SX/LX -100Base-FX -10Base-FB/FL -FDDI -ATM-155/622 -Fibre Channel -Token Ring

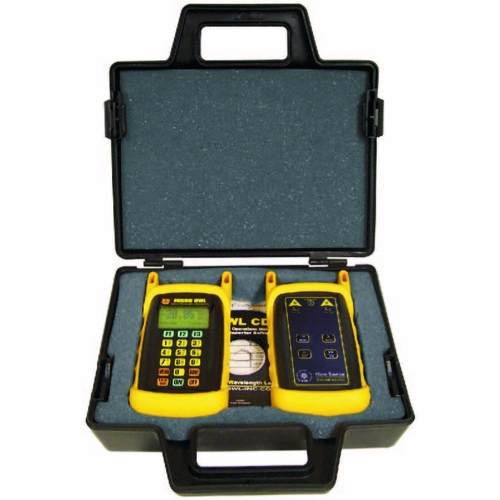

KIT CONTENTS: -Power Meter: Micro OWL OPTICAL WAVELENGTH LABORATORIES 2 -Light Source: WaveSource MM/VFL -Accessories: -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software -Product manuals -Download cable -9-volt batteries -NIST certificate -Carrying case -Protective rubber boots
