OWL KIT-FO4B-L2xx Fiber OWL 4 BOLT / Laser OWL SM test kit Fiber OWL 4 BOLT (FO-4B) Laser OWL (LO-2

OWL OPTICAL WAVELENGTH LABORATORIES KIT-FO4B-L2xx Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT / Laser OWL OPTICAL WAVELENGTH LABORATORIES SM test kit Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT (FO-4B) Laser OWL OPTICAL WAVELENGTH LABORATORIES (LO-2

OVERVIEW: -Many fiber optic network bids and Requests For Quote (RFQ) are citing cabling standards to specify the set of guidelines (such as fiber length) that the network installer must follow during the network installation. Adherence to such standards is meant to ensure the quality of the installation and guarantee that the network will perform as it was designed. -The process of testing a network installation to ensure its adherence to specified standards is called certification, and often requires hard-copy documentation as proof of adherence to standards. -The Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 / Laser OWL OPTICAL WAVELENGTH LABORATORIES Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode networks. -The Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard that performs link budget calculation (including integrated fiber link length testing), and sets a reference value using the characteristics of the link. This reference is the PASS/FAIL threshold and is calculated against the chosen standard. Up to 1000 fiber runs may be stored, then downloaded to a PC for report generation using our OWL OPTICAL WAVELENGTH LABORATORIES Reporter software. -The Laser OWL OPTICAL WAVELENGTH LABORATORIES fiber optic light source is designed for accurate testing and certification of singlemode (1310nm & 1550nm) networks. Its dual wavelength outputs are temperature-stabilized for accurate measurements. Three connector options are available on the Laser OWL OPTICAL WAVELENGTH LABORATORIES (ST, SC, and FC).

FEATURES: -Certification of singlemode fiber links at 1310nm and 1550nm Integrated fiber optic length tester for accurate link length measurements -Data storage for up to 1000 data points including run labels, fiber type, and link information including link name, date, reference power values, fiber length, and number of splices and interconnects -Built-in loss wizard for calculation of maximum allowable loss values (link budget) -USB interface for continuous data logging, report printing, or data downloading -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software for printing formatted fiber certification reports -Absolute or relative mode for giving you instant pass/fail results -Selectively view, delete or resample data points -Supported Cabling Standards: -EIA/TIA 568-B/C ISO/IEC 11801 10-Gigabit Ethernet -1000Base-SX -1000Base-LX -100Base-FX -10Base-FB -10Base-FL -FDDI -ATM-155 -ATM-622 -Fibre Channel -Token Ring

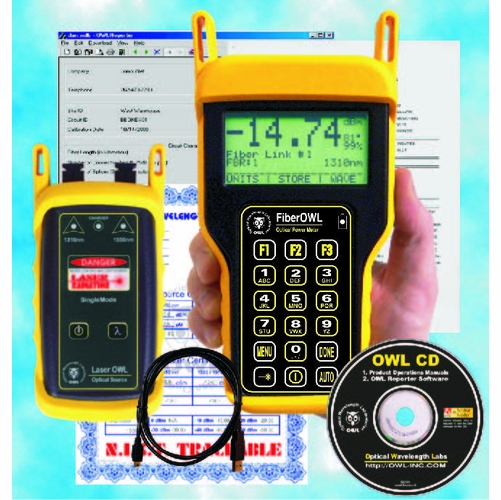

KIT CONTENTS: -Power Meter:Fiber OWL OPTICAL WAVELENGTH LABORATORIES 4 BOLT -Light Source: Laser OWL -Accessories: -OWL OPTICAL WAVELENGTH LABORATORIES Reporter software -Product manuals -Download cable -9-volt batteries -NIST certificate -Carrying case -Protective rubber boots -Carrying straps
