Product Description
Owl Optical Wavelength Laboratories Kit-Fo4B-Ws-Vsdxx Fiber Owl Optical Wavelength Laboratories 4 Bolt / Wavesource Sm Auto-Test Kit With Integrated Vfl Fiber
Overview:
-The Zoom 2 / Laser Owl Optical Wavelength Laboratories Test Kit Is Ideal For Lan Managers And Installers Who Need To Do Simple Attenuation Tests On Their Singlemode Networks.
-The Zoom 2 (Zeroed Output Optical Meter) Is An Economical Fiber Optic Power Meter. It Provides Accurate Testing Of Singlemode Fiber Cables. The 4-Digit 7-Segment Lcd Displays Power Readings With A Resolution Of 0.01Db. On-Screen Indicators Display Measurement Units (Dbm, Db,Uw), As Well As Battery Life. The Zoom 2 Comes Configured With A 2.5Mm Universal Connector For Connection To St Or Sc Connectors, As Well As Any Other Fiber Connector With A 2.5Mm Ferrule.
-The Laser Owl Optical Wavelength Laboratories Is A 1310/1550Nm Nist Traceable Singlemode Light Source. Its Dual Wavelength Outputs Are Temperature-Stabilized For Accurate Measurements. The Laser Owl Optical Wavelength Laboratories Has Three Connector Options: St, Sc, Or Fc.
Features:
-Economical Option For Quick Attenuation And Loss Testing Singlemode Networks
-Easy-To-Read 4-Digit 7-Segment Lcd Display
-Store Reference Values For Calibrated Wavelengths
-Intuitive 2-Button Interface On Both Units
-On-Screen Wavelength, Measurement Units, And Low Battery Indicator
-Nist Traceable

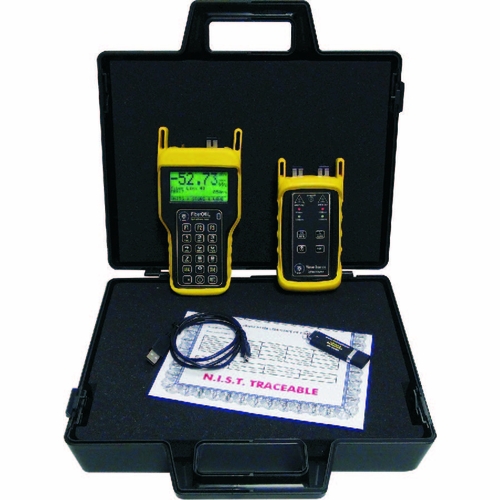

Kit Contents:
-Power Meter: Zoom 2
-Light Source: Laser Owl
-Accessories:
-Product Manuals
-9-Volt Batteries
-Nist Certificate
-Carrying Case
-Protective Rubber BootsRead More
