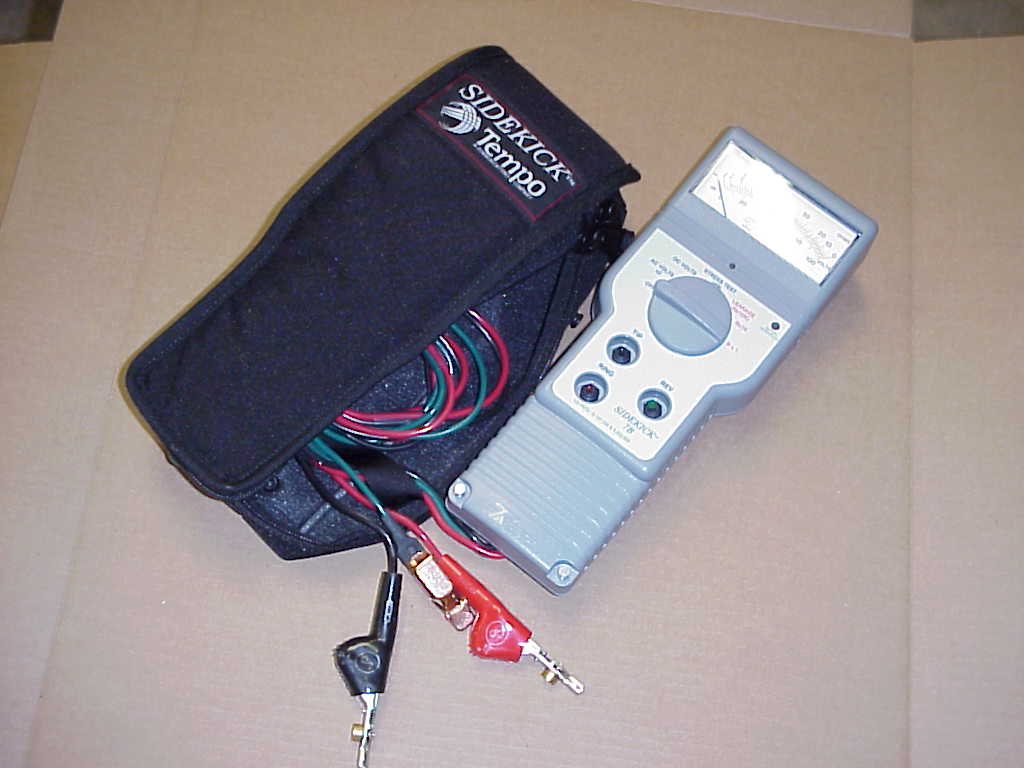

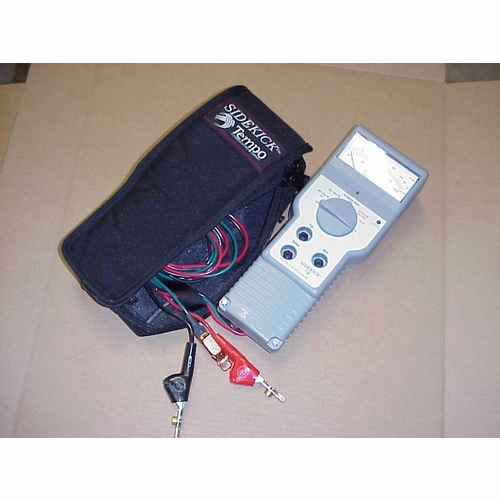

TEMPO SIDEKICK 7B METER REPAIRED
Available*
Item # 23650010
Model # 7B -R
$475.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Loop Test
Test Equipment
Subscriber Loop Tester
Multimeters-VOM-Brownie
Tempo Communications, Inc.
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE SIDEKICK 7B METER REPAIRED The Sidekick 7B is the test set used in every major telephone company in the United States to troubleshoot twisted pair applications. This lightweight, hand-held meter quickly and accurately uncovers intermittent troubles that other test sets can't detect. Since the introduction of the patented Stress Test and Leakage Test in 1991, the Sidekick has become a benchmark in communications technology. Technicians now have the versatility to identify faults in locations ranging from outside plant cable to inside wiring, and from closures to connecting blocks, without sacrificing standard features,e.g., AC/DC, VOM, Kick Meter, they have come to rely on. The versatile Sidekick 7B is used throughout the telephony industry, including LAN/WAN, Private Networks, and BICSI applications.
STRESS TEST The Stress Test reads the audible noise produced on a faulted pair that is stressed by a 90 dBrn longitudinal excitation. The Stress Test determines the capacitive and series resistance ba lance characteristics of twisted pair at any point along the pair. It is capable of identifying DC resistive or capacitive imbalances undetected by other subscriber loop tests. The Stress Test is also highly effective in identifying imbalances produced by series resistance opens (high joints).
LEAKAGE TEST The Leakage Test detects intermittent resistance faults that do not appear under normal VOM tests. When a faulted pair is taken out of service, galvanic action forms an insulating oxide layer over the faults. When returned to service, such pairs develop "noisy static" in a relatively short period of time. The Leakage Test uses 135 Volts to "punch through" the oxide layer and reveal the fault.
SPECIFICATIONS Dimensions (LxWxH) 10.75 x 4.25 x 2.5 inches Weight (batteries, test leads, wand and receiver) 2 lbs. Resistance Rx1: Reads 0 to 2000 ohms Rx1,000: Reads 0 to 2 megohms Rx10,000: Reads 0 to 20 megohms DC Voltage 0 to 100 Volts DC AC Voltage 0 to 200 Vrms Stress Test 0 to 90 dBrn Operating Temperature -20C to +60C Power Four AA batteries Part Number 1134-5020
Battery Installation Sidekick 7B & T&N These units use 4 'AA' style batteries. Install by removing the battery cover on the rear of the unit, and placing the batteries in the plastic holder, with the negative side of the batteries on the springs. Re-install the cover and proceed with normal operation.
STRESS TEST The Stress Test reads the audible noise produced on a faulted pair that is stressed by a 90 dBrn longitudinal excitation. The Stress Test determines the capacitive and series resistance ba lance characteristics of twisted pair at any point along the pair. It is capable of identifying DC resistive or capacitive imbalances undetected by other subscriber loop tests. The Stress Test is also highly effective in identifying imbalances produced by series resistance opens (high joints).
LEAKAGE TEST The Leakage Test detects intermittent resistance faults that do not appear under normal VOM tests. When a faulted pair is taken out of service, galvanic action forms an insulating oxide layer over the faults. When returned to service, such pairs develop "noisy static" in a relatively short period of time. The Leakage Test uses 135 Volts to "punch through" the oxide layer and reveal the fault.
SPECIFICATIONS Dimensions (LxWxH) 10.75 x 4.25 x 2.5 inches Weight (batteries, test leads, wand and receiver) 2 lbs. Resistance Rx1: Reads 0 to 2000 ohms Rx1,000: Reads 0 to 2 megohms Rx10,000: Reads 0 to 20 megohms DC Voltage 0 to 100 Volts DC AC Voltage 0 to 200 Vrms Stress Test 0 to 90 dBrn Operating Temperature -20C to +60C Power Four AA batteries Part Number 1134-5020
Battery Installation Sidekick 7B & T&N These units use 4 'AA' style batteries. Install by removing the battery cover on the rear of the unit, and placing the batteries in the plastic holder, with the negative side of the batteries on the springs. Re-install the cover and proceed with normal operation.
