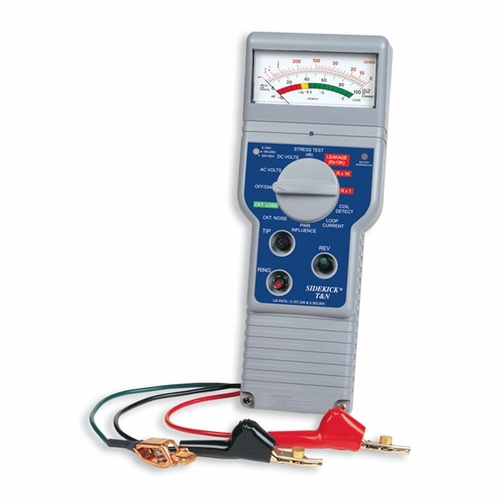

TEMPO 1137-5002 SIDEKICK,T & N 50605263/783310605263
Available*
Item # 79996615
Model # 783310605263
$1,791.10
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Meters
Test Equipment
Subscriber Loop Tester
Multimeters-VOM-Brownie
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

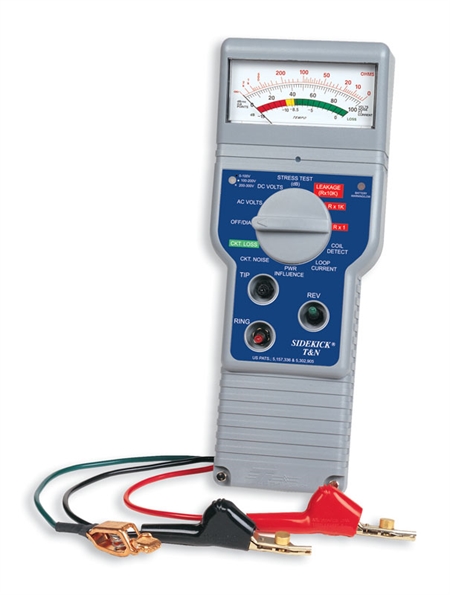

GREENLEE 1137-5002 SIDEKICK,T & N 50605263/783310605263 NEW
DESCRIPTION: Five transmission and noise tests
Determines the stressed noise susceptibility of dry and working pairs
Measures resistance, AC/DCvolts, and capacitive kick
Provides tone for twisted pair or crossed conductor identification
Single setup for testing Tip-Ring, Tip-Ground, and Ring-Ground
Minimal drying effect in all ranges
Field replaceable leads
Softcase with adjustable strand hook
Low battery indicator light
SPECIFICATIONS AC Voltage : 0 - 300 V RMS
Circuit Loss : -15 to +1 dB
Circuit Noise : 0 To 75 dBmC
DC Voltage : 0 - 300 VDC
Dimensions : 10.750 IN x 4.250 IN x 2.500 IN
Leakage : RX10K: Reads 0 To 20 MOHM
Loop Current : 0 - 100 mA
Power : Four AA batteries
Power Influence : 50 - 100 dBmC
Replacement Part : 1134-1002S Case 1131-0202 Test Leads
Resistance : Rx1: Reads 0 To 2000 M, Rx1K: Reads 0 To 2 M
StorageOperatingTemperature : -4 to 140ø F
Stress Test : 0 To 82 dBmC
Sub Brand : Sidekick
Type : T And N Series
Voltage Measurement : 0 - 300 VDC
0 - 300 VAC RMS
Weight : 2.000 LB
CAT #: 1137-5002 UPC: 50605263/783310605263
