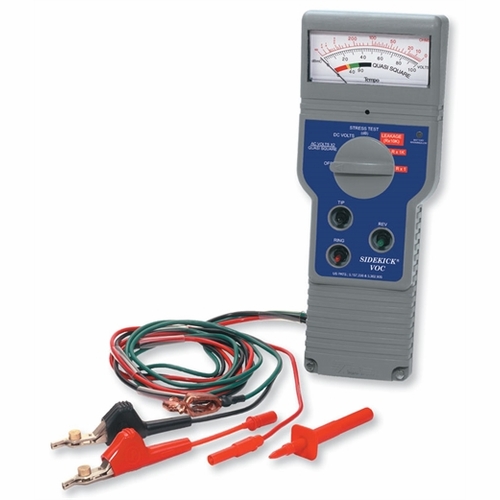

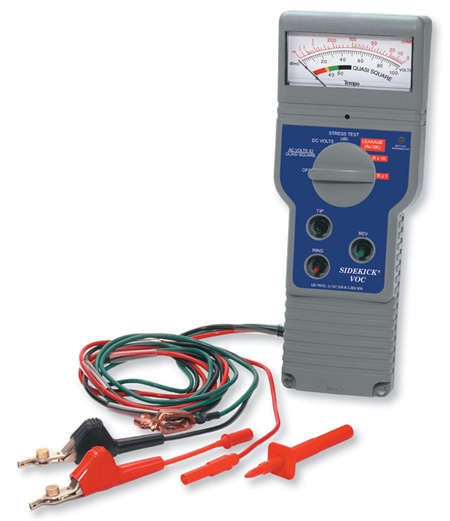

GREENLEE 1143-5000 SIDEKICK,VOC 50605270/783310605270 NEW
DESCRIPTION: Identifies defective insidewire and jacks
Measures resistance, AC/DCvolts, quasi square wave, andpair balance
Identifies shorts, opens, crosses and grounds
Replaces the need for other meters
Provides tone for twisted pair or crossed conductor identification
Single set-up for testing Tip-Ring, Tip-Ground, and Ring-Ground with ground connection
Field replaceable leads
Softcase with adjustable hook
Low battery indicator light
SPECIFICATIONS AC Voltage : 0 - 200 V RMS
DC Voltage : 0 - 100 VDC
Dimensions : 10.750 IN X 4.250 IN X 2.500 IN
Leakage : RX10K: Reads 0 To 20 MOHM
Power : Four AA batteries
Replacement Part : 1134-1002S Case
Resistance : RX1: Reads 0 To 2000 OHM, RX1K: Reads 0 To 2 MOHM
StorageOperatingTemperature : -4 To 140 DEG F
Stress Test : 0 To 82 DBRNC
Sub Brand : Sidekick
Type : V.O.C.
Voltage Measurement :
0 - 100 VDC
0 - 200 VAC RMS
Weight : 2.000 LB
CAT #: 1143-5000 UPC: 50605270/783310605270
