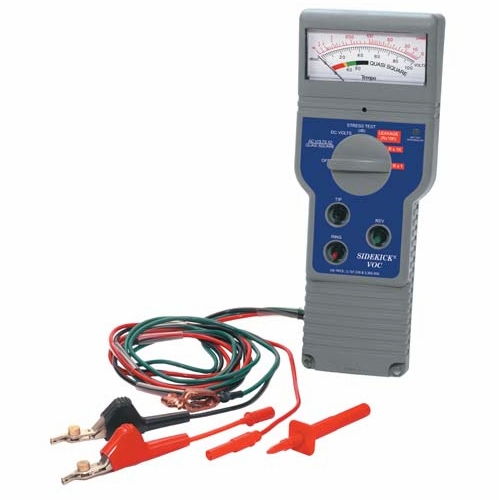

TEMPO 1143-5000 SIDEKICK V.O.C. (REPAIRED) VOC
Available*
Item # 23675000
Model # 1143-5000
$630.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Meters
Test Equipment
Subscriber Loop Tester
Multimeters-VOM-Brownie
Tempo Communications, Inc.
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 1143-5000 SIDEKICK V.O.C. (REPAIRED) VOC A P P L I C A T I O N S :
The Sidekick is the test set used by every major communications company in the United States to troubleshoot twisted pair applications. This lightweight, hand-held meter quickly and accurately uncovers intermittent troubles that other test sets can’t detect. Since the introduction of the patented Stress Test and
the Leakage Test in 1991, the Sidekick has become a benchmark in communications technology. Technicians now have the versatility to identify faults in inside wiring, such as bad jacks, opens, high resistance faults, series resistance faults, and defective splices. The versatile Sidekick is used to troubleshoot inside
wiring and qualify its use for quality voice over service.
The STRESS TEST reads the audible noise produced on a faulted pair that is stressed by a 90 dBrnC longitudinal excitation. The Stress Test determines the capacitive and series resistance balance characteristics of twisted pair at any point along the pair. It is capable of identifying DC resistive or capacitive imbalances undetected by other subscriber loop tests. The Stress Test is also highly effective in identifying imbalances produced by series resistance opens (high joints).
The LEAKAGE TEST detects intermittent resistance faults that do not appear under normal VOM tests. When a faulted pair is taken out of service, galvanic action forms an insulating oxide layer over the faults. When returned to service, such pairs develop "noisy static" in a relatively short period of time. The Leakage Test uses 135 Volts to "punch through" the oxide layer and reveal the fault.

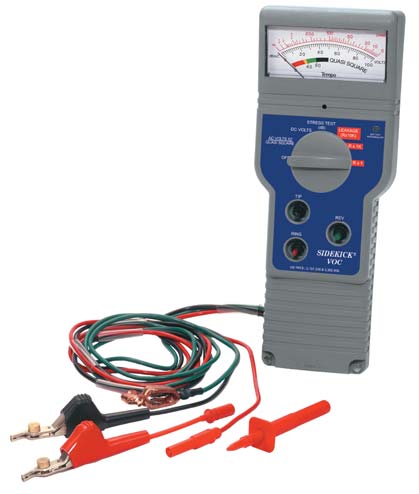

Sidekick V.O.C.
F E A T U R E S : Identifies defective Inside Wire and jacks. Measures resistance, AC/DC volts, quasi square wave, and pair balance. Identifies shorts, opens, crosses and grounds. Replaces the need for other meters. Provides tone for twisted pair or crossed conductor identification. Single set-up for testing Tip-Ring, Tip-Ground, and Ring-Ground with ground connection. Field replaceable leads. Softcase with adjustable hook. Low Battery indicator light.
S P E C I F I C A T I O N S Dimensions 10.75 x 4.25 x 2.5 inches Weight 2 lbs. Resistance Rx1: Reads 0 to 2000 Ohms Rx1K: Reads 0 to 2 Megohms Leakage Rx10K: Reads 0 to 20 Megohms DC Voltage 0 to 100 Volts DC AC Voltage 0 to 200 Vrms Stress Test 0 to 82 dBrnC Operating Temp. -20°C to +60°C
Part Number: 1143-5000 Power Four AA batteries
The STRESS TEST reads the audible noise produced on a faulted pair that is stressed by a 90 dBrnC longitudinal excitation. The Stress Test determines the capacitive and series resistance balance characteristics of twisted pair at any point along the pair. It is capable of identifying DC resistive or capacitive imbalances undetected by other subscriber loop tests. The Stress Test is also highly effective in identifying imbalances produced by series resistance opens (high joints).
The LEAKAGE TEST detects intermittent resistance faults that do not appear under normal VOM tests. When a faulted pair is taken out of service, galvanic action forms an insulating oxide layer over the faults. When returned to service, such pairs develop "noisy static" in a relatively short period of time. The Leakage Test uses 135 Volts to "punch through" the oxide layer and reveal the fault.
Sidekick V.O.C.
F E A T U R E S : Identifies defective Inside Wire and jacks. Measures resistance, AC/DC volts, quasi square wave, and pair balance. Identifies shorts, opens, crosses and grounds. Replaces the need for other meters. Provides tone for twisted pair or crossed conductor identification. Single set-up for testing Tip-Ring, Tip-Ground, and Ring-Ground with ground connection. Field replaceable leads. Softcase with adjustable hook. Low Battery indicator light.
S P E C I F I C A T I O N S Dimensions 10.75 x 4.25 x 2.5 inches Weight 2 lbs. Resistance Rx1: Reads 0 to 2000 Ohms Rx1K: Reads 0 to 2 Megohms Leakage Rx10K: Reads 0 to 20 Megohms DC Voltage 0 to 100 Volts DC AC Voltage 0 to 200 Vrms Stress Test 0 to 82 dBrnC Operating Temp. -20°C to +60°C
Part Number: 1143-5000 Power Four AA batteries
