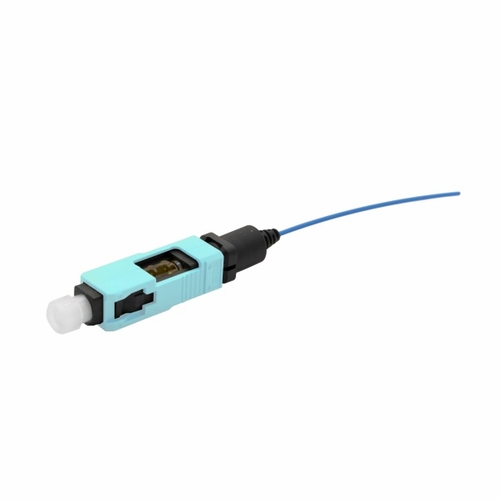

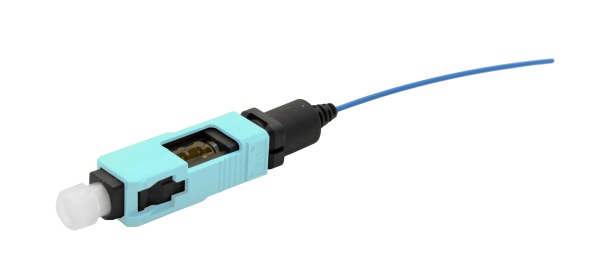

Multilink 066-132-10 Multimode SC/UPC Connector Aqua Housing 50/125 OM4 Surelight Field Installable
Multilink 066-132-10 Multimode SC/UPC Connector Aqua Housing 50/125 OM4 Surelight Field Installable
Surelight® Field Installable Connector - SC/UPC, Multimode, 250um/900um 066-132-10 SC/UPC, Multimode, 250um/900um
General Specifications Nominal Fiber OD 125um Reusable/Times Yes/5 Durability < .3 dB, 500 Rating Technology Epoxy Free No Polish Tension < .2 dB, Change 3kg Intermateibility TIA/EIA 604-3 Installation Time 3-5 Minutes
General Specifications Product Type Field Installable Connector
Fiber Specifications Fiber Category Multimode (OM2) Multimode (OM3) Multimode (OM4) Cable Compatibility 250um/900um Insertion Loss Typical 0.3 dB Reflectance, Typical #1 < -50 dB
Connector Specifications Polish UPC Connector Type SC/UPC Housing Color Black Housing Material Composite Boot Color Gray Ferrule Material Zirconia
Environmental Specifications Operating Temperature -40°C to +75°C
Safety Standard Specifications Standards EIA/TIA 568-B.3
Multilink 066-132-10 Multimode SC/UPC Connector Aqua Housing 50/125 OM4 Surelight Field Installable
Surelight® Field Installable Connector - SC/UPC, Multimode, 250um/900um 066-132-10 SC/UPC, Multimode, 250um/900um
General Specifications Nominal Fiber OD 125um Reusable/Times Yes/5 Durability < .3 dB, 500 Rating Technology Epoxy Free No Polish Tension < .2 dB, Change 3kg Intermateibility TIA/EIA 604-3 Installation Time 3-5 Minutes
General Specifications Product Type Field Installable Connector
Fiber Specifications Fiber Category Multimode (OM2) Multimode (OM3) Multimode (OM4) Cable Compatibility 250um/900um Insertion Loss Typical 0.3 dB Reflectance, Typical #1 < -50 dB
Connector Specifications Polish UPC Connector Type SC/UPC Housing Color Black Housing Material Composite Boot Color Gray Ferrule Material Zirconia
Environmental Specifications Operating Temperature -40°C to +75°C
Safety Standard Specifications Standards EIA/TIA 568-B.3
