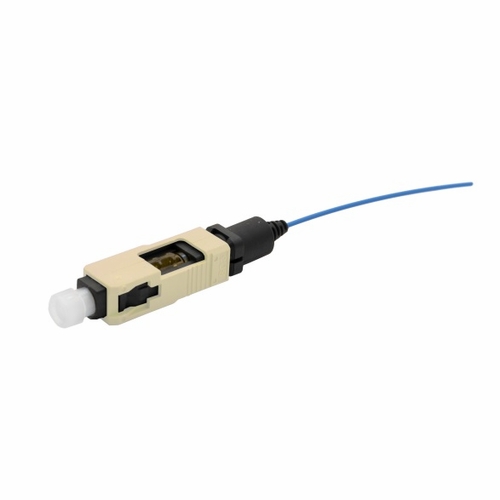

Multilink 066-027-10 Multimode Sc/Upc Connector Beige Housing 62.5/125 Om1 Surelight Field Installa
Available*
Item # 51296305
Model # 066-027-10
$7.59
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
CONNECTOR
Fiber Optic Products
Fusion And Mechanical Splicing
Fiber Mechanical- Glue On Connector
MULTILINK
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

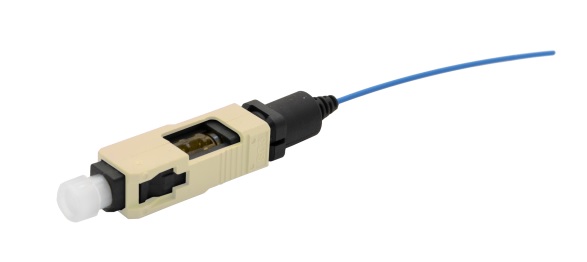

Multilink 066-027-10 Multimode Sc/Upc Connector Beige Housing 62.5/125 Om1 Surelight Field Installa
Multilink 066-027-10 Multimode Sc/Upc Connector Beige Housing 62.5/125 Om1 Surelight Field Installable
Surelight® Field Installable Connector - Sc/Upc, Multimode, 250Um/900Um 066-027-10 Sc/Upc, Multimode, 250Um/900Um
General Specifications Nominal Fiber Od 125Um Intermateibility Tia/Eia 604-3 Installation Time 3-5 Minutes Reusable/Times Yes/5 Durability < .3 Db, 500 Rating Technology Epoxy Free No Polish Tension < .2 Db, Change 3Kg
General Specifications Product Type Field Installable Connector
Fiber Specifications Cable Compatibility 250Um/900Um Fiber Category Multimode (Om1) Reflectance, Typical #1 < -50 Db Insertion Loss Typical 0.3 Db
Connector Specifications Polish Upc Connector Type Sc/Upc Boot Color Gray Ferrule Material Zirconia Housing Material Composite Housing Color Beige
Environmental Specifications Operating Temperature -40°C To +75°C
Safety Standard Specifications Standards Eia/Tia 568-B.3
Multilink 066-027-10 Multimode Sc/Upc Connector Beige Housing 62.5/125 Om1 Surelight Field Installable
Surelight® Field Installable Connector - Sc/Upc, Multimode, 250Um/900Um 066-027-10 Sc/Upc, Multimode, 250Um/900Um
General Specifications Nominal Fiber Od 125Um Intermateibility Tia/Eia 604-3 Installation Time 3-5 Minutes Reusable/Times Yes/5 Durability < .3 Db, 500 Rating Technology Epoxy Free No Polish Tension < .2 Db, Change 3Kg
General Specifications Product Type Field Installable Connector
Fiber Specifications Cable Compatibility 250Um/900Um Fiber Category Multimode (Om1) Reflectance, Typical #1 < -50 Db Insertion Loss Typical 0.3 Db
Connector Specifications Polish Upc Connector Type Sc/Upc Boot Color Gray Ferrule Material Zirconia Housing Material Composite Housing Color Beige
Environmental Specifications Operating Temperature -40°C To +75°C
Safety Standard Specifications Standards Eia/Tia 568-B.3
