GREENLEE DM-510A-C DMM TRMS AC/DC(DM-510A)(CALIB) 52047811/783310357582
Available*
Item # 80006272
Model # 783310357582
$352.77
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.

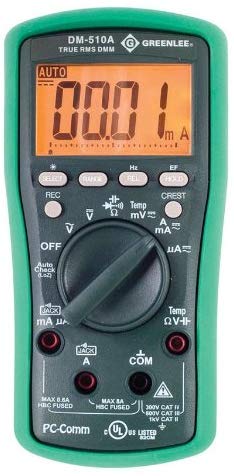

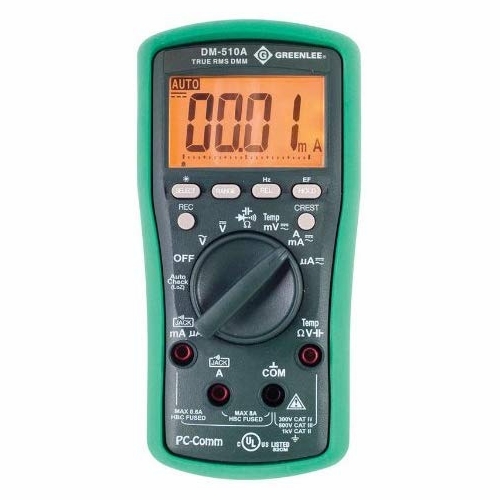

(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Multimeter
Test Equipment
Multimeters-VOM-Brownie
Digital
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE DM-510A-C DMM,TRMS,AC/DC(DM-510A)(CALIB) 52047811/783310357582 NEW
DESCRIPTION: DMM,TRMS,AC/DC(DM-510A)(CALIB)
Measures voltage, current, resistance and frequency Tests continuity and diodes Backlit LCD with 6,000 count display Two voltage detection modes - non-contact or using a single test lead BeepJack warns when test leads are incorrectly inserted in current measurement terminals Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging Lifetime Limited Warranty Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot True RMS for no-compromise accuracy Crest capture (peak hold) plus recording of max, min, max-min and average Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity, Low impedance masks ghost voltage pickup Measures capacitance Measures temperature using a type K thermocouple Includes Certificate of Calibration
SPECIFICATIONS:
Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 8A Battery : (2) 1.5 V AAA Capacitance : 60, 600 nF; 6, 60, 600, 3000?F Display : Backlit LCD With 6,000 Count Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V Replacement Part : TSG-3 Sure-Grip Test Leads Resistance Measurement : 600?; 6, 60, 600 k?; 6, 60 M? Standard : CAT IV, CAT III, CAT II, C/ULUS Listed, CE Listed Sub Brand : ESM Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) Type : Professional Plant Digital Voltage Measurement : 60, 600 mV; 6, 60, 600, 1000V
WEIGHT: 1.39 lbs
CAT #: DM-510A-C UPC #: 52047811/783310357582
