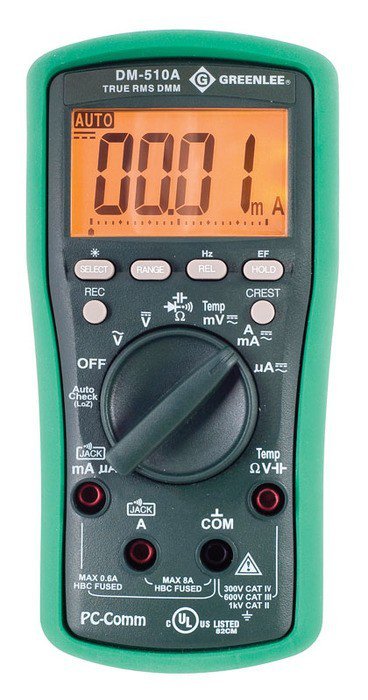

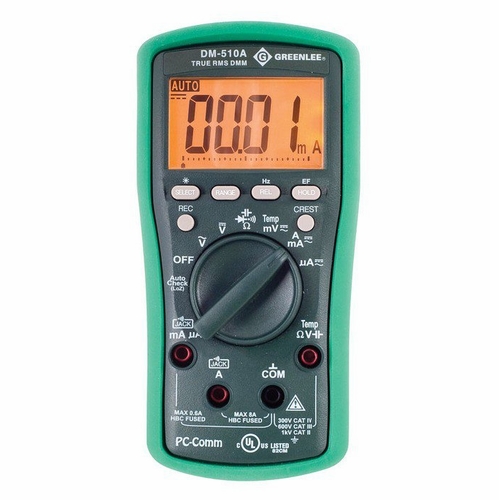

GREENLEE DM-510A DMM TRMS AC/DC CAP TEMP(DM-510A) 52047803/783310087427
Available*
Item # 80006271
Model # 783310087427
$199.35
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Multimeter
Test Equipment
Multimeters-VOM-Brownie
Digital
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE DM-510A DMM,TRMS,AC/DC,CAP,TEMP(DM-510A) 52047803/783310087427 NEW
DESCRIPTION:DMM,TRMS,AC/DC,CAP,TEMP(DM-510A) Measures voltage, current, resistance and frequency
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes - non-contact or using a single test lead BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging Lifetime Limited Warranty Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot True RMS for no-compromise accuracy Crest capture (peak hold) plus recording of max, min, max-min and average Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity, Low impedance masks ghost voltage pickup
Measures capacitance Measures temperature using a type K thermocouple
SPECIFICATIONS: Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 8A Battery : (2) 1.5 V AAA Capacitance : 60, 600 nF; 6, 60, 600, 3000?F
Display : Backlit LCD With 6,000 Count Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, ProtectiveBoot Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Replacement Part : TSG-3 Sure-Grip Test Leads
Resistance Measurement : 600?; 6, 60, 600 k?; 6, 60 M?
Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed Sub Brand : ESM
Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C Type : Professional Plant Digital Voltage Measurement : 60, 600 mV, 6, 60, 600, 1000V
WEIGHT1.39 LBS
CT #: DM-510A
UPC #: 52047803/783310087427
PRODUCTS > Electric Test Instruments > MULTIMETERS > C/I Digital Multimeters > DMM,TRMS,AC/DC,CAP,TEMP(DM-510A)
DESCRIPTION:DMM,TRMS,AC/DC,CAP,TEMP(DM-510A) Measures voltage, current, resistance and frequency
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes - non-contact or using a single test lead BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging Lifetime Limited Warranty Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot True RMS for no-compromise accuracy Crest capture (peak hold) plus recording of max, min, max-min and average Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity, Low impedance masks ghost voltage pickup
Measures capacitance Measures temperature using a type K thermocouple
SPECIFICATIONS: Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 8A Battery : (2) 1.5 V AAA Capacitance : 60, 600 nF; 6, 60, 600, 3000?F
Display : Backlit LCD With 6,000 Count Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, ProtectiveBoot Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Replacement Part : TSG-3 Sure-Grip Test Leads
Resistance Measurement : 600?; 6, 60, 600 k?; 6, 60 M?
Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed Sub Brand : ESM
Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C Type : Professional Plant Digital Voltage Measurement : 60, 600 mV, 6, 60, 600, 1000V
WEIGHT1.39 LBS
CT #: DM-510A
UPC #: 52047803/783310087427
PRODUCTS > Electric Test Instruments > MULTIMETERS > C/I Digital Multimeters > DMM,TRMS,AC/DC,CAP,TEMP(DM-510A)
