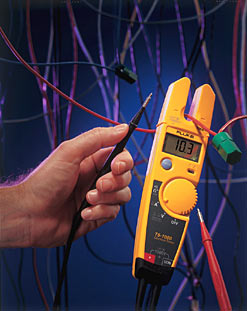

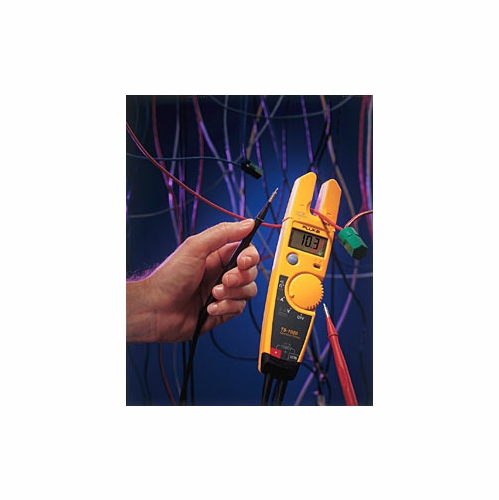

FLUKE T5-600 VOLTAGE, CONTINUITY AND CURRENT TESTER Automatically measures volts ac and volts dc with precise digital resolution
Displays resistance to 1000O
Easy and accurate OpenJaw™ current measurement
Continuity beeper
Compact design with neat probe storage
Rugged enough to withstand a 10-foot (3m) drop
Detachable SlimReach™ probe tips are customized for national electrical standards
Test leads accept Fluke accessory test clips
600V model
Can stay connected much longer than solenoid type tester
Auto off mode to conserve battery life
Optional holster attaches to a belt and neatly stows test leads
AC current
Display hold
Safety Conformance
All inputs of the T5-600 are protected to EN61010-1 CAT III 600V. UL, CSA and VDE listed
Specifications Jaw opening 12.9 mm (0.5 in) Max wire size 1/0 THHN Cable Current range ac rms 0 to 100.0 A Accuracy ac current (50/60 Hz) 3 % ± 3 counts AC Response Averaging Voltage range ac 0 to 600 V Accuracy ac voltage 1.5 % ± 2 counts Voltage range dc 0 to 600 V Accuracy dc voltage 1 % ± 1 count Resistance range 0 to 1000 O Continuity beeper threshold On at <25 O, off at >400 O Volts indicator LED threshold Guaranteed on by 30 V ac
Environmental Specifications Operating Temperature -10 °C to 50 °C Storage Temperature -30 °C to 60 °C Humidity (Without Condensation) 0 % to 95 % (5 °C to 30 °C); 0 % to 75 % (30 °C to 40 °C); 0 % to 45 % (40 °C to 50 °C) Dust/water resistance Yes Operating Altitude 2000 meters max Temperature Coefficient 0.1 x (specified accuracy)/°C (<18 °C or >28 °C)
Safety Specifications Overvoltage category CAT III 600 V ac/dc (EN61010-1) Agency Approvals UL, CSA, and VDE Maximum voltage Between any terminal and earth ground
Mechanical and General Specifications Size 30.5 mm x 51 mm x 203 mm Weight 300g Warranty Two-years Battery Life 200 hour zinc chloride, 400 hour alkaline Battery type 2 x AA Low battery indicator Yes Current sensor opening 12.9 mm Calibration cycle 1 year Test leads Type: Heavy duty, flexible leads rated for 1000V use. Field replaceable leads terminate in male shrouded banana plugs Probes: One red, one black. Detachable Slim-Reach™ probe tips Styles: TP1 Slim Reach™ Test Probes
Fluke T5-600 Voltage Tester Includes: 600V Voltage, continuity and current tester 4 mm detachable probes Instruction sheet
