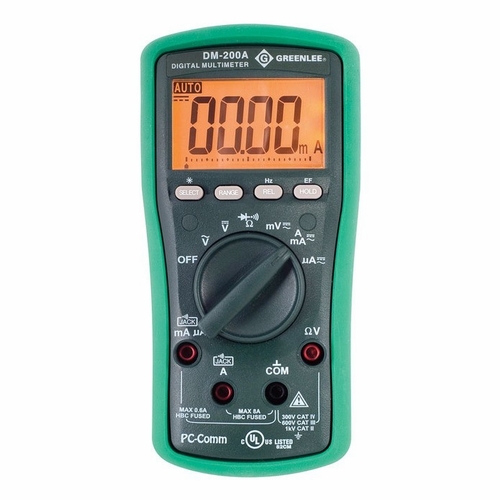

GREENLEE DM-200A-C DMM 1KV AC/DC(DM-200A)(CALIB) 52047809/783310357568
Available*
Item # 80006259
Model # 783310357568
$256.15
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Multimeter
Test Equipment
Multimeters-VOM-Brownie
Digital
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

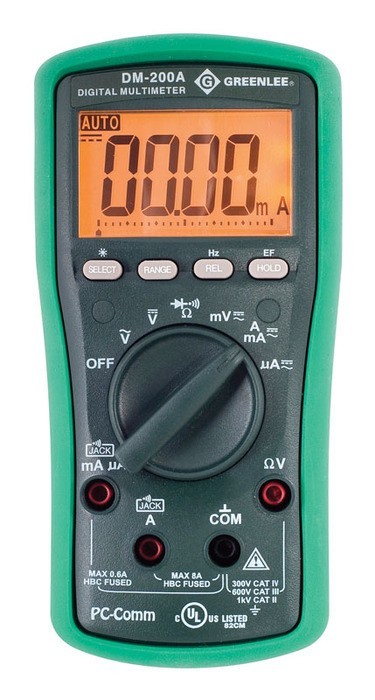

GREENLEE DM-200A-C DMM,1KV AC/DC(DM-200A)(CALIB) 52047809/783310357568 NEW
DESCRIPTION: DMM, 1000V AC/DC (DM-200A)
Measures voltage, current, resistance and frequency Tests continuity and diodes Backlit LCD with 6,000 count display Two voltage detection modes - non-contact or using a single test lead Beepjack warns when test leads are incorrectly inserted in current measurement terminals Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB / RS-232 Interface DMSC-2U For direct-to-PC logging Lifetime Limited Warranty Includes Certificate of Calibration
SPECIFICATIONS:
Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 8A Battery : (2) 1.5 V AAA Capacitance : 60, 600nF; 6, 60, 600, 3000?F Display : Backlit LCD With 6,000 Count Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz- 999.9kHz Logic Level Square Wave Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, Protective Boot Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V Replacement Part : TSG-3 Sure-Grip Test Leads Resistance Measurement : 600?; 6, 60, 600 k?; 6, 60 M? Standard : CAT IV, CAT III, CAT II, C/ULUS Listed, CE Listed Sub Brand : ESM Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) Type : Digital Voltage Measurement : 60, 600 mV; 6, 60, 600, 1000V
WEIGHT : 1.35 lbs
CAT #: DM-200A-C UPC # 52047809/783310357568
