GREENLEE DM-200A DMM 1000V AC/DC (DM-200A) 52047801/783310087403
Available*
Item # 80006258
Model # 783310087403
$114.06
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Multimeter
Test Equipment
Multimeters-VOM-Brownie
Digital
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

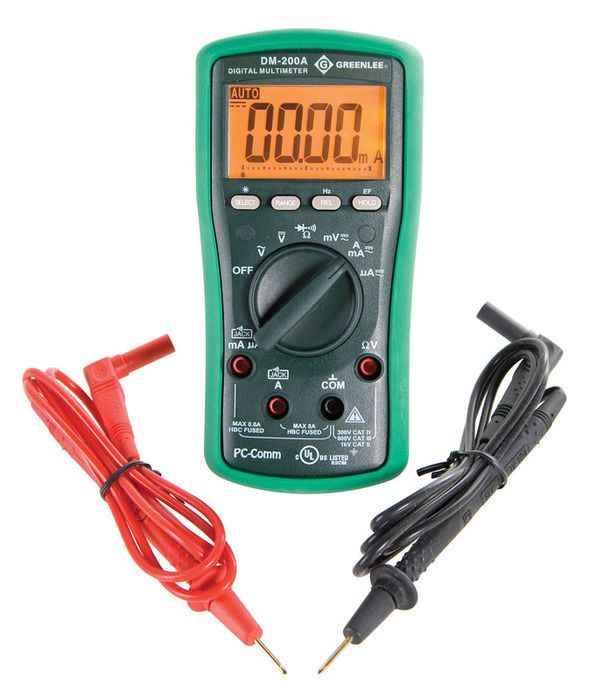

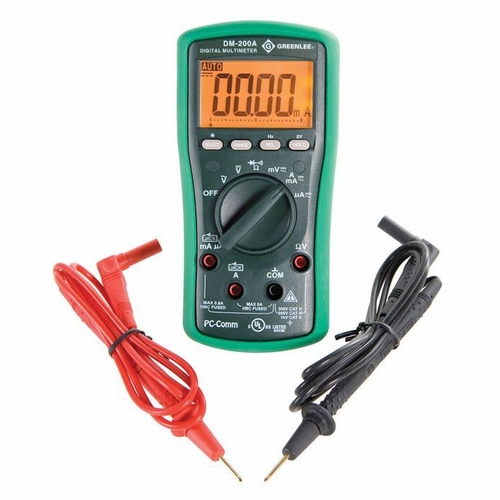

GREENLEE DM-200A DMM, 1000V AC/DC (DM-200A) 52047801/783310087403 NEW
DESCRIPTION: DMM, 1000V AC/DC (DM-200A)
Measures voltage, current, resistance and frequency Tests continuity and diodes Backlit LCD with 6,000 count display Two voltage detection modes - non-contact or using a single test lead BeepJack warns when test leads are incorrectly inserted in current measurement terminals Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging Lifetime Limited Warranty Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
SPECIFICATIONS:
Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 8A Battery : (2) 1.5 V AAA Capacitance : 60, 600 nF; 6, 60, 600, 3000?F Display : Backlit LCD With 6,000 Count Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V Replacement Part : TSG-3 Sure-Grip Test Leads Resistance Measurement : 600 ?; 6, 60, 600 k?; 6, 60 M? Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed Sub Brand : ESM Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) Type : Digital Voltage Measurement : 60, 600 mV; 6, 60, 600, 1000V
WEIGHT : 1.35 lbs
CAT #: DM-200A UPC # 52047801/783310087403
PRODUCTS > Electric Test Instruments > MULTIMETERS > C/I Digital Multimeters > DMM, 1000V AC/DC (DM-200A)
DESCRIPTION: DMM, 1000V AC/DC (DM-200A)
Measures voltage, current, resistance and frequency Tests continuity and diodes Backlit LCD with 6,000 count display Two voltage detection modes - non-contact or using a single test lead BeepJack warns when test leads are incorrectly inserted in current measurement terminals Automatic and manual range selection Relative offset mode to see changes in measurements Data hold Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging Lifetime Limited Warranty Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
SPECIFICATIONS:
Amperage Measurement : 600, 6000?A; 60, 600mA; 6, 8A Battery : (2) 1.5 V AAA Capacitance : 60, 600 nF; 6, 60, 600, 3000?F Display : Backlit LCD With 6,000 Count Frequency Measurement : 10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave Includes : (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot Measurement Category : CAT IV 300 V, CAT III 600 V, CAT II 1000 V Replacement Part : TSG-3 Sure-Grip Test Leads Resistance Measurement : 600 ?; 6, 60, 600 k?; 6, 60 M? Standard : CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed Sub Brand : ESM Temperature Rating : K Type, -58 To 1832°F (-50 To 1000°C) Type : Digital Voltage Measurement : 60, 600 mV; 6, 60, 600, 1000V
WEIGHT : 1.35 lbs
CAT #: DM-200A UPC # 52047801/783310087403
PRODUCTS > Electric Test Instruments > MULTIMETERS > C/I Digital Multimeters > DMM, 1000V AC/DC (DM-200A)
