Product Description

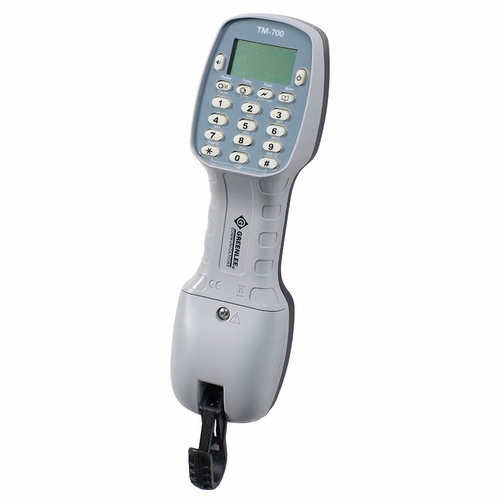

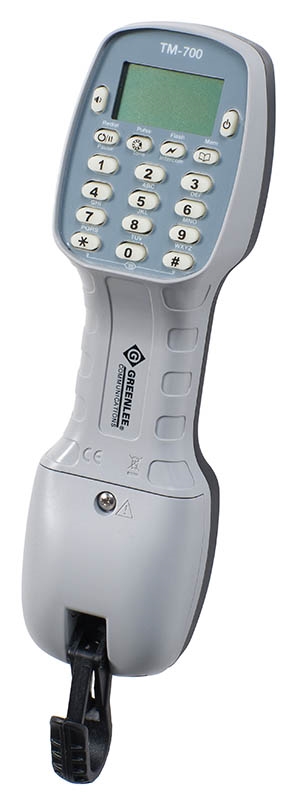

Greenlee Tm-700 Butt Set, Telemate 700 (Pos) (Tm-700) 52061409/783310009849 New
Description:
Lcd (96 X 48 Pixels, 5 Lines) Displays The Following: Caller Id (Name And Number) And Call Waiting
Dialed Number
Over-Voltage Conditions
Phone Status (Monitor, On Hook Etc.)
Line Voltage: 110 Vdc Max
Loop Current: 125 Ma Max
Ring Frequency: 15?70 Hz. High Impedance Monitor Enables Use On Dsl Line.
Ergonomic Shape.
32 Digit Memories.
10 X Speed Dial Memories Plus Ten "Last Number Redial" Stores.
Over Voltage And Over Current Protection And Warning.
Tone And Pulse Dialling For Versatility.
Flash Key For Timed-Break Recall.
Pause Which Can Be Stored.
Headset Included For Hands-Free Operation (Hs-001).
Rj11 Socked And Anchorage For Strain Relieved Cords.
Several Cord Options Cs-01, Cs-02, Cs-03, Cs-04, Cs-05, Cs-06, Cs-07.
Cordset With Large "Angled Nose With Bed-Of-Nails And Spike" Plus Rj11 Plug.
Specifications:
Application : Test Telephone With High-Impedance Monitor, Lcd, Smart Intercom, Calling Line Id, Pair Tracing Toner, Dtmf Decoding, Multiple Last-Number Redial And Ten Speed-Dial Memories
Dc Voltage : Tnv-3 Working, 500 V Peak, 1500 V Transient
Dimensions : 9.25 (235 Mm) Length X 2.5 (64 Mm) Width X 3.25 (83 Mm) Height
Leakage : > 10 M Ohms
Loop Current :
< 10 Ma < I < 125 Ma
Replacement Part : Replaces Pe830, Spares Cs-01,Cs-02, Cs-03, Cs-04, Cs-05, Cs-06, Cs-07, Hs-001
Standard : Tia/Eia-470-B And Etsi
Storageoperatingtemperature : -10 C To +70 C, <95% Humiditystorage, 0 C To +50 C, <90 % Humidity (No Condensation) Operating
Sub Brand : Tele-Mate
Type : Tele-Mate Pro
Voltage Measurement : 110 V Dc Max
Cat #: Tm-700 Upc # 52061409/783310009849
