PRO foot S KIT MT-8006B DATA DRIVER ( )
Available*
Item # 24057700
Model # MT-8006B
$160.65
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Buttsets
Test Equipment
Butt sets-Dial Sets- Butt ins
2 Way Speaker- Handsfree
Viavi (JDS Uniphase)
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

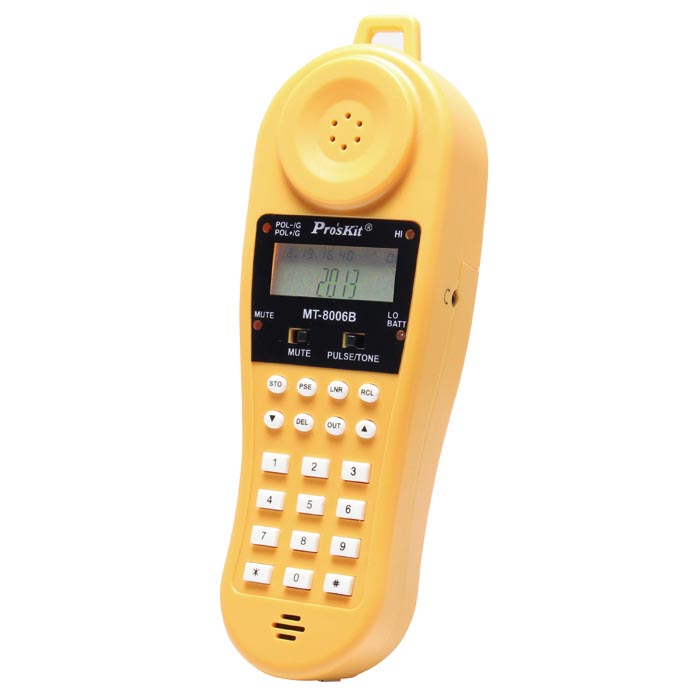

ACTERNA/JDSU/TTC PRO'S KIT MT-8006B DATA DRIVER (NEW) Includes:
1 Data Diver
2 Angled bed of nails and RJ-11 plug
3 Handset
4 User Manual
Features
LCD display for dialing number, Caller ID, Clock and other information Indicator for determining the Line service and speed High impedance monitor for data safe operation without disrupting existing traffic. Smart power saving enables battery life up to 6 months 12 phone number memory for speed dialing 16 dialing number memories Tone (DTMF) and pulse operation Up to 32 digits phone number memory for speed dialing key Pre-dialing and last number redial function PBX pause key, insert a PBX pause in stored numbers Telephone line polarity indicators Low battery indication Backlight function RJ-11 port for easy test leads change Ringer and voltage LED indication Angled bed of nails and RJ-11 plug
Specification
ELECTRICAL Loop limit 2 KO maximum at 48 Vdc (nominal 20 mA minimum loop current) DC resistance Talk Mode 300O typical Monitor impedance >39kO nominal at 1 KHz Rotary dial output Pulsing rate 10pps+0.8pps Percent break 60/40%±2% Inter digit interval 1000 ms typical Leakage during Break >130 KO DTMF output Tone frequency error ±1.5% maximum Tone level -8±2dBm combined (typical) High versus low tone 4 dB maximum Memory dialing Memory capacity 12 memories Digit capacity 16 digits per memory PBX pause duration 1~.6 seconds Power source 4pcs 1.5V AAA batteries (not included) PHYSICAL(Hook included) Measurement 218.5 ×69.5 × 49mm (8.6” × 2.7” × 1.9”) Weight 208g typical
Features
LCD display for dialing number, Caller ID, Clock and other information Indicator for determining the Line service and speed High impedance monitor for data safe operation without disrupting existing traffic. Smart power saving enables battery life up to 6 months 12 phone number memory for speed dialing 16 dialing number memories Tone (DTMF) and pulse operation Up to 32 digits phone number memory for speed dialing key Pre-dialing and last number redial function PBX pause key, insert a PBX pause in stored numbers Telephone line polarity indicators Low battery indication Backlight function RJ-11 port for easy test leads change Ringer and voltage LED indication Angled bed of nails and RJ-11 plug
Specification
ELECTRICAL Loop limit 2 KO maximum at 48 Vdc (nominal 20 mA minimum loop current) DC resistance Talk Mode 300O typical Monitor impedance >39kO nominal at 1 KHz Rotary dial output Pulsing rate 10pps+0.8pps Percent break 60/40%±2% Inter digit interval 1000 ms typical Leakage during Break >130 KO DTMF output Tone frequency error ±1.5% maximum Tone level -8±2dBm combined (typical) High versus low tone 4 dB maximum Memory dialing Memory capacity 12 memories Digit capacity 16 digits per memory PBX pause duration 1~.6 seconds Power source 4pcs 1.5V AAA batteries (not included) PHYSICAL(Hook included) Measurement 218.5 ×69.5 × 49mm (8.6” × 2.7” × 1.9”) Weight 208g typical
