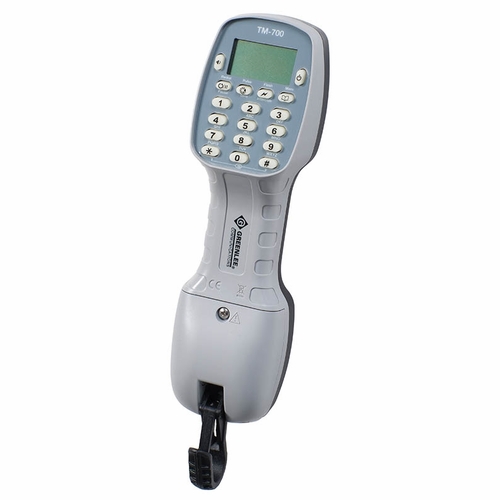

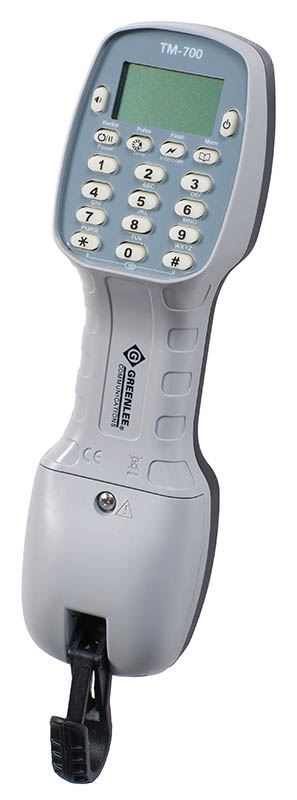

TEMPO TM-700UK BUTT SET, TM-700UK (UK PLUG & BOX) 52063088/783310009788
Available*
Item # 79995390
Model # 783310009788
$229.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE TM-700UK BUTT SET, TM-700UK (UK PLUG & BOX) 52063088/783310009788 NEW
DESCRIPTION:
LCD (96 x 48 pixels, 5 lines) displays the following: Caller ID (name and number) and Call Waiting Dialed number Over-voltage conditions Phone status (monitor, on hook etc.) Line Voltage: 110 Vdc max Loop Current: 125 mA max Ring Frequency: 15?70 Hz. High impedance monitor enables use on DSL line. Ergonomic shape. 32 digit memories. 10 x speed dial memories plus ten "last number redial" stores. Over voltage and over current protection and warning. Tone and pulse dialling for versatility. Flash key for timed-break recall. Pause which can be stored. Headset included for hands-free operation (HS-001). RJ11 socked and anchorage for strain relieved cords. Several cord options CS-01, CS-02, CS-03, CS-04, CS-05, CS-06, CS-07. UK plug on cordset
SPECIFICATIONS:Application : Test Telephone with High-impedance monitor, LCD, Smart Intercom, Calling Line ID, Pair tracing toner, DTMF decoding, Multiple last-number redial and ten speed-dial memories DC Voltage : TNV-3 working, 500 V peak, 1500 V TRANSIENT Dimensions : 9.25 (235 MM) Length X 2.5 (64 MM) Width X 3.25 (83 MM) Height Leakage : > 10 M ohms Loop Current : < 10 mA < I < 125 mA
Replacement Part : Replaces PE830, Spares CS-01,CS-02, CS-03, CS-04, CS-05, CS-06, CS-07, HS-001 Standard : TIA/EIA-470-B and ETSI StorageOperatingTemperature : -10 C to +70 C, <95% humidity storage, 0 C to +50 C, <90 % humidity (no condensation) operating Sub Brand : Tele-Mate Type : Tele-Mate Pro Voltage Measurement : 110 V dc ma
CAT #: TM-700UK UPC # 52063088/783310009788
