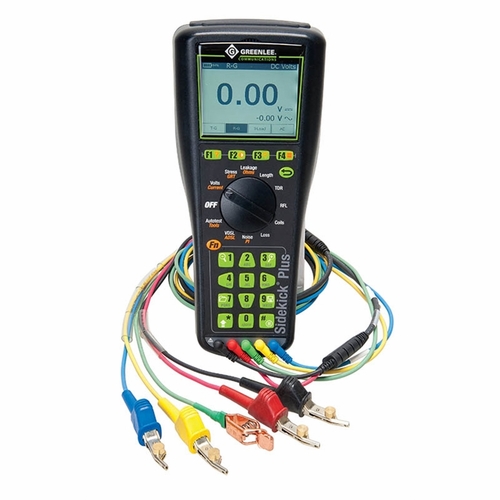

TEMPO 1155-5010 SIDEKICK PLUS, WIDEBAND & VDSL/ADSL, LCC 52064730 783310013181
Available*
Item # 79993090
Model # 783310013181
$5,884.70
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

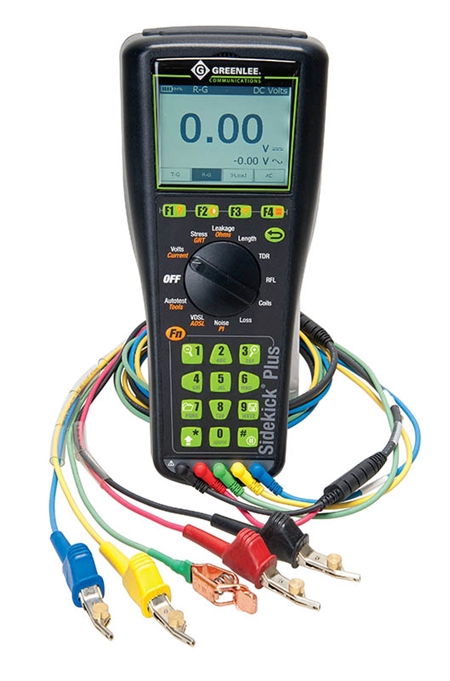

GREENLEE 1155-5010 SIDEKICK PLUS, WIDEBAND & VDSL/ADSL, LCC 52064730 783310013181 NEW
DESCRIPTION: 1 Gigaohm Insulation Resistance Advanced Pulse & Step TDR for improved accuracy, including auto-Bridge Tap detection Improved speed of test andsimple menu selection Long lasting, Li-Ion Rechargeable Batteries Comprehensive testing of voltage, current, resistance and other parameters of copper cables Patented stress balance test Measurement of distance to opens Line quality tests for noise, loss and power influence Multimode wire tracing tones Resistance fault locator (RFL) and calculator Built-in loudspeaker dialing with phone book memory Auto-test mode with Pass/Fail USB download of test results and field upload of software Analog meter or digital display selectable Big, easy-to-read 320 x 240 display with backlight Readable in bright sunlight Advanced cable diagnosis and troubleshooting in a single test set Easy to use Ground Resistance Testing Impulse Noise Testing to 35 Mhz 35 Mhz Wideband Spectrum Analysis, including Wideband Noise, Wideband Loss, and Longitudinal Noise 8.8 Mhz Loss Measurement Test VDSL / ADSL Modem Sync and Service Test: DSL Showtime, Bits per Tone, Signal-to-Noise Ratio, H-Log, Error Detect, IP Layer Testing (Ping, Trace-Route, HTTP and FTP)
SPECIFICATIONS:
AC Voltage : 250V Application : The Sidekick? Plus ADSL / VDSL comes complete with all you need to qualify, deploy, fault find and maintain xDSL networks Automatic Shut Off : Yes Battery Life : >8 Hours (Typical) Circuit Loss : -70 to +3dBm Circuit Noise : 0 to 90 dBrnC Construction : Rugged DC Voltage : 300V Dimensions : 279 x 121 x 76 mm (11 x 4.75 x 3 in) 305 x 140 x 114 mm (12 x 5.5 x 4.5 in) (in soft case) Environment : Rated EN 60529 level IP20CW -Drop Test MIL-STD-810F 516.4 Includes : Standard supplied accessories: Test Leads and RFL strap GREENLEE Record Manager Rechargeable Li-Ion battery pack and Alkaline battery holder Leakage : 1 G? at 150V Load Coil : 0 to 5 Loop Current : 110 mA Open : 0-5000 nF (approx 60 miles / 100 KM) Power : Li Ion battery Power Influence : 30 - 110 dBrnC (-60 to +20 dBm) Power Requirement : 110 V / 220 V - Universal PSU Replacement Part : Accessories - cordsets, carry case, PSU, in-vehicle charger 12 V lead Resistance : 100M?? RFL : Yes StorageOperatingTemperature : Operates at 0 to 120ø F (-18 to 50øC) Stress Balance : 0 to 82 dBrnC Sub Brand : GREENLEE Communications TDR Range : 33 kft (10 km) Pulse TDR and 3.3 KFT (1KM) STEP TDR Transmitter Frequency : 4.4MHz Transmitter Power : +1 to -20dBm Type : Telecommunications Test Equipment Voltage Protection : TNV-3 Weight : 1.4 kg (3 lb) (includes Li-ion battery pack, soft case, and test leads) Capacitance : /Length >100km Earth / Ground Resistance Test : 250?? Longitudinal Balance : Yes Leakage / Insulation : 999M??
CAT #: 1155-5010 UPC #: 52064730 / 783310013181
