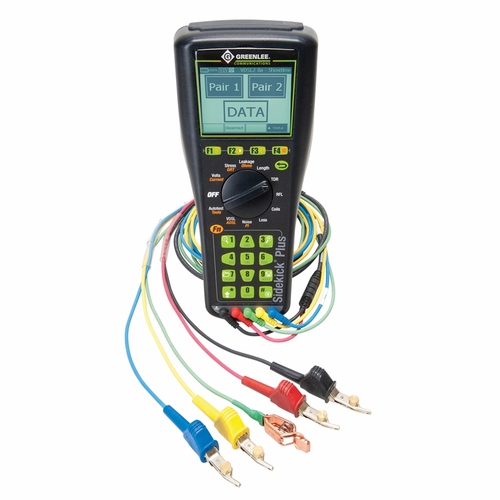

TEMPO 1155-5012 SIDEKICK PLUS, WIDEBAND & BONDED, LCC 783310041979 /52070010
Available*
Item # 79992950
Model # 783310041979
$5,801.81
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 1155-5012 SIDEKICK PLUS, WIDEBAND & BONDED, LCC 783310041979 /52070010 NEW
DESCRIPTION:
Bonded Modem with xDSL Two-pair bonding ADSL2+/VDSL2+ Vectoring Broadcom GL-168 Automated test scripts USB export/import of test results/profiles 35MHz Wideband Noise Spectrum Analysis 4.4MHz Loss Measurement Test 35MHz Impulse Noise Step TDR with Auto Bridge Tap Detection (Zero Dead Zone) DSL Showtime Bits per Tone Signal-to-Noise Ratio HLOG Error Detect Upper Layer Testing Ping, Trace-Route, (HTTP and FTP) Advanced Dual Trace Pulse TDR (Zero Dead Zone) Resistive Fault Locator (Detects up to 20M?) 1G? Leakage Test (Insulation Resistance) Longitudinal Balance Test Ground Resistance Test Quite Line Noise (QLN) Test Stress Test AC/DC Voltage Resistance Open Meter Loop Current Circuit Loss Tracing Tone Generator Reference Tone
SPECIFICATIONS:
AC Voltage : 250V Application : Install, qualify, and troubleshoot bonded xDSL networks Circuit Loss : -70 to +3dBm Circuit Noise : 0 to 90 dBrnC DC Voltage : 300V Dimensions : 279 x 121 x 76 mm (11 x 4.75 x 3 in); 305 x 140 x 114 mm (12 x 5.5 x 4.5 in) (in soft case) Leakage : 1 G? at 150V Length : 0 to 5,000 nF (5 æF) Loop Current : 110 mA Power : Li-ion battery Power Influence : 30 - 100 dBrnC (-60 to +20 dBm) Replacement Part : Accessories - cordsets, carry case, PSU, in-vehicle charger 12 V lead Resistance : 100M? StorageOperatingTemperature : Operates at 0 to 120ø F (-18 to 50øC) Stress Test : 0 to 82 dBrnC Type : Telecommunications test equipment Voltage Measurement : TNV-3 Weight : 1.8 kg (4 lbs) (includes Li-ion battery pack, soft case, and test leads)
CAT #: 1157-5012 UPC #: 783310041979 /52070010 Products > Telco Instruments > GENERAL TEST > SideKick Plus > SIDEKICK PLUS, WIDEBAND & BONDED, LCC
DESCRIPTION:
Bonded Modem with xDSL Two-pair bonding ADSL2+/VDSL2+ Vectoring Broadcom GL-168 Automated test scripts USB export/import of test results/profiles 35MHz Wideband Noise Spectrum Analysis 4.4MHz Loss Measurement Test 35MHz Impulse Noise Step TDR with Auto Bridge Tap Detection (Zero Dead Zone) DSL Showtime Bits per Tone Signal-to-Noise Ratio HLOG Error Detect Upper Layer Testing Ping, Trace-Route, (HTTP and FTP) Advanced Dual Trace Pulse TDR (Zero Dead Zone) Resistive Fault Locator (Detects up to 20M?) 1G? Leakage Test (Insulation Resistance) Longitudinal Balance Test Ground Resistance Test Quite Line Noise (QLN) Test Stress Test AC/DC Voltage Resistance Open Meter Loop Current Circuit Loss Tracing Tone Generator Reference Tone
SPECIFICATIONS:
AC Voltage : 250V Application : Install, qualify, and troubleshoot bonded xDSL networks Circuit Loss : -70 to +3dBm Circuit Noise : 0 to 90 dBrnC DC Voltage : 300V Dimensions : 279 x 121 x 76 mm (11 x 4.75 x 3 in); 305 x 140 x 114 mm (12 x 5.5 x 4.5 in) (in soft case) Leakage : 1 G? at 150V Length : 0 to 5,000 nF (5 æF) Loop Current : 110 mA Power : Li-ion battery Power Influence : 30 - 100 dBrnC (-60 to +20 dBm) Replacement Part : Accessories - cordsets, carry case, PSU, in-vehicle charger 12 V lead Resistance : 100M? StorageOperatingTemperature : Operates at 0 to 120ø F (-18 to 50øC) Stress Test : 0 to 82 dBrnC Type : Telecommunications test equipment Voltage Measurement : TNV-3 Weight : 1.8 kg (4 lbs) (includes Li-ion battery pack, soft case, and test leads)
CAT #: 1157-5012 UPC #: 783310041979 /52070010 Products > Telco Instruments > GENERAL TEST > SideKick Plus > SIDEKICK PLUS, WIDEBAND & BONDED, LCC
