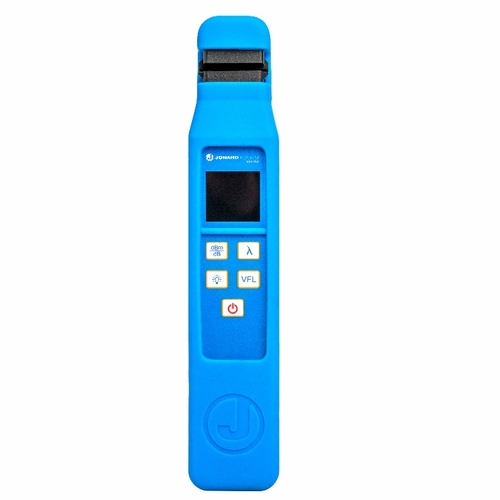

JONARD OFI-100 Advanced Optical Fiber Identifier WITH OPM AND VFL 810053351529
Available*
Item # 55405580
Model # OFI-100
$699.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Identifier
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

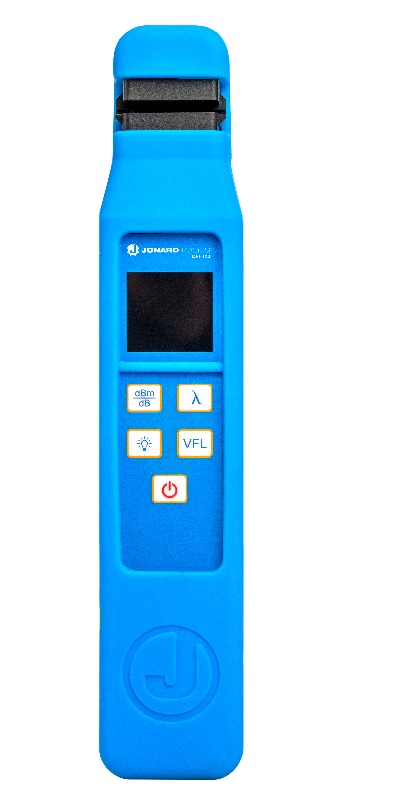

JONARD OFI-100 Advanced Optical Fiber Identifier 810053351529
JONARD OFI-100 Advanced Optical Fiber Identifier 810053351529
Advanced Optical Fiber Identifier w/ Power Meter & VFL Designed to quickly identify the direction of light being transmitted in the fiber and display the relative core power without damaging the fiber. This fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network and includes a built-in VFL and Power Meter for convenience. This fiber identifier also features the following:
Efficiently identifies the traffic direction and frequency (270Hz, 1KHz, 2KHz) with an audible warning LCD clearly displays the relative core power, signal direction, and battery life Reversible adapter has one side for 2 mm and 3 mm fiber optic cables, and the opposite side is used for 250 µm and 900µm fiber Built-in VFL allows you to find faults in fiber cables quickly and easily
Built-in Power Meter can be used to measure power using 850, 1300, 1310, 1490, 1550, and 1625 nm wavelengths
Protective rubber sleeve prevents damage from accidental drops
Kit Includes: Advanced Fiber Identifier Adapter for 2.0/3.0 mm & 250/900 nm fibers (2) AA Batteries Carrying pouch
Specifications Identified Wavelength Range 800-1700 nm
Identified Signal Type CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type Ø1mm InGaAs
Adapter Type Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0
Signal Direction Color Display
Signal Direction Test Range -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
Signal Frequency Display 270 Hz, 1 kHz, 2 kHz
Insertion Loss 1.0 dB (Ø0.25 & Ø0.9), 1.5 dB (Ø2.0 & Ø3.0)
Battery Type (2) AA
Dimensions 9 in x 1 in x 1 in (22.86 cm x 2.54 cm x 2.54 cm)
Weight 0.59 lb (267.86 g)
UPC # 810053351529
