MCLEAN J8153 5/8 x 14 ANGLED THIMBLEYE BOLT
Available*
Item # 54969975
Model # J8153
$6.83
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Bolt
Material and Supplies
Hardware- Screws- Bolts
Bolts and Screws
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
MCLEAN J8153 5/8 x 14 ANGLED THIMBLEYE BOLT NEW

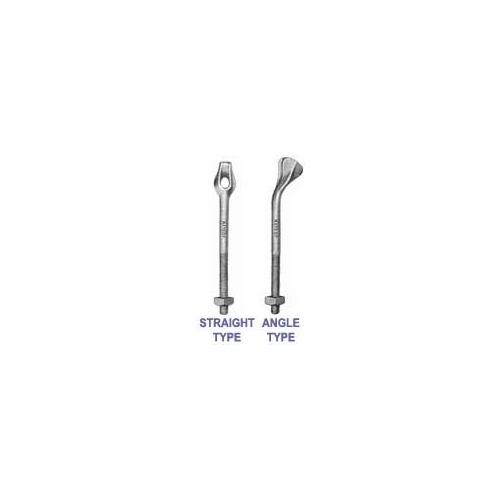

Thimbleye® bolts are forged in two styles , straight and bent at a 45° angle. The broad radius of the eye provides an excellent attachment point to deadend or guy messenger wire, guy strand or formed wire grips. Thimbleye® bolts eliminate the need for thimbles, shackles, links and guy hooks. Minimum ultimate tensile strength for 5/8" diameter bolts is 13,550 pounds and the 3/4" diameter bolts minimum tensile strength is 20,050 pounds.
Material: Hot Dip Galvanized
Angle Type
Catalog Number J8153
Bolt Diameter (Inches) 5/8"
Bolt Length 'L' (Inches) 14"
Thread Length 'T' (Inches) 6"
Weight/100 (lbs) 184
Thimbleye® bolts are forged in two styles , straight and bent at a 45° angle. The broad radius of the eye provides an excellent attachment point to deadend or guy messenger wire, guy strand or formed wire grips. Thimbleye® bolts eliminate the need for thimbles, shackles, links and guy hooks. Minimum ultimate tensile strength for 5/8" diameter bolts is 13,550 pounds and the 3/4" diameter bolts minimum tensile strength is 20,050 pounds.
Material: Hot Dip Galvanized
Angle Type
Catalog Number J8153
Bolt Diameter (Inches) 5/8"
Bolt Length 'L' (Inches) 14"
Thread Length 'T' (Inches) 6"
Weight/100 (lbs) 184
