Hubbell 29988 3/4 Inch X18 Inch Ovaleye Bolt (Minimum Order 25) New
Hubbell 29988 3/4 Inch X18 Inch
Ovaleye Bolt (Minimum Order 25) New
Item # 29988

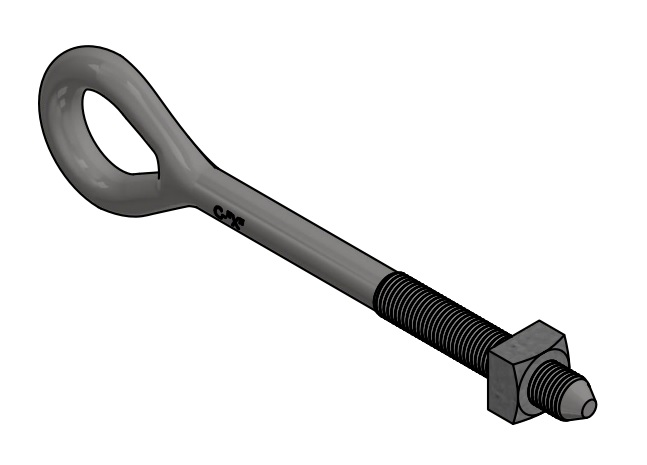

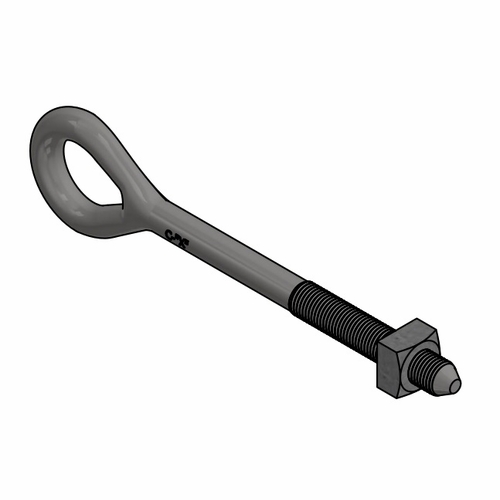

Hubbell 3/4 Inch X18 Inch Ovaleye Bolt (Minimum Order 25)
Upc: 096359070061
Ovaleye Bolts Are Used To Support Suspension Insulators In Deadend Applications.
Hardware For Deadending Conductor And Guy Wires, Offered By The Hubbell-Chance Brand, Consist Of Thimbleye� And Ovaleye Bolts, Banding, Eyenuts And Eyelets, Guy Attachments And Guy Markers. All Products Are Designed And Manufactured In Compliance With Applicable Electric Utility And Communications Industry Standards.
6" Thread Length
Includes One Square Nut
Eye Dimensions Are 5/8" X 1 1/2" X 2"
Rated Tensile Strength Is 20,050 Lbs.
Galvanized Steel Per Astm A-153
Rus Listed O - Bolt, Eye, Oval
Dimensions
Diameter 0.75 In
Diameter (Fraction) 3/4 In
Dimensions 22.000 In X 3.000 In X 1.125 In
Distance From Pole N/A
Height 1.125 In
Length 22 In
Length - Threaded Area 6 In
Weight 2.81 Lb
Width 3 InRead More
