GMP 74108 BOLT CABLE EXT TYPE C 3/4 inch V*
Available*
Item # 54959600
Model # 74108
$33.28
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Bolts
Material and Supplies
Hardware- Screws- Bolts
Bolts and Screws
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

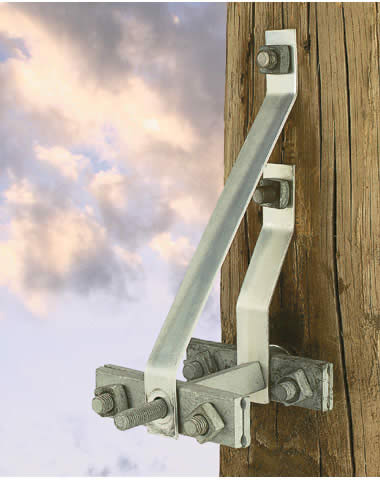

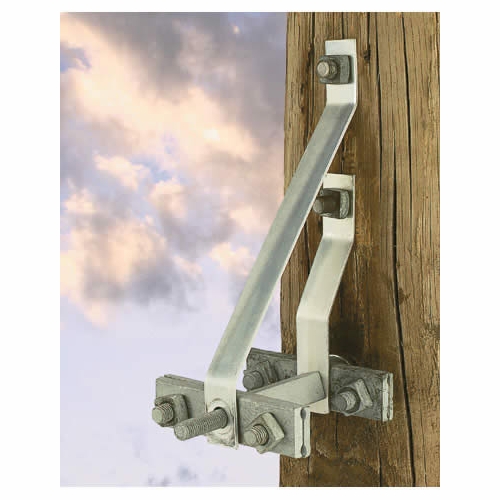

GENERAL MACHINE PRODUCTS 74108 BOLT CABLE EXT TYPE C 3/4" V* NEW Reduce your pole space requirements and installation labor demands with GENERAL MACHINE PRODUCTS 's Extension Bolts and Reinforcing Straps.
These versatile, galvanized steel bolts let you place a second messenger at the same level and on the same side of a pole as an existing messenger
Each bolt attaches to the threaded end of a suspension bolt already in the pole
We offer bolts in two thread sizes: 5/8 in.-11 and 3/4 in.-10. Both are available in 7 in. (178 mm) overall length which yields a 4 in. (101 mm) offset extension.
The 5/8 in.-11 size is also offered in an 11 in. (279 mm) length which gives an extension of 8 in. (203 mm). The longer bolt makes it easier to lash as the lasher works near the pole. Installation is easy.
Just remove the nut on the existing cable suspension bolt and replace it with the open end of an Extension Bolt. The new bolt then works like a normal suspension bolt, with the suspension clamp, strand and cable attached normally. You then attach one of our two (2) matching Reinforcing Straps to the pole and outside of the suspension clamp to support the outer end of the bolt and cable. This will also reinforce the cable suspension clamps during either inward or outward pulls.
Extension Bolts Ordering Information P/N Description Weight
--------------------------------------------------------------------------------
74109 7 in. (178 mm) Overall Length for use with 5/8 in.-11 Suspension Bolts 1.2 lbs. (.54 kg)
74108 7 in. (178 mm) Overall Length for use with 3/4 in.-10 Suspension Bolts 1.4 lbs. (.64 kg)
70212 11 in. (279 mm) Overall Length for use with 5/8 in.-11 Suspension Bolts 2 lbs. (.91 kg)
Reinforcing Straps Ordering Information P/N Description Weight
--------------------------------------------------------------------------------
74111 1-3/8 in. (35 mm) Wide Strap to be used with 74109 10 oz. (.28 kg)
74110 2 in. (51 mm) Wide Strap to be used with 74108 1 lbs. (.45 kg)
70213 1-3/8 in. (35 mm) Wide Strap to be used with 70212 10 oz. (.28 kg)
These versatile, galvanized steel bolts let you place a second messenger at the same level and on the same side of a pole as an existing messenger
Each bolt attaches to the threaded end of a suspension bolt already in the pole
We offer bolts in two thread sizes: 5/8 in.-11 and 3/4 in.-10. Both are available in 7 in. (178 mm) overall length which yields a 4 in. (101 mm) offset extension.
The 5/8 in.-11 size is also offered in an 11 in. (279 mm) length which gives an extension of 8 in. (203 mm). The longer bolt makes it easier to lash as the lasher works near the pole. Installation is easy.
Just remove the nut on the existing cable suspension bolt and replace it with the open end of an Extension Bolt. The new bolt then works like a normal suspension bolt, with the suspension clamp, strand and cable attached normally. You then attach one of our two (2) matching Reinforcing Straps to the pole and outside of the suspension clamp to support the outer end of the bolt and cable. This will also reinforce the cable suspension clamps during either inward or outward pulls.
Extension Bolts Ordering Information P/N Description Weight
--------------------------------------------------------------------------------
74109 7 in. (178 mm) Overall Length for use with 5/8 in.-11 Suspension Bolts 1.2 lbs. (.54 kg)
74108 7 in. (178 mm) Overall Length for use with 3/4 in.-10 Suspension Bolts 1.4 lbs. (.64 kg)
70212 11 in. (279 mm) Overall Length for use with 5/8 in.-11 Suspension Bolts 2 lbs. (.91 kg)
Reinforcing Straps Ordering Information P/N Description Weight
--------------------------------------------------------------------------------
74111 1-3/8 in. (35 mm) Wide Strap to be used with 74109 10 oz. (.28 kg)
74110 2 in. (51 mm) Wide Strap to be used with 74108 1 lbs. (.45 kg)
70213 1-3/8 in. (35 mm) Wide Strap to be used with 70212 10 oz. (.28 kg)
