Product Description

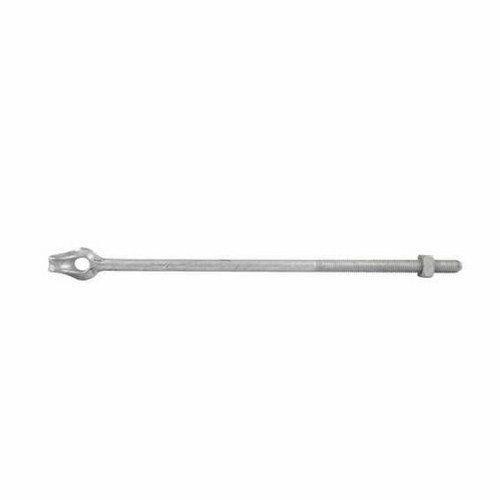

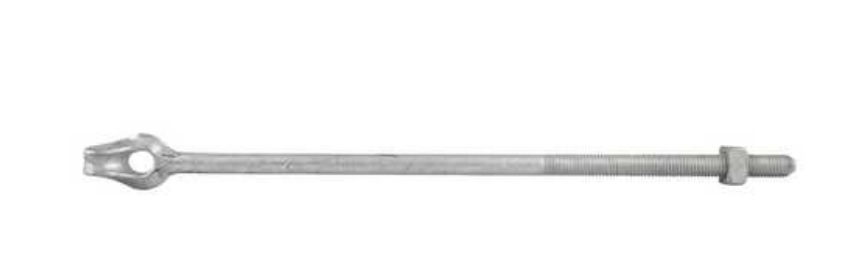

Hubbell 5516 5/8 X 16 Inch Thimbleye Bolt Straight 096359072720 New
Hubbell 5516 5/8 X 16 Inch Thimbleye Bolt
Straight 096359072720 New
Item # 5516
Hubbell 5/8 X 16 Inch Thimbleye Bolt Straight
Upc: 096359072720
Used In Deadend Applications With Loop-Type Attachments.
Hardware For Deadending Conductor And Guy Wires, Offered By The Hubbell-Chance Brand, Consist Of Thimbleye� And Ovaleye Bolts, Banding, Eyenuts And Eyelets, Guy Attachments And Guy Markers. All Products Are Designed And Manufactured In Compliance With Applicable Electric Utility And Communications Industry Standards.
6" Thread Length And Cone Pointed End
Includes One Square Nut
Internal Eye Dimensions Are 9/16" X 11/16"
Rated Tensile Strength Is 12,400 Lbs.
Hot Dip Galvanized Per Astm A-153
Rus Listed, Ao - Bolt, Strand Eye, Straight (Thimble Eye)
General
Catalog Number 5516
Coating Galvanized, Astm A-153
Material Steel
Tensile Strength 12400 Lb.
Type Thimbleye Bolts
Upc 096359072720
Dimensions
Diameter 0.63 In
Diameter (Fraction) 5/8 In
Dimensions 17.830 In X 1.500 In X 1.375 In
Distance From Pole N/A
Height 1.375 In
Length 17.83 In
Length - Threaded Area 6 In
Weight 1.88 Lb
Width 1.5 In
Logistics Pallet Quantity 1250Read More
