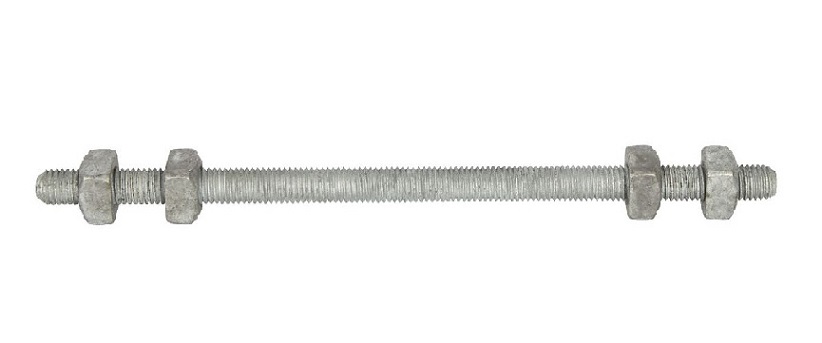

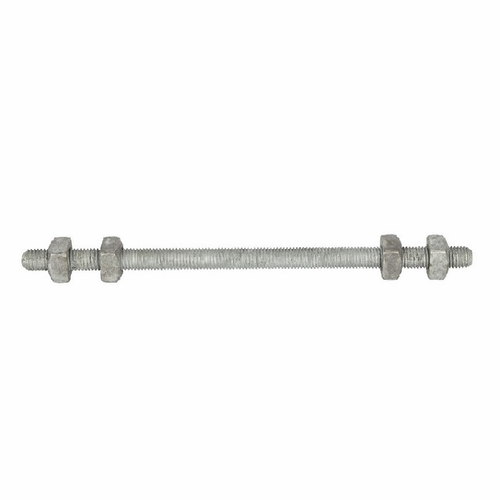

HUBBELL 8874 5/8 inch X 24 inch Double Arming Bolt 096359075745
Available*
Item # 54959575
Model # 8874
$5.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Bolt
Material and Supplies
Hardware- Screws- Bolts
Bolts and Screws
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL 8874 5/8 inch X 24 inch Double Arming Bolt 096359075745 NEW
HUBBELL 8874 5/8 inch X 24 inch Double Arming Bolt 096359075745 NEW
Item # 8874 HUBBELL 5/8 inch X 24 inch Double Arming Bolt UPC: 096359075745
Double-arming bolts are used in pairs to "unitize" two crossarms when line constructin requires the strength of double arm construction. Industry slang is D A Bolt.
Features Full-thread with cone pointed ends Includes four square nuts Rated tensile stength is 12,400 lbs. Galvanized per ASTM A-153 Manufactured in compliance with ANSI C135.1 and CAO 6645 RUS listed, n, Bolt, double-arming
General Catalog Number 8874 Coating Galvanized, ASTM A-153 Material Steel Tensile Strength 12400 lb. UPC 096359075745
Dimensions Diameter 0.63 in Diameter (Fraction) 5/8 in Dimensions 24.625 in x 1.125 in x 1.125 in Distance From Pole N/A Height 1.125 in Length 24.625 in Weight 2.23 lb Width 1.125 in
Certifications And Compliance Industry Standard(s) ANSI C135.1 RUS Listed Reference n - Bolt, double arming
Logistics Pallet Quantity 960
HUBBELL 8874 5/8 inch X 24 inch Double Arming Bolt 096359075745 NEW
Item # 8874 HUBBELL 5/8 inch X 24 inch Double Arming Bolt UPC: 096359075745
Double-arming bolts are used in pairs to "unitize" two crossarms when line constructin requires the strength of double arm construction. Industry slang is D A Bolt.
Features Full-thread with cone pointed ends Includes four square nuts Rated tensile stength is 12,400 lbs. Galvanized per ASTM A-153 Manufactured in compliance with ANSI C135.1 and CAO 6645 RUS listed, n, Bolt, double-arming
General Catalog Number 8874 Coating Galvanized, ASTM A-153 Material Steel Tensile Strength 12400 lb. UPC 096359075745
Dimensions Diameter 0.63 in Diameter (Fraction) 5/8 in Dimensions 24.625 in x 1.125 in x 1.125 in Distance From Pole N/A Height 1.125 in Length 24.625 in Weight 2.23 lb Width 1.125 in
Certifications And Compliance Industry Standard(s) ANSI C135.1 RUS Listed Reference n - Bolt, double arming
Logistics Pallet Quantity 960
