HUBBELL 8814 5/8 inch X 14 inch Through Machine Bolt Square Head with 1 Nut 096359075530
Available*
Item # 54959050
Model # 8814
$4.21
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Bolt
Material and Supplies
Hardware- Screws- Bolts
Bolts and Screws
Hubbell Power Systems
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HUBBELL 8814 5/8 inch X 14 inch Through Machine Bolt Square Head with 1 Nut 096359075530 NEW
HUBBELL 8814 5/8 inch X 14 inch Through Machine Bolt Square Head with 1 Nut 096359075530 NEW
Item # 8814 HUBBELL 5/8 inch X 14 inch Through Machine Bolt Square Head with 1 Nut UPC: 096359075530

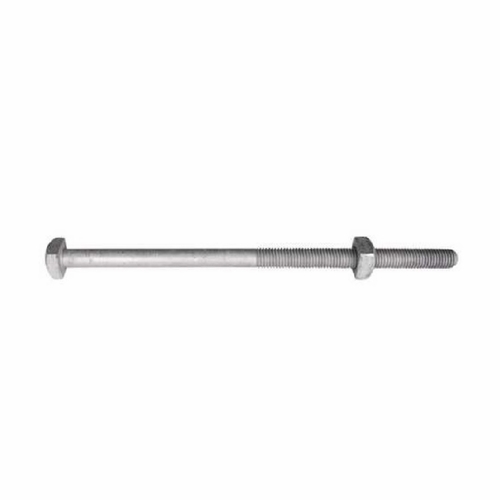

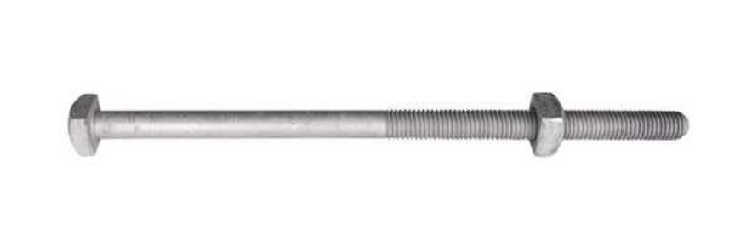

Square head machine bolt for utility pole and crossarm construction. Rated for 12,400 lbs. tensile strength. Includes one assembled square nut, cone point and 6" thread length. Common industry slang reference is crossarm bolt or through bolt.
Features Hot dip galvanized finish per ASTM A-153 Manufactured in compliance with industry standard ANSI/IEEE C135.1 RUS listed, c - Bolt, machine
General Catalog Number 8814 Coating Galvanized, ASTM A-153 Material Steel Tensile Strength 12400 lb. Type Machine Bolts UPC 096359075530
Dimensions Diameter 0.63 in Diameter (Fraction) 5/8 in Dimensions 14.625 in x 1.000 in x 1.000 in Distance From Pole N/A Height 1 in Length 14.625 in Length - Threaded Area 6 in Weight 1.21 lb Width 1 in
Certifications And Compliance Industry Standard(s) ANSI C135.1 RUS Listed Reference c - Bolt, machine
Logistics Pallet Quantity 1800
