Trend Networks R164005 FiberTEK-III-MM LED Kit UPC 783250775170
Trend Networks R164005 FiberTEK-III-MM LED Kit UPC 783250775170
OVERVIEW FiberTEK® III multimode (850/1300nm) kit with LED light sources for standard multimode fibre. 6.15 lbs
Compatible with all LanTEK II and LanTEK III models.

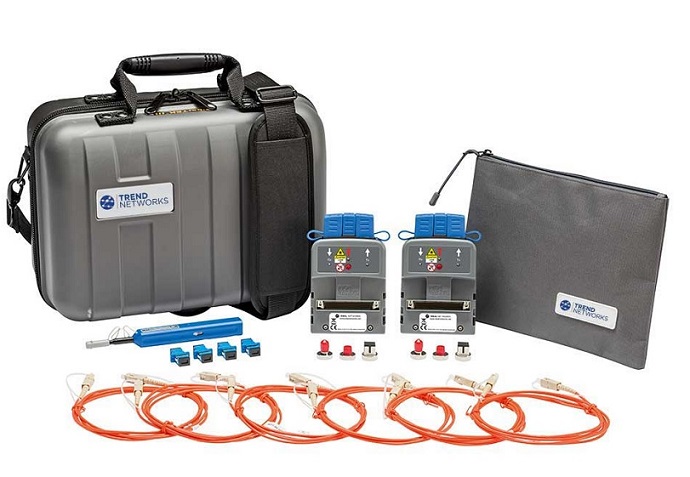

Kit Contents Includes two multimode FiberTEK III modules, lockable semi-rigid carrying case, SC, FC, ST adapters for modules (2 ea.), SC-SC patch cords, 6 x 50µm MMF compliant to ISO/IEC 14763-3 standard, quick reference guide.
Setup Wizard Select field calibration (1-Jumper|3-Jumper) and measurement modes (Loopback|Normal), (Uni-Directional|Bi-Directional)
Auto-test Perform auto-tests using the intuitive graphical interface to reduce mistakes and ensure accurate certification results.
Review Results Tier 1 certification results display:
ISO/TIA/IEEE test standard Pass/Fail result dB loss of each fibre at each wavelength dB loss in each direction (when testing bi-directionally) Fiber link length dB margin / headroom The main applications for FiberTEK III is the testing of fiber optic MM and SM cabling in LAN and campus applications. Its key feature is to measure attenuation and length of a fiber optic link. (also known as "Tier 1 Certification". The test can be carried out during installation as well as during fault finding:
Certifying cable performance to ISO 11801 and TIA 568-C standards Meet cabling specifications as required by engineers, designers and clients Provide proof of good workmanship when the client does not require certification tests Avoid call-backs by identifying faults while onsite Convert warranty call-backs into chargeable service calls Dispute resolution between network equipment/configuration versus cable installation
Installation of: building backbone cabling ("secondary cabling") inter building cabling and campus cabling (primary cabling) FTTD (Fibre To The Desk) cabling ("tertiary cabling") Cabling for building automation Cabling for industrial automation SAT cabling
