ILSINTECH TEK-1 All Inclusive MM & SM tester kit with 400X Microscope and Hand Held Fault Finder
Available*
Item # 53963800
Model # TEK-1
$3,699.54
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Loss Kit
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Light Source
Ilsintech Co Ltd
Fiber Laser Source
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

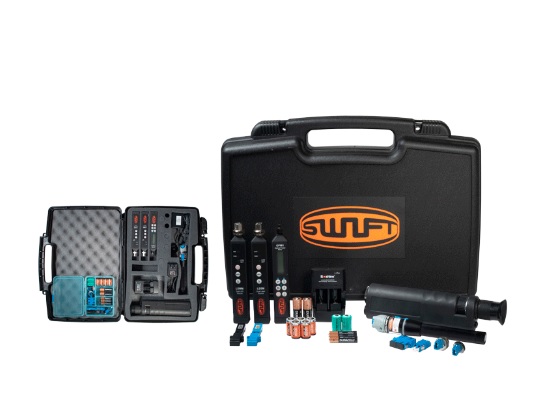

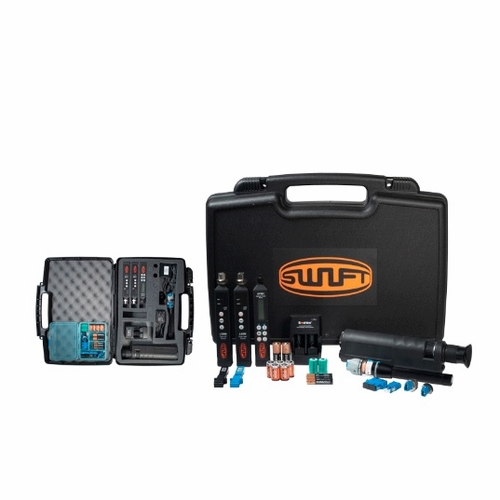

ILSINTECH TEK-1 All Inclusive MM & SM tester kit with 400X Microscope and Hand HeldFault Finder
ILSINTECH TEK-1 All Inclusive MM & SM tester kit with 400X Microscope and Hand HeldFault Finder
Item # TEK-1 ILSINTECH All Inclusive MM & SM tester kit with 400X Microscope and Hand HeldFault Finder
Contains:
1. OPM1 1 Optical power meter SC adapter multimode or singlemode testing (comes with USB to Mini B data port cable) batteries included
2. LSMM 1 LED light source, multimode, dual 850/1300nm, SC adapter (interchangeable), batteries included
3. LSSM 1 Laser light source, singlemode, dual 1310/1550nm, SC adapter (interchangeable), batteries included
4. CCT1 1 Carrying case for testers and accessories 17 inches X 12 inches X 4 inches
5. FOCP 2 LC duplex and SC duplex couplers for testing
6. RWB2 1 Recharger and 4 rechargeable CB2 batteries 7. PSD1 1 DC power supply for light sources 8. LSAL 1 LC light source adapter (interchangeable) 9. OPAL 1 Power meter adapter LC
10. LBTS 1 LC loopback for testing and calibration, singlemode blue, hard body, retractable door and lanyard
11. LBTM 1 LC loopback for testing and calibration, multimode black, hard body, retractable door and lanyard
12. VFF1 1 1mW (5km) pen shape visual fault finder with standard 2.5mm universal adapter and protective case for carrying on belt
13. VFA1 1 2.5mm to 1.25mm fiber optical adapter for visual fault finder
14. HFM1 1 400X handheld fiber optic inspection microscope with 2.5mm & 1.25mm adapters for LC/SC/ST/FC/MU connectors and protective carrying case
15. SSTI 1 SWIFT TRACK data testing documentation software (download from our website)
16. Multi-Box (tool set) Blue 1 Accessory storage case (holds spare batteries, couplers, adapters and lens)
17. BAA1 2 AA batteries 18. BAAA 3 AAA batteries 19. F201CCE01A1S3F 1 LC-LC/LC-SC 3 foot duplex jumper riser 2.0mm ZIP aqua OM4 20. F202CCC01Y1S3F 1 LC-LC/LC-SC 3 foot duplex jumper riser 2.0mm ZIP yellow OS2 21. F10121E01A1S3F 1 Simplex SC/LC 3 foot simplex jumper riser 2.0mm aqua OM4 22. F10222C01Y1S3F 1 Simplex SC/LC 3 foot simplex jumper riser 2.0mm yellow OS2 23. BPK-6 1 (6-pack) CR2 batteries non-rechargeable (orange in color)
