FHS2Q01F OPTICAL LASER SOURCE 850/1300/1310/1550NM FCUPC/SCUPC CONNECTOR LIGHT SOURCE
Available*
Item # 53489750
Model # FHS-2Q01F
$337.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Laser Sour
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Light Source
Schultz Communications Inc
Fiber Laser Source
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
FHS2Q01F OPTICAL LASER SOURCE 850/1300/1310/1550NM FCUPC/SCUPC CONNECTOR LIGHT SOURCE NEW
FHS2Q01F OPTICAL LASER SOURCE 850/1300/1310/1550NM FCUPC/SCUPC
FHS2Q01F laser source with FC/PC connectors SC/PC adapters (2 pcs) User manual 230Vac/6Vdc power adapter Carrying bag User manual

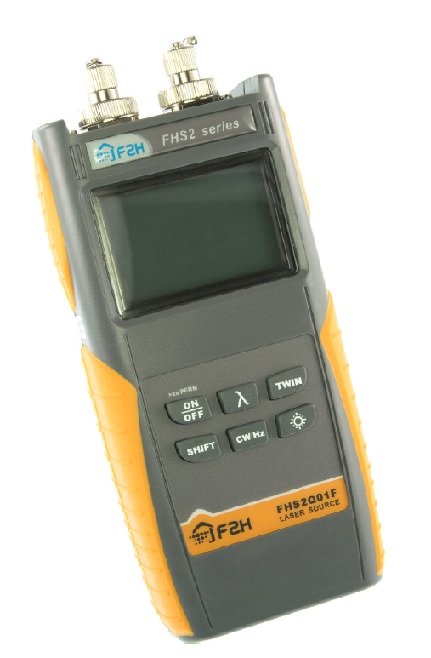

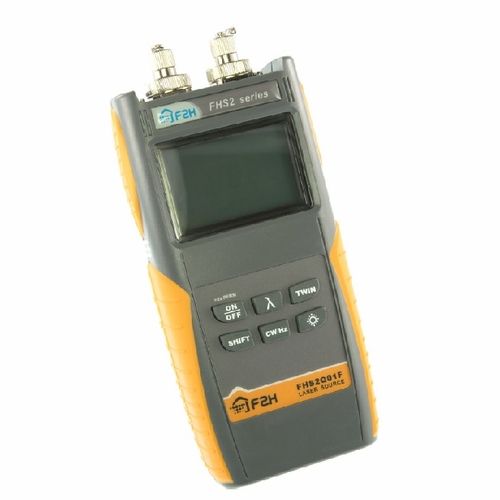

Grandway FHS2Q01F is a four-wavelength laser source that offers excellent stability and portability for fiber optic testing. Technicians can test both single mode and multi mode fibers with one handy device. FHS2Q01F is excellent at fiber installation and maintenance work.
Grandway FHS2Q01F sends 1310nm or 1550nm wavelength for single mode fiber testing and 850nm or 1300nm for multi mode fiber testing. Both modes have their dedicated outputs which can be controlled independently. Output level is fixed -5dBm for both outputs. Light can be either continuous wave (CW) mode or modulated mode, with modulation frequencies of 270Hz, 1kHz or 2kHz. Modulations can be used for fiber identification.
FHS2Q01F can also transmit digital wavelength identification signal, enabling e.g. the FHP2-series power meter to automatically use the correct calibration parameters. This feature reduces need for communication between the two technicians and decreases potential errors. LIGHT SOURCE NEW
Model # FHS2Q01F
FHS2Q01F OPTICAL LASER SOURCE 850/1300/1310/1550NM FCUPC/SCUPC
FHS2Q01F laser source with FC/PC connectors SC/PC adapters (2 pcs) User manual 230Vac/6Vdc power adapter Carrying bag User manual
Grandway FHS2Q01F is a four-wavelength laser source that offers excellent stability and portability for fiber optic testing. Technicians can test both single mode and multi mode fibers with one handy device. FHS2Q01F is excellent at fiber installation and maintenance work.
Grandway FHS2Q01F sends 1310nm or 1550nm wavelength for single mode fiber testing and 850nm or 1300nm for multi mode fiber testing. Both modes have their dedicated outputs which can be controlled independently. Output level is fixed -5dBm for both outputs. Light can be either continuous wave (CW) mode or modulated mode, with modulation frequencies of 270Hz, 1kHz or 2kHz. Modulations can be used for fiber identification.
FHS2Q01F can also transmit digital wavelength identification signal, enabling e.g. the FHP2-series power meter to automatically use the correct calibration parameters. This feature reduces need for communication between the two technicians and decreases potential errors. LIGHT SOURCE NEW
Model # FHS2Q01F
