OWL DO2sc Dual OWL MM SC (SC connectors) 850/1300 (No VFL)
Available*
Item # 53419730
Model # DO2sc
$389.81
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

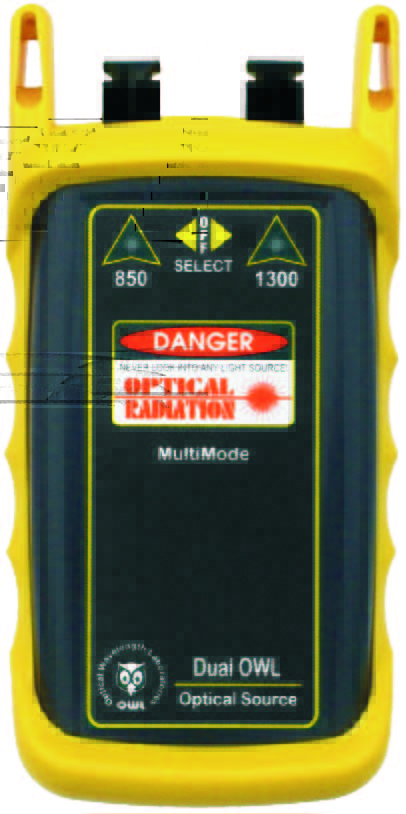

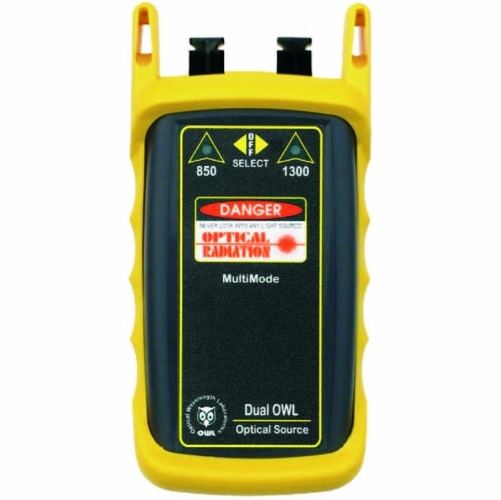

OWL OPTICAL WAVELENGTH LABORATORIES DO2sc Dual OWL OPTICAL WAVELENGTH LABORATORIES MM SC (SC connectors) 850/1300 (No VFL) NEW
FEATURES: Stable temperature compensated LED sources Contains both commonly used multimode wavelengths: 850 and 1300nm Available with either ST or SC fiber connectors (replace ‘xx’ at end of part number with ST or SC to specify connector type) Extended battery life - up to 30 hours on one 9v battery Combination selected source / Low battery indicator LEDs Simple two-button operation NIST traceable Very economically priced
APPLICATIONS: The Dual OWL OPTICAL WAVELENGTH LABORATORIES is a cost effective, compact, handheld light source. The temperature compensated outputs are calibrated to couple -20dBm of optical power into multimode fiber. The light source comes installed with the two most commonly used multimode wavelengths - 850nm and 1300nm. The source has an intuitive two-button interface - one button for turning the unit ON or OFF and the other for wavelength selection. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power. Dual OWL OPTICAL WAVELENGTH LABORATORIES series fiber optic light sources offer exceptional value at an economical price. These LED-based sources provide the fiber optic installer with a stable output when testing multimode fiber optic runs. The Dual OWL OPTICAL WAVELENGTH LABORATORIES combines an 850nm and a 1300nm LED into one light source to provide the widest range of options for multimode optical fiber testing. High intensity LEDs such as the ones in Dual OWL OPTICAL WAVELENGTH LABORATORIES light sources produce intense beams of infrared energy that are invisible to the eye.
FEATURES: Stable temperature compensated LED sources Contains both commonly used multimode wavelengths: 850 and 1300nm Available with either ST or SC fiber connectors (replace ‘xx’ at end of part number with ST or SC to specify connector type) Extended battery life - up to 30 hours on one 9v battery Combination selected source / Low battery indicator LEDs Simple two-button operation NIST traceable Very economically priced
APPLICATIONS: The Dual OWL OPTICAL WAVELENGTH LABORATORIES is a cost effective, compact, handheld light source. The temperature compensated outputs are calibrated to couple -20dBm of optical power into multimode fiber. The light source comes installed with the two most commonly used multimode wavelengths - 850nm and 1300nm. The source has an intuitive two-button interface - one button for turning the unit ON or OFF and the other for wavelength selection. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power. Dual OWL OPTICAL WAVELENGTH LABORATORIES series fiber optic light sources offer exceptional value at an economical price. These LED-based sources provide the fiber optic installer with a stable output when testing multimode fiber optic runs. The Dual OWL OPTICAL WAVELENGTH LABORATORIES combines an 850nm and a 1300nm LED into one light source to provide the widest range of options for multimode optical fiber testing. High intensity LEDs such as the ones in Dual OWL OPTICAL WAVELENGTH LABORATORIES light sources produce intense beams of infrared energy that are invisible to the eye.
