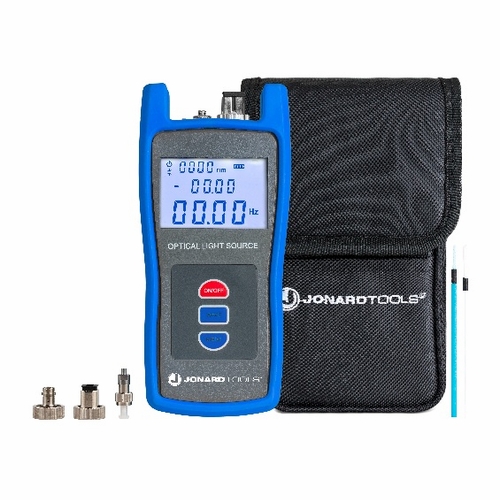

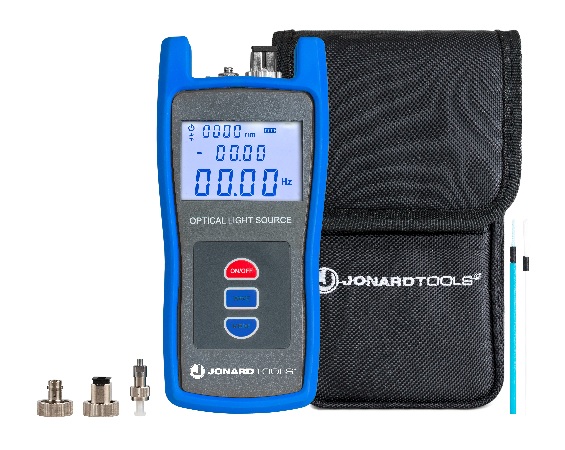

JONARD FLS-50 Fiber Optic Light Source with FC/SC/LC Adapters 811490018655
Available*
Item # 53293100
Model # FLS-50
$299.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Source
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Light Source
Jonard Industries Corp
Fiber Laser Source
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
JONARD FLS-50 Fiber Optic Light Source with FC/SC/LC Adapters 811490018655
Designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single mode fiber measurements. This optical light source features the following:
Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors Highly stable output power and wavelengths Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths Flush button design makes it easy to use and prevents dust from entering the unit Shatter-resistant sleeve protects the light source from falls or other damage Backlit LCD screen provides a clear display, ideal for dark places Includes:
Fiber Optic Light Source FC Adapter LC Adapter SC Adapter (2) Cleaning Swabs (3) AA Batteries (required for operation) Storage Pouch
Specifications Connector Types 1.25 mm LC and 2.5 mm FC/SC
Wavelengths (nm) 1310, 1550
Typical Output Power -7 dBm
Output Stability ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr
Operating Temperature -10 ± 60°C
Spectral Width = 10 nm
Modulation Frequencies CW / 270 Hz / 1 kHz / 2 kHz
Battery Type (3) AA 1.5V alkaline batteries
Storage Temperature -25 ± 70°C
Dimensions 7" x 3 3/16" x 1 1/4" (17.78 cm x 8.10 cm x 3.18 cm)
Weight 0.902 lb (409 g)
UPC # 811490018655
Auto-off can be turned off by short-pressing the power button after the device is turned on
Designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single mode fiber measurements. This optical light source features the following:
Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors Highly stable output power and wavelengths Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths Flush button design makes it easy to use and prevents dust from entering the unit Shatter-resistant sleeve protects the light source from falls or other damage Backlit LCD screen provides a clear display, ideal for dark places Includes:
Fiber Optic Light Source FC Adapter LC Adapter SC Adapter (2) Cleaning Swabs (3) AA Batteries (required for operation) Storage Pouch
Specifications Connector Types 1.25 mm LC and 2.5 mm FC/SC
Wavelengths (nm) 1310, 1550
Typical Output Power -7 dBm
Output Stability ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr
Operating Temperature -10 ± 60°C
Spectral Width = 10 nm
Modulation Frequencies CW / 270 Hz / 1 kHz / 2 kHz
Battery Type (3) AA 1.5V alkaline batteries
Storage Temperature -25 ± 70°C
Dimensions 7" x 3 3/16" x 1 1/4" (17.78 cm x 8.10 cm x 3.18 cm)
Weight 0.902 lb (409 g)
UPC # 811490018655
Auto-off can be turned off by short-pressing the power button after the device is turned on
