JONARD OFI-50 Optical Fiber Identifier 811490010901
Available*
Item # 53290250
Model # OFI-50
$559.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Identifier
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
Jonard Industries Corp
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

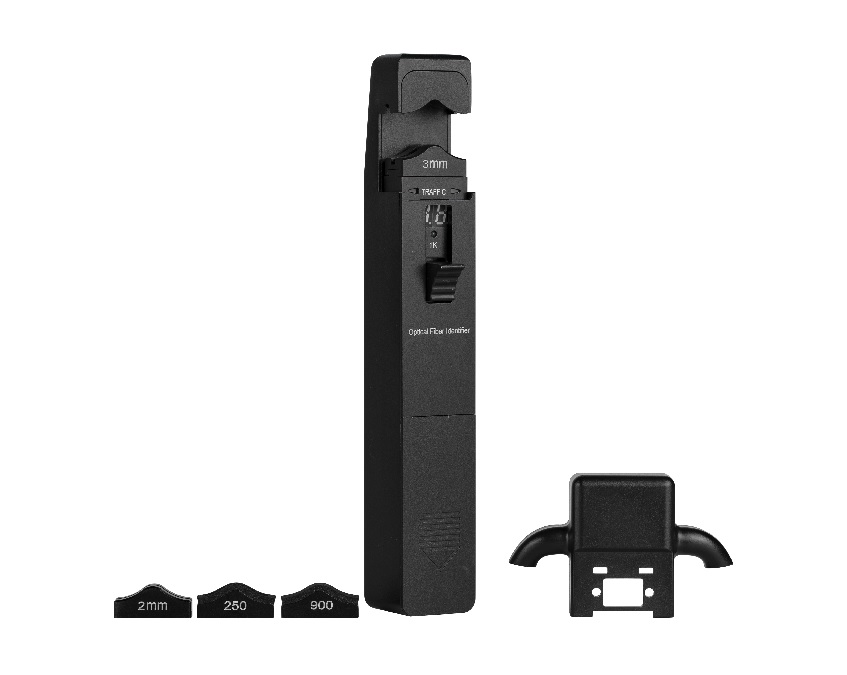

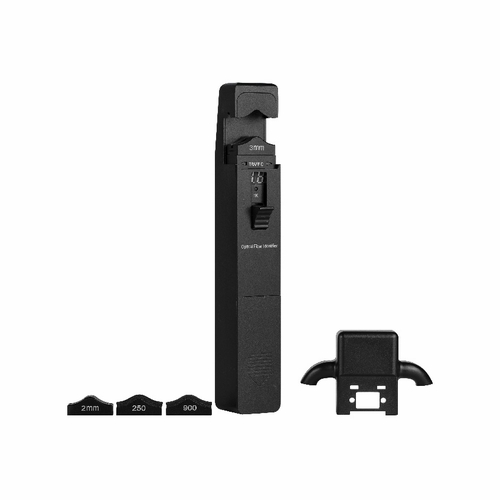

JONARD OFI-50 Optical Fiber Identifier 811490010901
Designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber, this fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network. This fiber identifier also features the following:
Easy-to-use one key operation Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning. The display shows you the relative core power clearly Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables Included sunshade protects the fiber optic cable from interference to provide more accurate readings Durable metal housing provides long life and durability LED indicator lets you know when the battery is running low Kit Includes:
Fiber Identifier 3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adapters Sunshade Carrying pouch
Specifications Identified Wavelength Range 800-1700 nm
Identified Signal Type CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type Ø1mm InGaAs 2pcs
Adapter Type Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0
Signal Direction Left & Right LED
Signal Direction Test Range -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
Signal Frequency Display 270 Hz, 1 kHz, 2 kHz
Insertion Loss 0.8 dB (1310nm), 2.5 dB (1550nm)
Battery Type 9V
UPC # 811490010901
Designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber, this fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network. This fiber identifier also features the following:
Easy-to-use one key operation Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning. The display shows you the relative core power clearly Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables Included sunshade protects the fiber optic cable from interference to provide more accurate readings Durable metal housing provides long life and durability LED indicator lets you know when the battery is running low Kit Includes:
Fiber Identifier 3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adapters Sunshade Carrying pouch
Specifications Identified Wavelength Range 800-1700 nm
Identified Signal Type CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type Ø1mm InGaAs 2pcs
Adapter Type Ø0.25 (Applicable for Bare Fiber), Ø0.9, Ø2.0 , and Ø3.0
Signal Direction Left & Right LED
Signal Direction Test Range -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
Signal Frequency Display 270 Hz, 1 kHz, 2 kHz
Insertion Loss 0.8 dB (1310nm), 2.5 dB (1550nm)
Battery Type 9V
UPC # 811490010901
