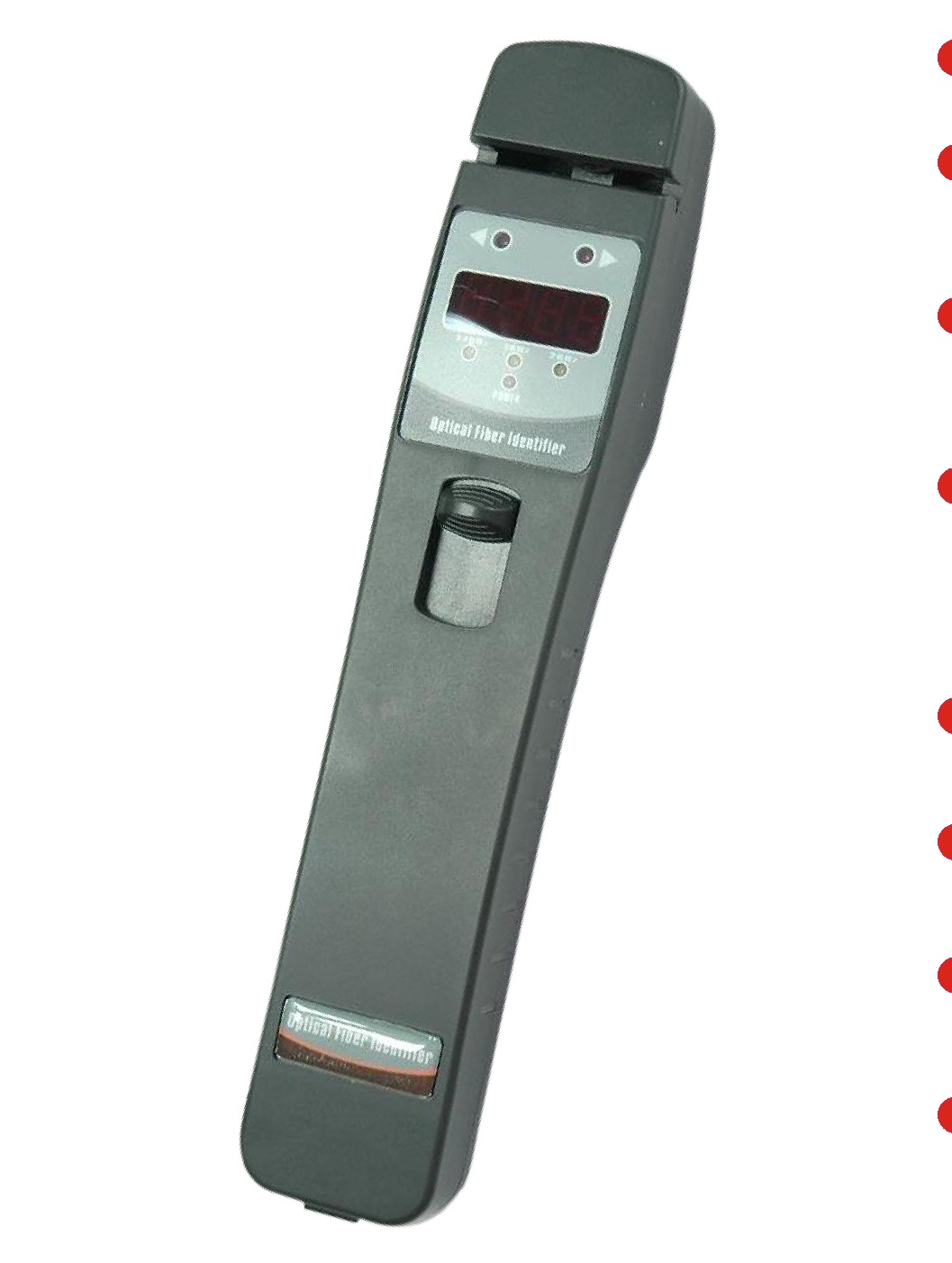

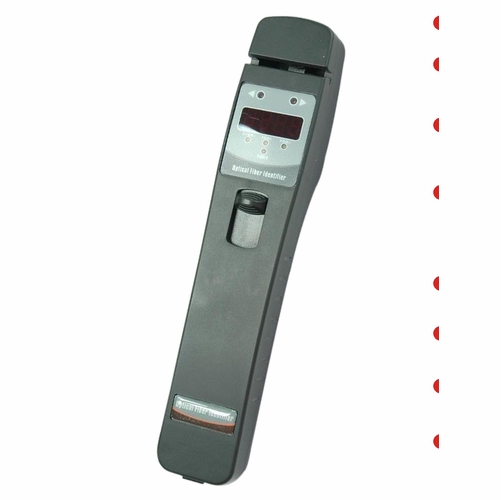

TRIBRER AFI420S LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE
Available*
Item # 53287950
Model # AFI420S
$393.75
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Identifier
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
Tribrer Best Sun Technology
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
TRIBRER AFI420S LIVE FIBER IDENTIFIER WITH LOSS ESTIMATE NEW AFI420S Fiber Optic Identifier live FIBER optical identifier Built in 1mw Visual Fault Locator
1) Support to detect optical signals without disrupting traffic;Based on non-destructive technology; 2) Indicate the signal direction in fiber;
3) Detect a variety of optical tones,270Hz, 1kHz and 2kHz;
4) Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block, more convenient than others;
5) Build in visible fault locator 1mW optional
6) Battery low indication;
7) Powered by 2 units of 1.5V AA alkaline batteries;
AFI 400 AFI420S AFI420L Wavelength Range 800 to 1700nm (SM) Recognizable signal type* CW, 2kHz, 1kHz, 270Hz ±10% Detector Type InGaAs 2pcs Fiber Type 0.9, 0.25, 2.0, 3.0 mm fiber Sensitivity +10 ~-50dBm Accuracy * +10dB to -30 dBm (Continuous Wave) +10dB to -25 dBm (Modulated Signal) LED Indicator Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery Visual Fault Locator No 1mW 10mW Storage Temperature -20 -- +60 °C, < 90%RH Operating Temperature -10 -- +50 °C, < 90%RH Power Supply AA * 2 Size 230mm * 45mm * 45mm Weight About 200g
* at 20±3°C, indoor, 1550nm wavelength, 0.9mm fiber, with white coat, 270Hz, error < 5%,
* 0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower
* 1KHz, 2KHz, the performance at modulated signal will be lower
* at 1310nm wavelength, the performance will be lower
Accessories
Standard User’s manual 1 Calibration certification 1
Carrying bag 1
1) Support to detect optical signals without disrupting traffic;Based on non-destructive technology; 2) Indicate the signal direction in fiber;
3) Detect a variety of optical tones,270Hz, 1kHz and 2kHz;
4) Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block, more convenient than others;
5) Build in visible fault locator 1mW optional
6) Battery low indication;
7) Powered by 2 units of 1.5V AA alkaline batteries;
AFI 400 AFI420S AFI420L Wavelength Range 800 to 1700nm (SM) Recognizable signal type* CW, 2kHz, 1kHz, 270Hz ±10% Detector Type InGaAs 2pcs Fiber Type 0.9, 0.25, 2.0, 3.0 mm fiber Sensitivity +10 ~-50dBm Accuracy * +10dB to -30 dBm (Continuous Wave) +10dB to -25 dBm (Modulated Signal) LED Indicator Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery Visual Fault Locator No 1mW 10mW Storage Temperature -20 -- +60 °C, < 90%RH Operating Temperature -10 -- +50 °C, < 90%RH Power Supply AA * 2 Size 230mm * 45mm * 45mm Weight About 200g
* at 20±3°C, indoor, 1550nm wavelength, 0.9mm fiber, with white coat, 270Hz, error < 5%,
* 0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower
* 1KHz, 2KHz, the performance at modulated signal will be lower
* at 1310nm wavelength, the performance will be lower
Accessories
Standard User’s manual 1 Calibration certification 1
Carrying bag 1
