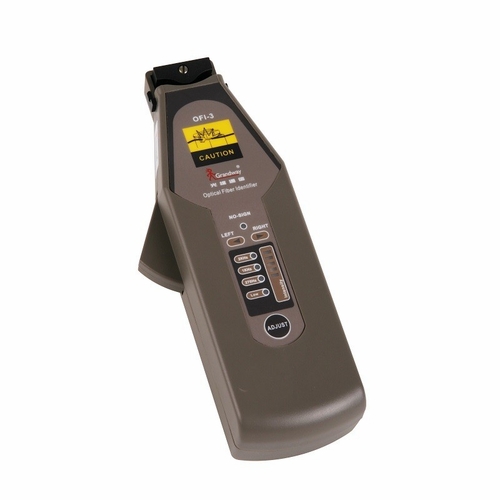

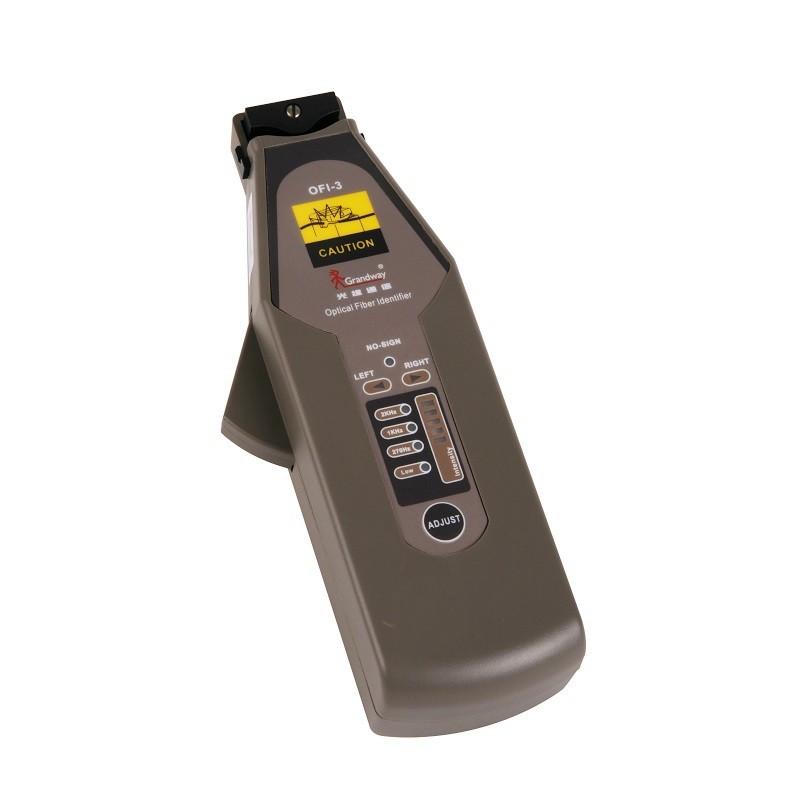

GRANDWAY OFI-3 OPTICAL FIBER IDENTIFIER
Available*
Item # 53287850
Model # OFI-3
$337.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Identifier
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Identifiers- VFL
Ruiyan Communications Equipment Co, Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GRANDWAY OFI-3 OPTICAL FIBER IDENTIFIER NEW The OFI-3 Optical Fiber Identifier is a low cost, portable instrument designed to detect optical signals without disrupting traffic. Based on non-destructie macrobending technology, the OFI-3 doesn't disrupt traffic, damage or oerstress the fiber, enabling efficient, accurate and reliable data acquisition. During maintenance, installations, rerouting or restorations, it's often necessary to isolate a specific fiber. By simply clamping the OFI-3 onto a fiber, the OFI will indicate if there is a signal, a modulated signal, or traffic and show signal direction.
Features: - Detect a variety of optical tones,270Hz,1kHz and 2kHz - Powered by 2 units of 1.5 AA alkaline batteries - RB0.25mm,RB0.9mm,RB3.0mm plungers available
Recognizable Wavelength Range 900 to 1650nm Recognizable signal type CW,2kHz,1kHz,270Hz±5% Detector Type InGaAs 2pcs Clamp Type H0.9/0.25 for bare fibers; H2.5 for jacketed fiber Sensitivity @1310nm +11dB to-20 dBm (Continuous Wave); +11dBto -10 dBm ( Modulated Signal) \ @1550nm +11dB to-30 dBm (Continuous Wave); +11dBto -18dBm ( Modulated Signal) \ LED Indicator Signal traffic;signal frequency(2kHz/1kHz/270Hz);signal intensity(5 grades);low battery Operating temperature -10 to +50? Storage temperature -20 to +70? Power Supply 1.5V AA batteries*2pcs Dimension(mm) 202L*62W*36H Weight(g) 270
Accessories Standard accessories Main Unit*1, quick user guide*1, AA rechargeable battery*2, carrying case*1, Fiber Adapter kit(f0.25mm, f0.9mm, f0.3mm)
Features: - Detect a variety of optical tones,270Hz,1kHz and 2kHz - Powered by 2 units of 1.5 AA alkaline batteries - RB0.25mm,RB0.9mm,RB3.0mm plungers available
Recognizable Wavelength Range 900 to 1650nm Recognizable signal type CW,2kHz,1kHz,270Hz±5% Detector Type InGaAs 2pcs Clamp Type H0.9/0.25 for bare fibers; H2.5 for jacketed fiber Sensitivity @1310nm +11dB to-20 dBm (Continuous Wave); +11dBto -10 dBm ( Modulated Signal) \ @1550nm +11dB to-30 dBm (Continuous Wave); +11dBto -18dBm ( Modulated Signal) \ LED Indicator Signal traffic;signal frequency(2kHz/1kHz/270Hz);signal intensity(5 grades);low battery Operating temperature -10 to +50? Storage temperature -20 to +70? Power Supply 1.5V AA batteries*2pcs Dimension(mm) 202L*62W*36H Weight(g) 270
Accessories Standard accessories Main Unit*1, quick user guide*1, AA rechargeable battery*2, carrying case*1, Fiber Adapter kit(f0.25mm, f0.9mm, f0.3mm)
