Multilink 10-8365 4048-D Starfighter Dome Splice Enclosure (1splice tray included) Splice Closures
Available*
Item # 51295865
Model # 2361568
$364.42
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Closures
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Closure
Multilink
Fiber Closure Accessories
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

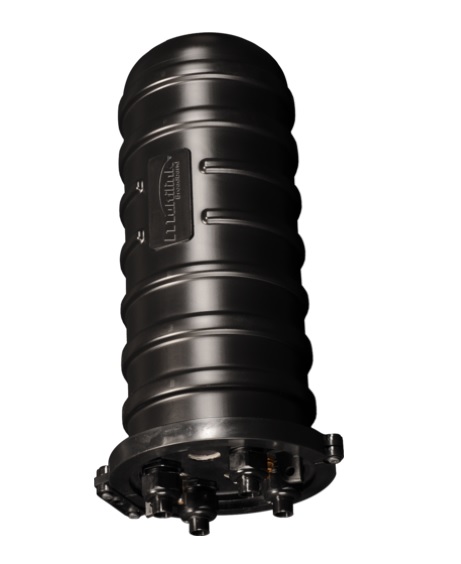

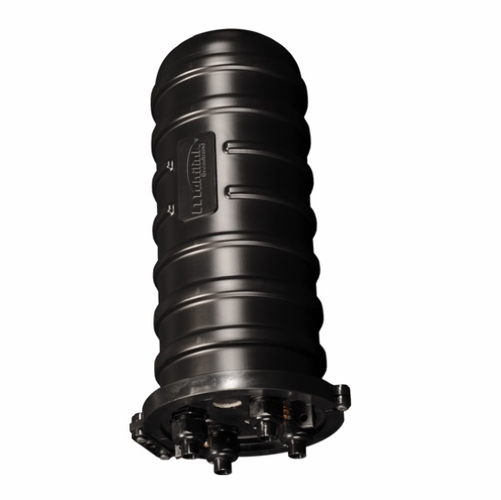

Multilink 10-8365 4048-D Starfighter Dome Splice Enclosure (1splice tray included) Splice Closures
Multilink 10-8365 4048-D Starfighter Dome Splice Enclosure (1splice tray included) Splice Closures
The 4048D is a medium capacity closure that can be used in aerial, pedestal, and underground applications,
Dimensions: 19.29" L x 8.5" Dia.
Cable Entry: (2) Express/Feeder (4) Branch or Lateral Capacity: (4) 4048-SSTP Splice Trays (6) Cables (96) Single Splices OR (192) Ribbon Splices
Express Dia: Max .75" (19mm) | Min .30" (7.62mm)
Branch Dia: Max .63" (16mm) | Min .27" (6.9mm)
Weight: 7.5 lbs. (3.4kg)
Material: Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene
Safety Standards: UL 1863 Certifed to IEC60950 IP66 Designed to GR-771
Multilink 10-8365 4048-D Starfighter Dome Splice Enclosure (1splice tray included) Splice Closures
The 4048D is a medium capacity closure that can be used in aerial, pedestal, and underground applications,
Dimensions: 19.29" L x 8.5" Dia.
Cable Entry: (2) Express/Feeder (4) Branch or Lateral Capacity: (4) 4048-SSTP Splice Trays (6) Cables (96) Single Splices OR (192) Ribbon Splices
Express Dia: Max .75" (19mm) | Min .30" (7.62mm)
Branch Dia: Max .63" (16mm) | Min .27" (6.9mm)
Weight: 7.5 lbs. (3.4kg)
Material: Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene
Safety Standards: UL 1863 Certifed to IEC60950 IP66 Designed to GR-771
