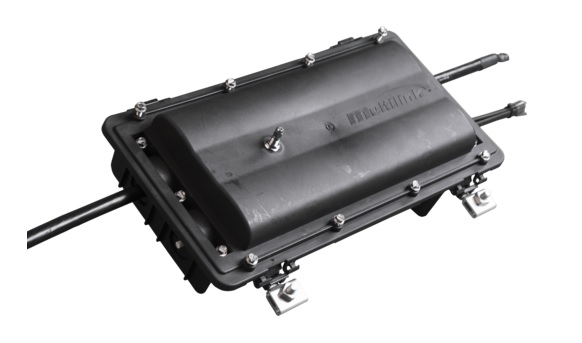

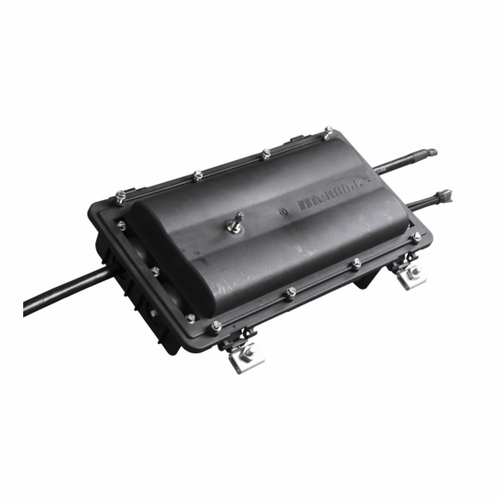

Multilink 020-234-10 Single InLine Fiber Optic Splice Enclosure Splice Closures
Available*
Item # 51295490
Model # 020-234-10
$226.13
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Closures
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Closure
Multilink
Fiber Closure Accessories
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 020-234-10 Single InLine Fiber Optic Splice Enclosure Splice Closures
Multilink 020-234-10 Single InLine Fiber Optic Splice Enclosure Splice Closures
SFX-0 | Fiber Optic Enclosure 020-234-10 The Starfighter Xpress comes from a heritage of proven and established in-line splice enclosures that are tested in accordance to Telcordia GR-771-Core and Multilink’s Six Sigma standards. The Starfighter Xpress splice terminal closure is the choice for FTTX greenfield, brownfield and future fiber plant expansions. Its versatile design allows for field expansions from a standard 48 to 96 count splice capacity, or 96 to 192 ribbon fiber with the simple addition of merging an additional Starfighter Xpress base and cover that has a removable sealed window opening. The cover of each Starfighter Xpress can be interchangeable with a flat cover or a drop port cover. The Starfighter Xpress can be fitted in the field as well with a patch and splice kit that can hold up to 24 patch and splices per Starfighter Xpress enclosure. Additional drop capacity can be achieved through adding grommet inserts to the cable entry grommets end plate housing holders. There are over 18 grommet inserts to choose from. The drop port cover can be outfitted with Multilink’s Surelight™ SC/LC adapters and or the Scout adapters and Optitaps™. Multilink’s Starfighter Xpress has the ability to grow with the fast changing needs of your fiber plant.
General Specifications Patch Diameter Up to 1" Outdoor Connector Types Multilink Surelight NPT Compression Fittings
Fiber Specifications Cable Type Unarmored Armored
Connector Specifications Connector Type SC/UPC SC/APC LC/UPC LC/APC
Splice Tray Specifications Splice Capacity 48 - Splice Only 96 - Ribbon Splices Only 24 - Patch & Splice
Multilink 020-234-10 Single InLine Fiber Optic Splice Enclosure Splice Closures
SFX-0 | Fiber Optic Enclosure 020-234-10 The Starfighter Xpress comes from a heritage of proven and established in-line splice enclosures that are tested in accordance to Telcordia GR-771-Core and Multilink’s Six Sigma standards. The Starfighter Xpress splice terminal closure is the choice for FTTX greenfield, brownfield and future fiber plant expansions. Its versatile design allows for field expansions from a standard 48 to 96 count splice capacity, or 96 to 192 ribbon fiber with the simple addition of merging an additional Starfighter Xpress base and cover that has a removable sealed window opening. The cover of each Starfighter Xpress can be interchangeable with a flat cover or a drop port cover. The Starfighter Xpress can be fitted in the field as well with a patch and splice kit that can hold up to 24 patch and splices per Starfighter Xpress enclosure. Additional drop capacity can be achieved through adding grommet inserts to the cable entry grommets end plate housing holders. There are over 18 grommet inserts to choose from. The drop port cover can be outfitted with Multilink’s Surelight™ SC/LC adapters and or the Scout adapters and Optitaps™. Multilink’s Starfighter Xpress has the ability to grow with the fast changing needs of your fiber plant.
General Specifications Patch Diameter Up to 1" Outdoor Connector Types Multilink Surelight NPT Compression Fittings
Fiber Specifications Cable Type Unarmored Armored
Connector Specifications Connector Type SC/UPC SC/APC LC/UPC LC/APC
Splice Tray Specifications Splice Capacity 48 - Splice Only 96 - Ribbon Splices Only 24 - Patch & Splice
