Multilink 020-059-10 4024-D Starfighter Dome Enclosure (1 1120-SSTP splice tray included) Splice Cl
Available*
Item # 51295905
Model # 020-059-10
$336.03
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Closures
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Closure
Multilink
Fiber Closure Accessories
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Multilink 020-059-10 4024-D Starfighter Dome Enclosure (1 1120-SSTP splice tray included) Splice Cl
Multilink 020-059-10 4024-D Starfighter Dome Enclosure (1 1120-SSTP splice tray included) Splice Closure

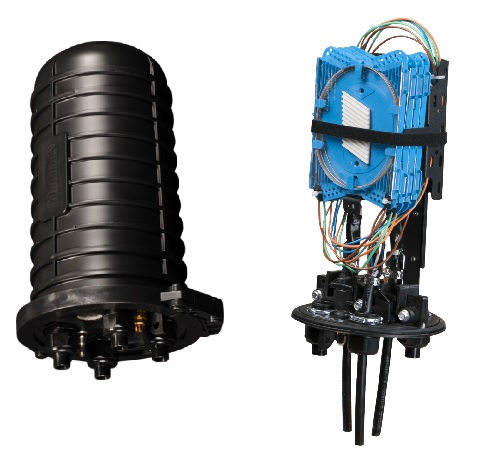

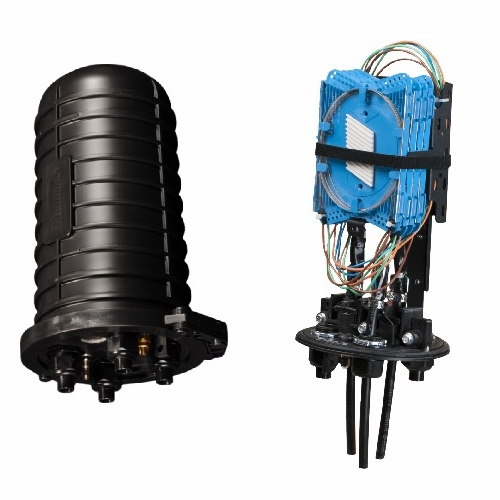

Starfighter 4024-D Dome Splice Enclosure 020-059-10 The Starfighter 4024-D Fiber Optic Dome is an "all parts" inclusive, hermetically-sealed splice enclosure designed for ease of assembly and re-entry in above and below grade applications. The enclosure features a gasketed split end plate for mid-span cable access applications and requires no special tools, adhesives or mastics for installation. All major hardware is factory installed to allow for quick field installation, while universal grommets and compression style lateral or branch cable seals make setup a breeze. The 4024-D is a small capacity enclosure that can be used in aerial, pedestal, underground, wall and strand applications.
General Specifications
Express/Feeder Cable Diameter Max .75" (19mm) Min .30" (7.62mm)
Branch/Lateral Cable Diameter .63" (16mm) .27" (6.9mm)
Cable Entrance (2) Express/Feeder/(4) Branch or Lateral
Exterior Dimensions Exterior Closure Diameter 8.5" Exterior Closure Length 15.3"
Physical Specifications Weight 6.5 lbs (3kg)
Material V-Band - Polycarbonate End Plates - Polypropylene Dome - Polypropylene
Splice Tray Specifications Splice Tray (4) 1120-SSTP Splice Capacity 48 Single Fusion 96 Dual Fusion
Safety Standard Specifications Safety Standard UL 1863 Certifed to IEC60950 IP66 Designed to GR-771
Multilink 020-059-10 4024-D Starfighter Dome Enclosure (1 1120-SSTP splice tray included) Splice Closure
Starfighter 4024-D Dome Splice Enclosure 020-059-10 The Starfighter 4024-D Fiber Optic Dome is an "all parts" inclusive, hermetically-sealed splice enclosure designed for ease of assembly and re-entry in above and below grade applications. The enclosure features a gasketed split end plate for mid-span cable access applications and requires no special tools, adhesives or mastics for installation. All major hardware is factory installed to allow for quick field installation, while universal grommets and compression style lateral or branch cable seals make setup a breeze. The 4024-D is a small capacity enclosure that can be used in aerial, pedestal, underground, wall and strand applications.
General Specifications
Express/Feeder Cable Diameter Max .75" (19mm) Min .30" (7.62mm)
Branch/Lateral Cable Diameter .63" (16mm) .27" (6.9mm)
Cable Entrance (2) Express/Feeder/(4) Branch or Lateral
Exterior Dimensions Exterior Closure Diameter 8.5" Exterior Closure Length 15.3"
Physical Specifications Weight 6.5 lbs (3kg)
Material V-Band - Polycarbonate End Plates - Polypropylene Dome - Polypropylene
Splice Tray Specifications Splice Tray (4) 1120-SSTP Splice Capacity 48 Single Fusion 96 Dual Fusion
Safety Standard Specifications Safety Standard UL 1863 Certifed to IEC60950 IP66 Designed to GR-771
